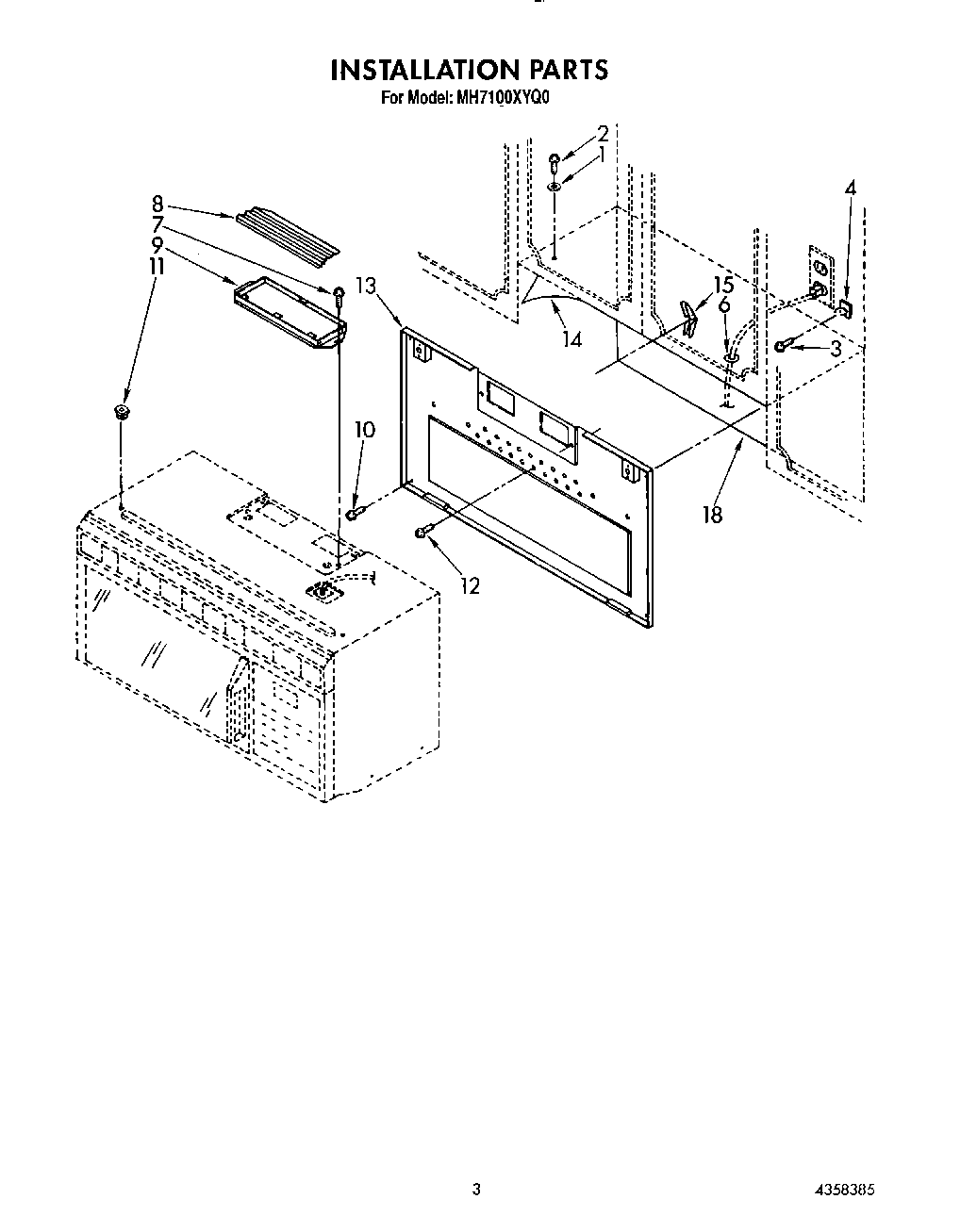

MH7100XYB0 03 – INSTALLATION

Products

Position	Product
1	Washer
2	Screw
3	WP98008545 Whirlpool Screw
4	8534021 Whirlpool Clamp
6	Bushing
7	Screw
8	Exhaust Damper
9	Exhaust Adapter
10	WP8169704 Whirlpool Screw
11	Top Cabinet Nut (2)
12	Lag Screw
13	Mounting Plate Assy.
14	Top Cabinet Template
15	Toggle Bolt
18	Wall Template
