MH7100XYQ0 07 – CAVITY AND STIRRER

MH7100XYQ0 07 – CAVITY AND STIRRER

Written by

in

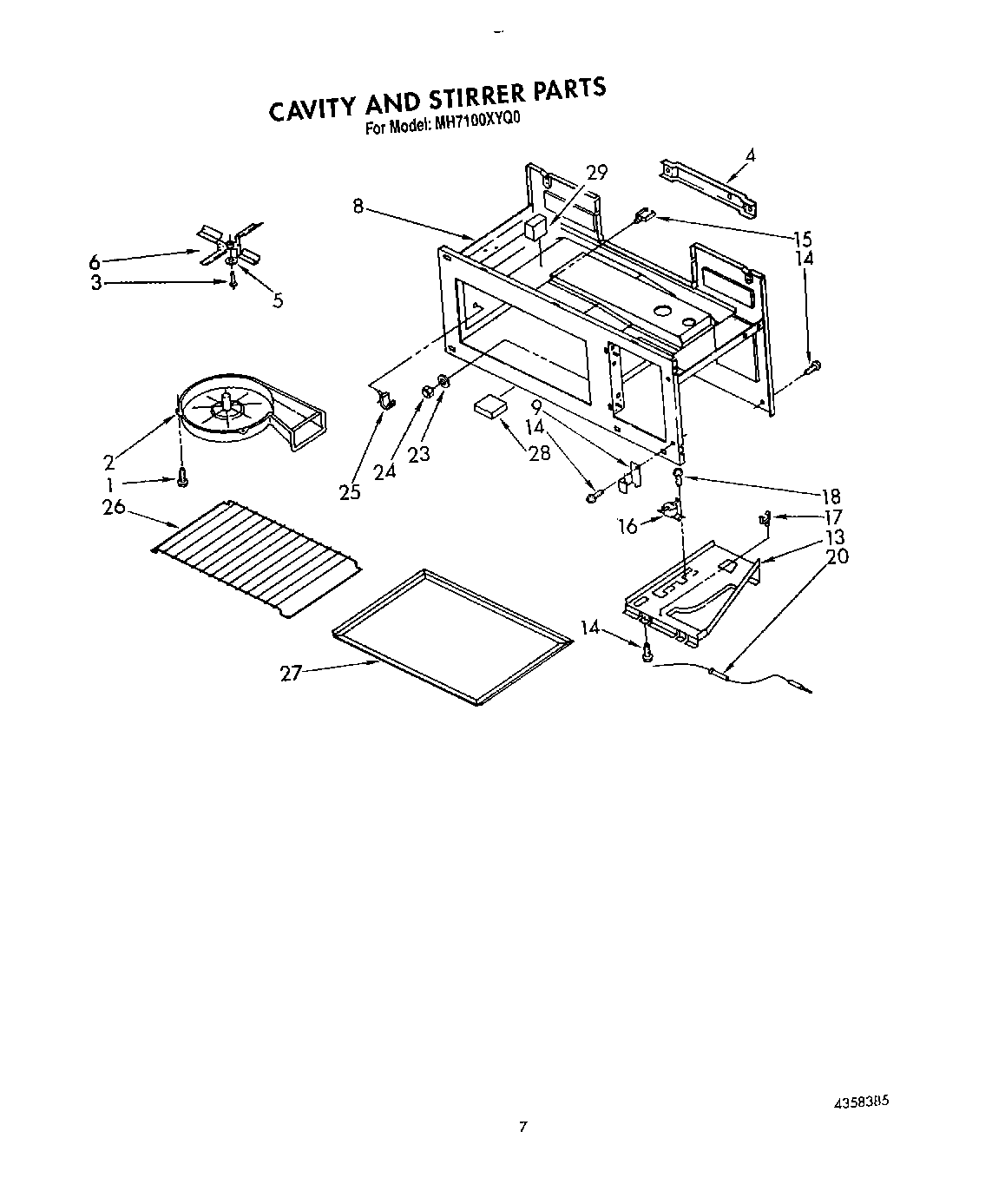

MH7100XYQ0 07 – CAVITY AND STIRRER

Products

PositionProduct
1WP3196557 Whirlpool Screw
2Stirrer Fan Cover
3Stirrer Fan Shaft
4Plate, Bridge
5Washer
6Stirrer Fan Assy.
8Oven Cavity (Not Serviceable)
9Cntl. Hinge Assy. (2)
13Bottom Plate
14W11380570 Whirlpool Microwave Screw
15Wire Holder (4)
16Base Thermostat
17Wire Holder (2)
18Screw
20Probe
23Washer
24Nut
25Shelf Holder
26Rack Assy.
27Ceramic Plate
28Seal, Cavity (Bottom)
29Seal, Cavity (Top)
