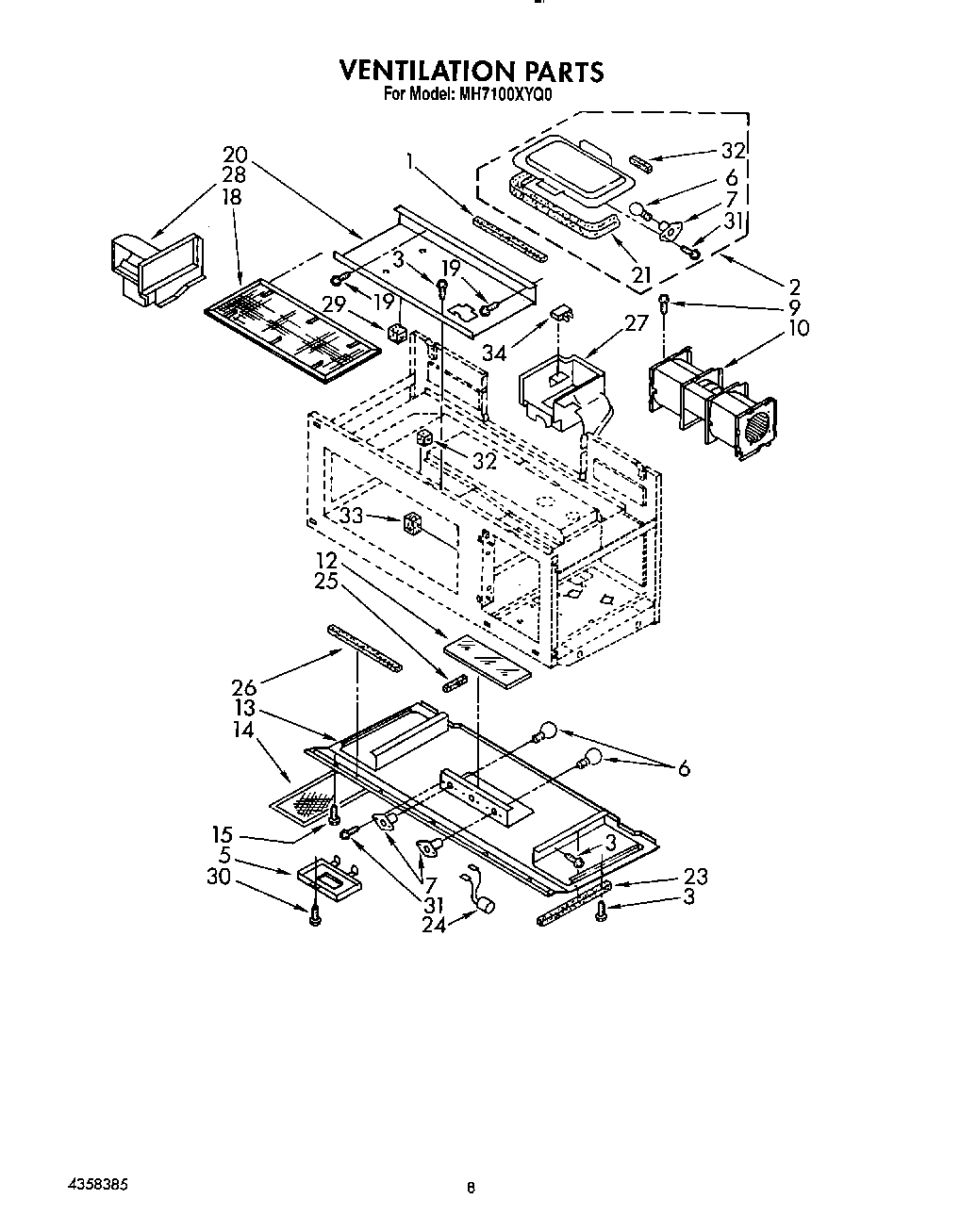

MH7100XYQ0 08 – VENTILATION

Products

Position	Product
1	Seal
2	Lamp Asm.
3	Screw
5	Oven Lamp Cover
6	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
7	Lamp Holder
9	Screw (2)
10	Ventilation Motor Asm.
12	Cooktop Lamp Glass
13	Base Plate
14	Air Filter (2)
15	Screw (3)
18	Charcoal Filter Assy.
19	Screw
20	Air Path (Front)
21	Seal
23	Seal
24	Wiring Harness
25	Seal, Lamp
26	Seal, Base
27	Duct, R.S.
28	Duct, L.S.
29	Cushion
30	W11380570 Whirlpool Microwave Screw
31	Screw
32	Seal, Lamp
33	Seal, Damper
34	Motor Condenser
