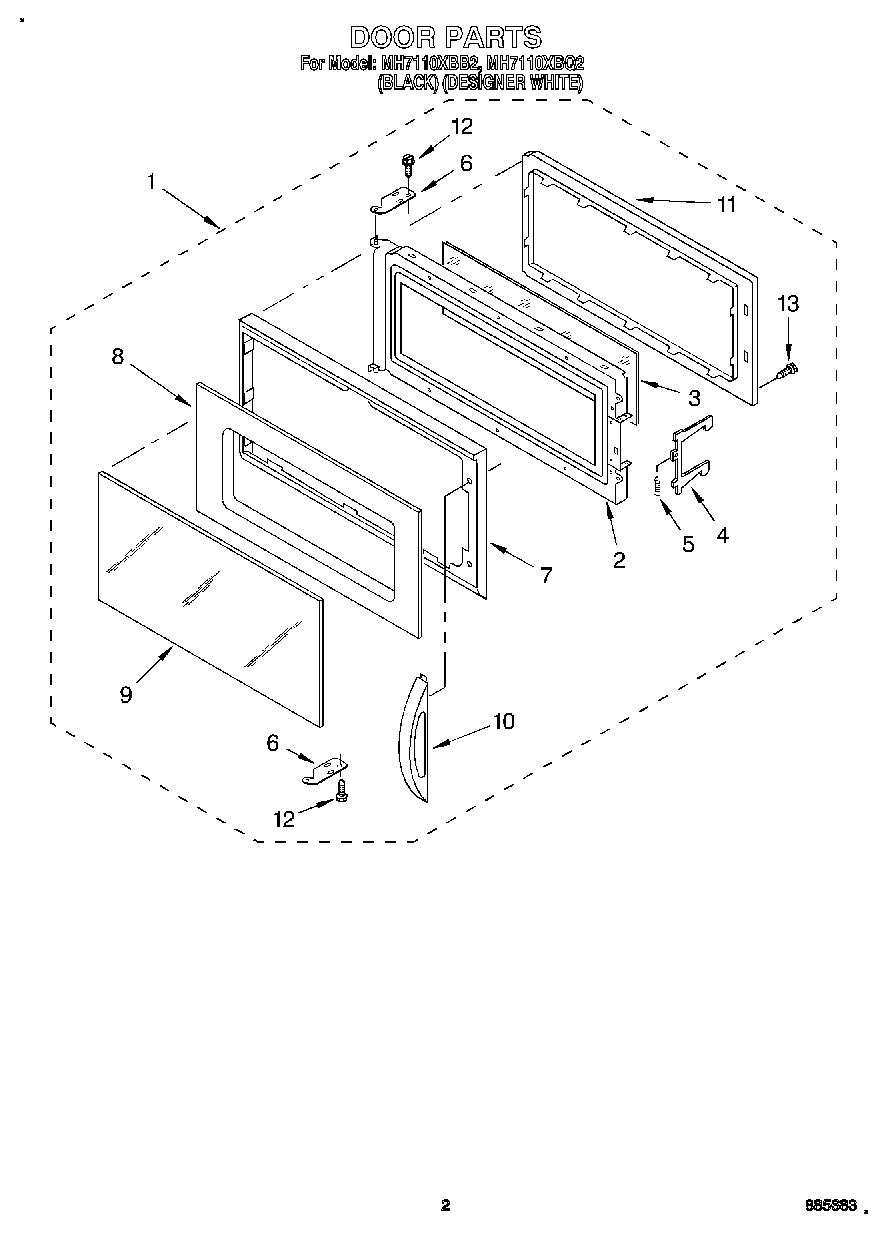

MH7110XBB2 02 – DOOR

Products

Position	Product
1	Door Assembly (Black Model)
1	Door Assembly (White Model)
2	Frame, Door (White Model)
2	Frame, Door (Black Model)
3	WPW10146437 Whirlpool Peel and Stick Door Film
4	Latch
5	Spring, Latch
6	Plate, Hinge
7	Panel, Door (Black Model)
7	Panel, Door (White Model)
8	Baffle, Door (White Model)
8	Baffle, Door (Black Model)
9	Glass, Door (Black Model)
9	Glass, Door (White Model)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
11	Choke Cover (White Model)
11	Choke Cover (Black Model)
12	Screw
13	Screw
