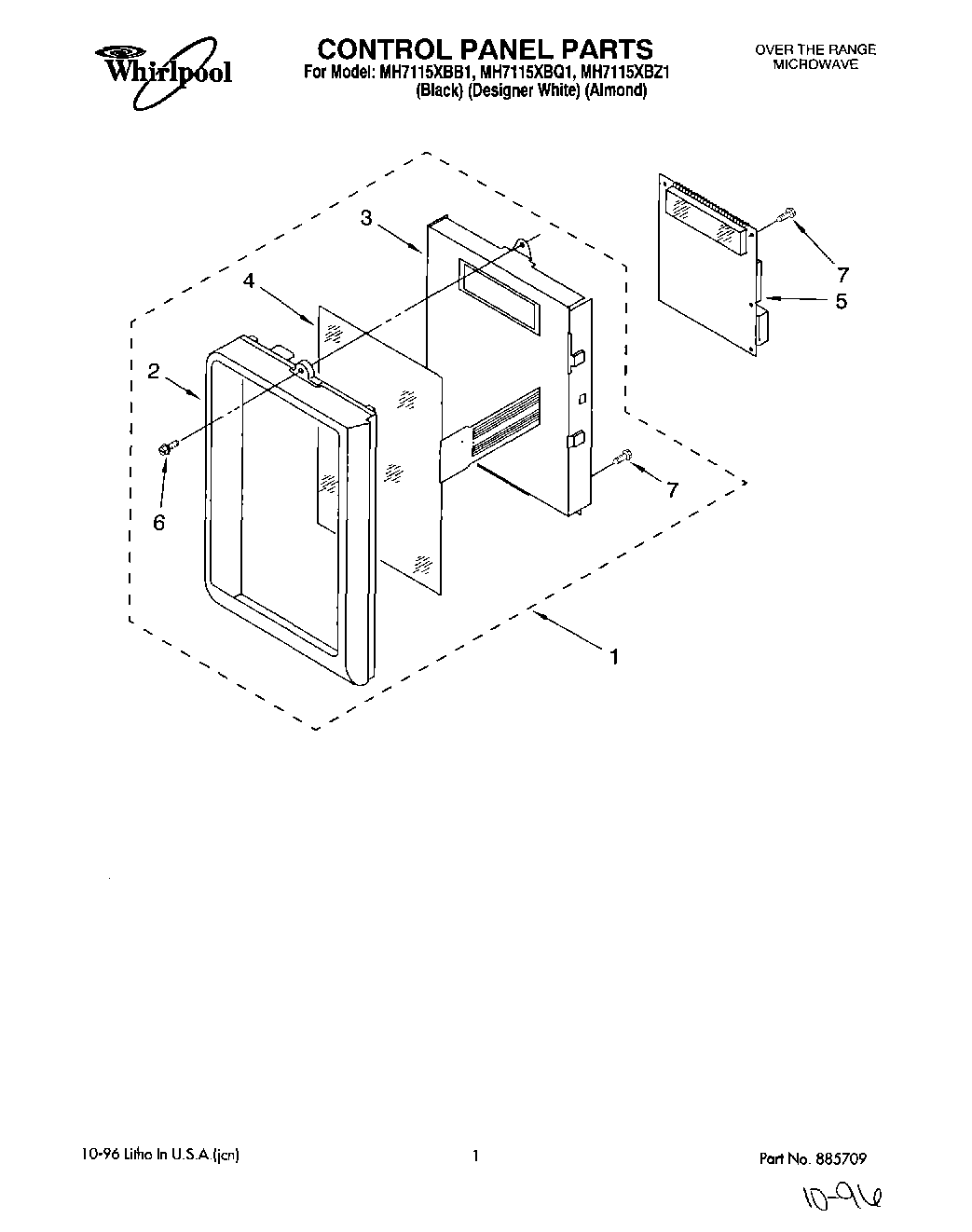

MH7115XBB1 01 – CONTROL PANEL

Products

Position	Product
1	Controller Sub Assy. (Almond Model)
1	Controller Sub Assy. (White Model)
1	Controller Sub Assy. (Black Model)
2	Control Panel (Black Model)
2	Control Panel (White Model)
2	Control Panel (Almond Model)
3	Bracket, Control
4	Key Membrane (Black Model)
4	Key Membrane (Almond Model)
4	Key Membrane (White Model)
5	PCB Sub Assy.
6	Screw
7	W11380570 Whirlpool Microwave Screw
