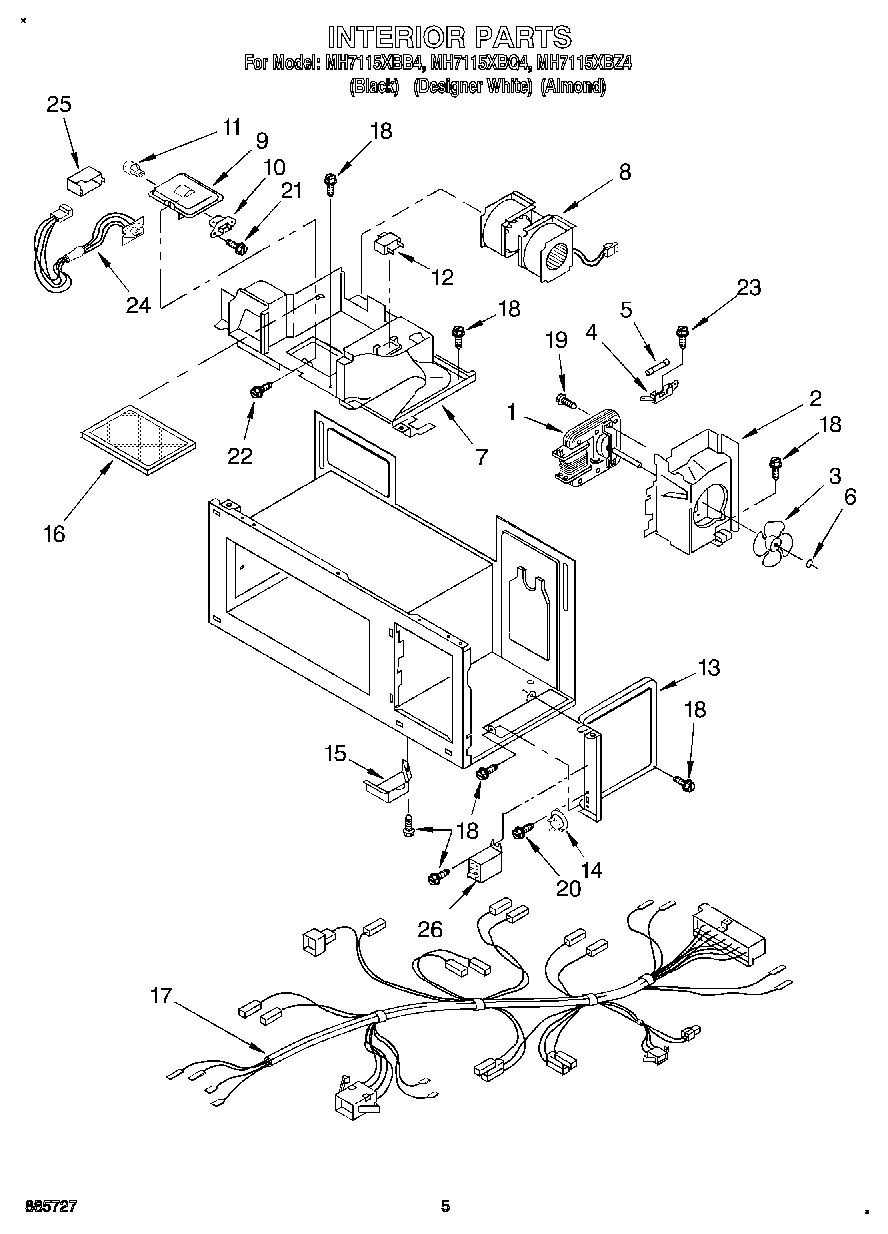

MH7115XBB4 05 – INTERIOR

Products

Position	Product
1	Motor, Fan
2	Guide Suction
3	Blower Fan
4	Holder, Fuse
5	Fuse
6	Push Nut
7	Air Duct
8	Motor, Ventilation
9	Cover, Lamp
10	Lamp Holder
11	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
12	Motor Condenser
13	Guide Air
14	Base Thermostat
15	Cover, Connector
16	Charcoal Filter
17	Lead Wire
18	W11380570 Whirlpool Microwave Screw
19	Screw
20	Screw
21	Screw
22	Screw
23	W10815455 Whirlpool Screw
24	Sensor
25	Sensor Box
26	A.C. Relay
