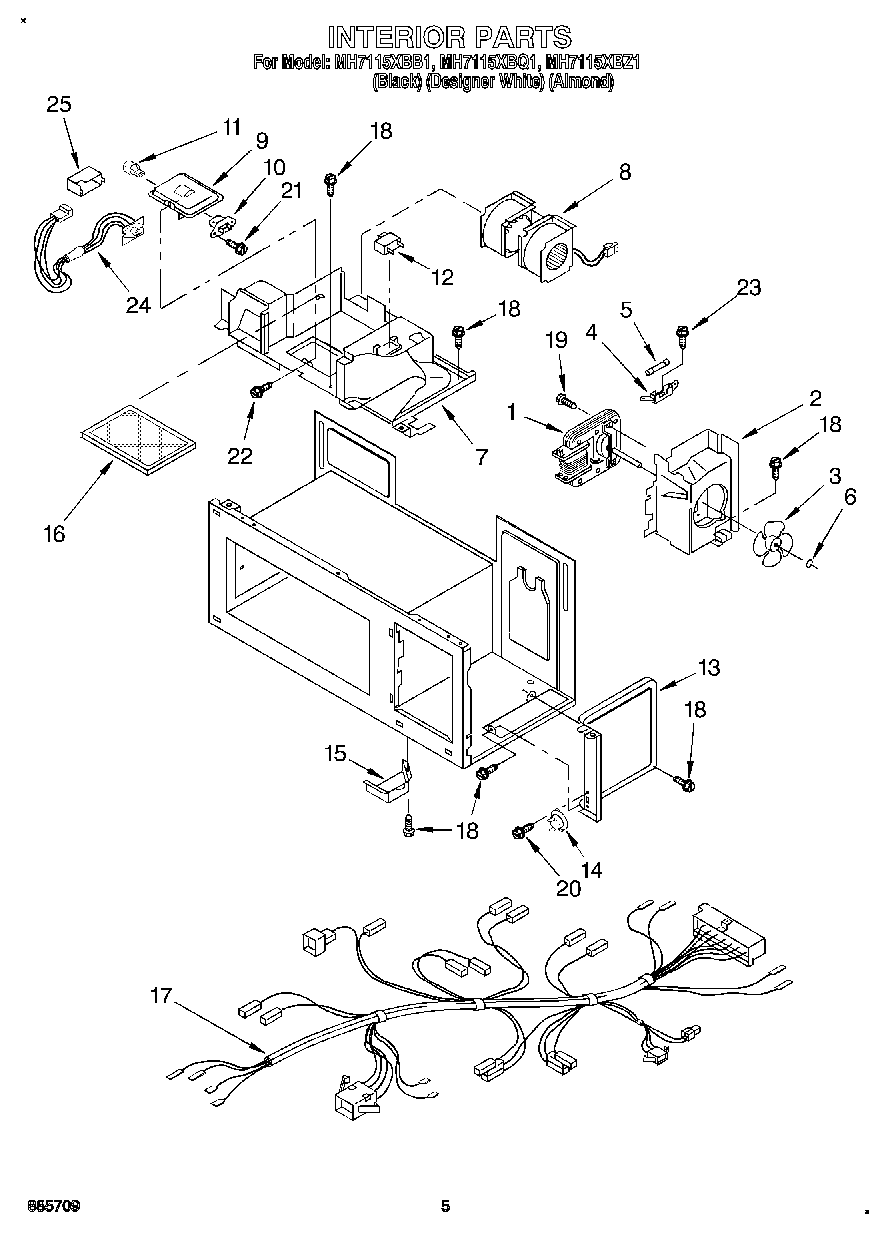

| 1 | Motor, Fan |
| 2 | Guide Suction |
| 3 | Blower Fan |
| 4 | Holder, Fuse |
| 5 | Fuse |
| 6 | Push Nut |
| 7 | Air Duct |
| 8 | Motor, Ventilation |
| 9 | Cover, Lamp |
| 10 | Lamp Holder |
| 11 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 12 | Motor Condenser |
| 13 | Guide Air |
| 14 | Base Thermostat |
| 15 | Cover, Connector |
| 16 | Charcoal Filter |
| 17 | Lead Wire |
| 18 | W11380570 Whirlpool Microwave Screw |
| 19 | Screw |
| 20 | Screw |
| 21 | Screw |
| 22 | Screw |
| 23 | W10815455 Whirlpool Screw |
| 24 | Sensor |
| 25 | Sensor Box |
