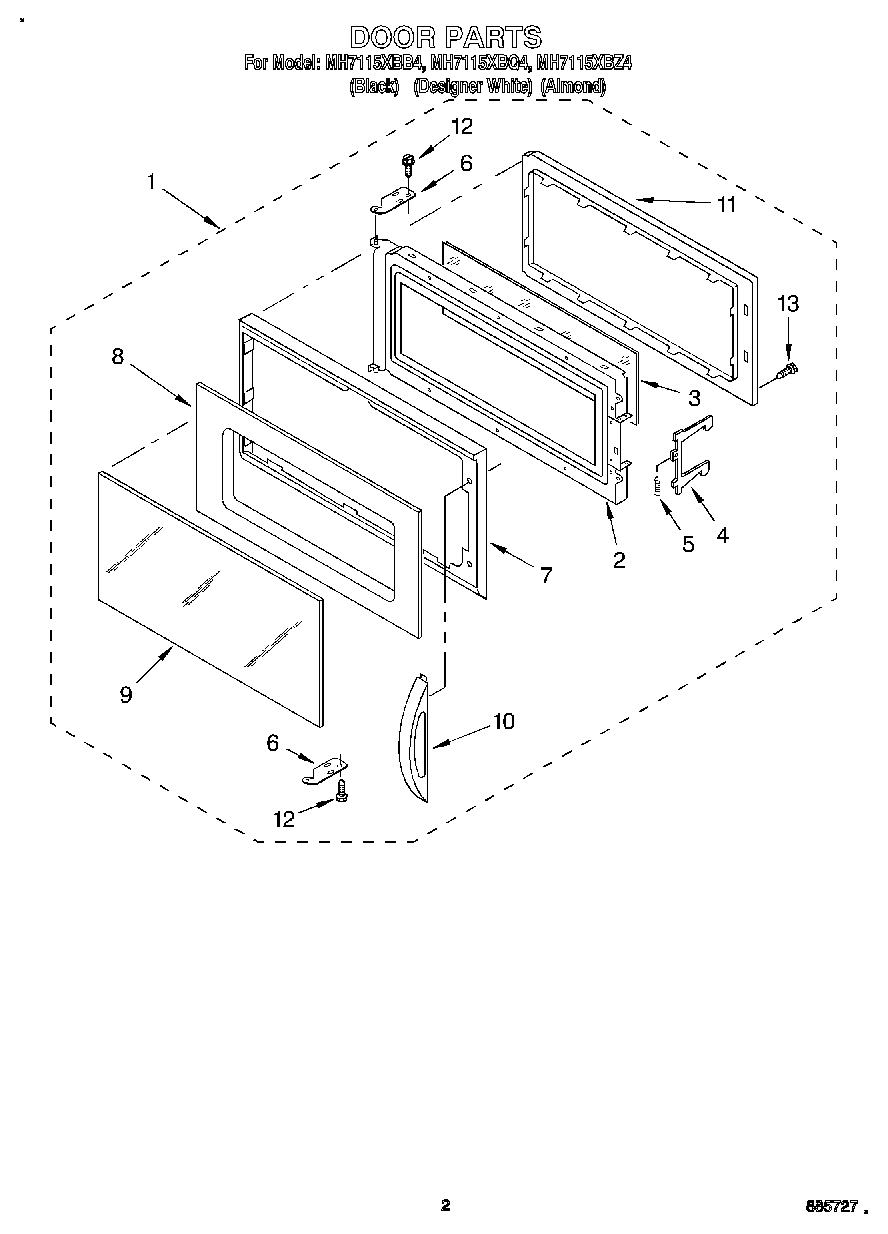

MH7115XBQ4 02 – DOOR

Products

Position	Product
1	Door Assembly (Almond Model)
1	Door Assembly (White Model)
1	Door Assembly (Black Model)
2	Frame, Door (Almond Model)
2	Frame, Door (White Model)
2	Frame, Door (Black Model)
3	WPW10146437 Whirlpool Peel and Stick Door Film
4	Latch
5	Spring, Latch
6	Plate, Hinge
7	Panel, Door (Almond Model)
7	Panel, Door (Black Model)
7	Panel, Door (White Model)
8	Baffle, Door (Black Model)
8	Baffle, Door (Almond Model)
8	Baffle, Door (White Model)
9	Glass, Door (Black Model)
9	Glass, Door (Almond Model)
9	Glass, Door (White Model)
10	Handle, Door (Almond Model)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
11	Choke Cover (White Model)
11	Choke Cover (Black Model)
11	Choke Cover (Almond Model)
12	Screw
13	Screw
