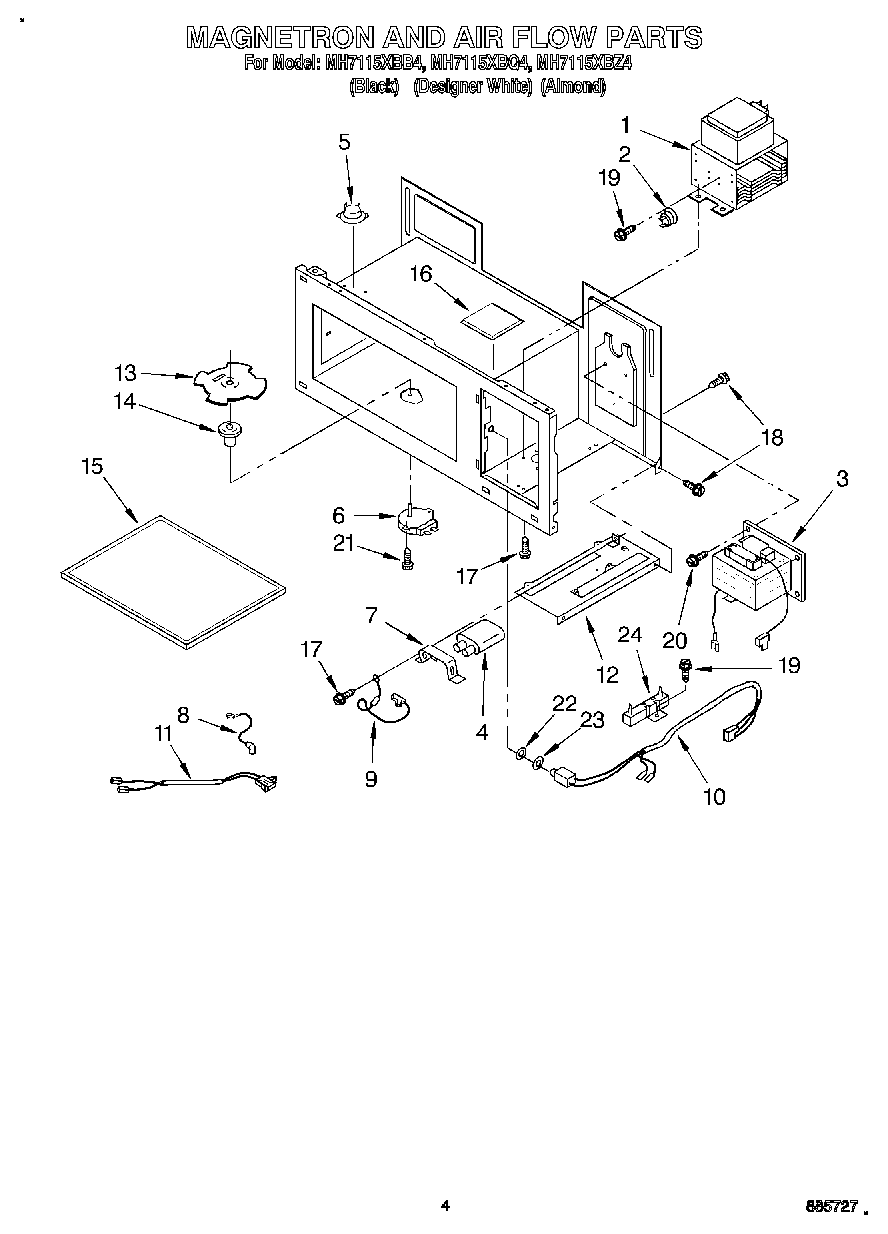

MH7115XBQ4 04 – MAGNETRON AND AIR FLOW, LITERATURE

Products

Position	Product
	Instructions, Installation
	Guide, Use & Care
	Tech Sheet
	Cookbook
1	Magnatron
2	Thermostat
3	Transformer
4	Capacitor
5	W10864742 Whirlpool Microwave Thermostat Fix
6	Motor, Synchronous
7	Bracket, H.V.C.
8	H.V. Cable
9	H.V. Diode-Cable
10	Lead Wire
11	Lead Wire
12	Plate, Bottom
13	Stirrer Fan Disk
14	Holder Disk
15	Ceramic Plate
16	Temp Hole Cap
17	4344826 Whirlpool Refrigerator Screw
18	W11380570 Whirlpool Microwave Screw
19	Screw
20	WP3400094 Whirlpool Screw
21	Screw
22	Nut
23	Washer
24	Resistor, Monitor
