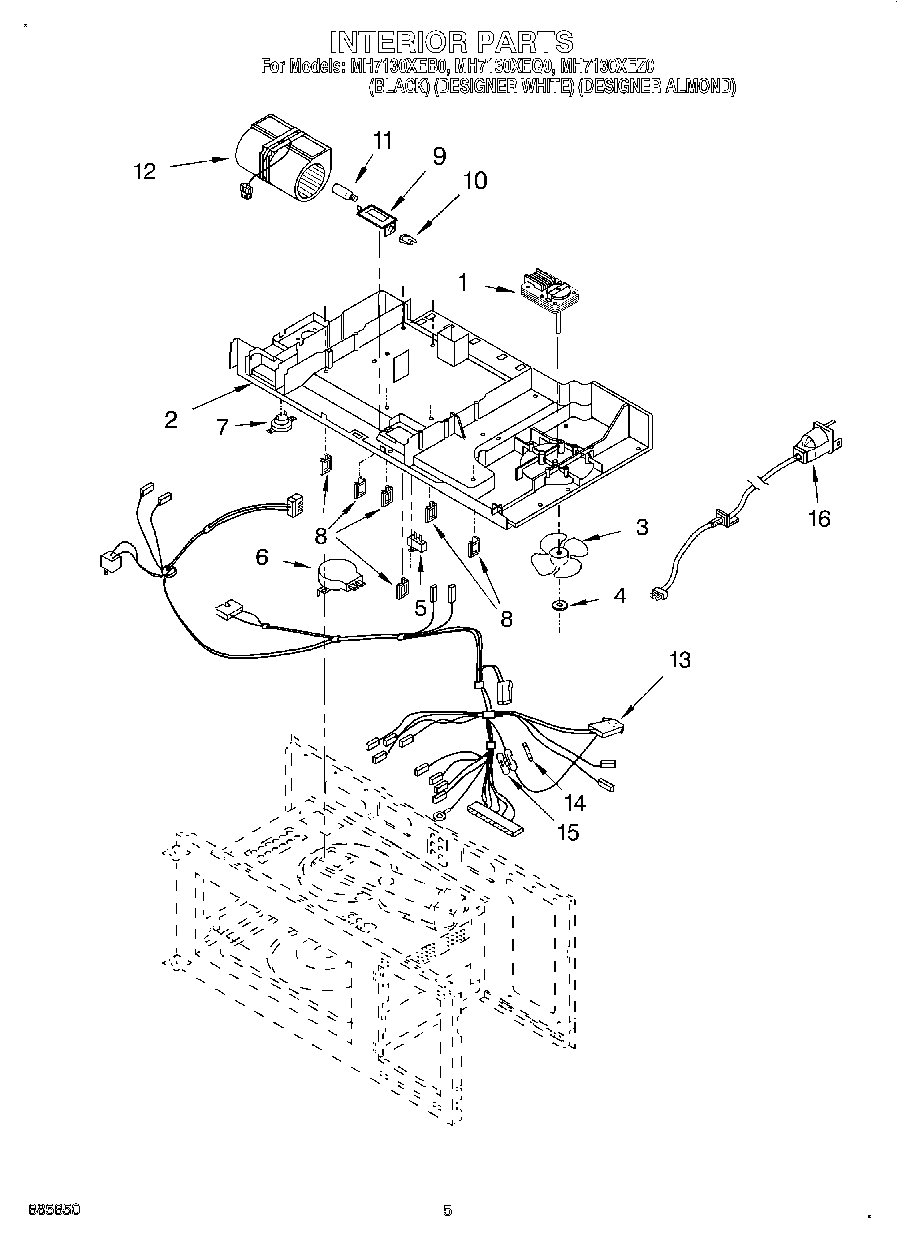

MH7130XEB0 05 – INTERIOR, LIT/OPTIONAL

Products

Position	Product
	Tech Sheet
	Cooking Guide
	Guide, Use & Care
	Instructions, Installation
1	W10815455 Whirlpool Screw
1	Motor, Fan
2	Air Duct
2	Screw
3	8184292 Whirlpool Microwave Fan Blade
4	Push Nut
5	Screw
5	Fuse
6	Motor, Synchronous
7	W10864742 Whirlpool Microwave Thermostat Fix
8	Wire Holder (4)
9	Screw (Black Model)
9	Cover
10	Lamp Holder
11	WPA3073101 Whirlpool Light Bulb
12	Motor, Ventilation
13	Lead, Wire
13	4344826 Whirlpool Refrigerator Screw
14	WP8183507 Whirlpool Microwave Fuse
15	Fuse Cap
16	WP482338 Whirlpool Refrigerator Adhesive
16	Installation Hardware
16	Filler Kit
16	Power Cord
