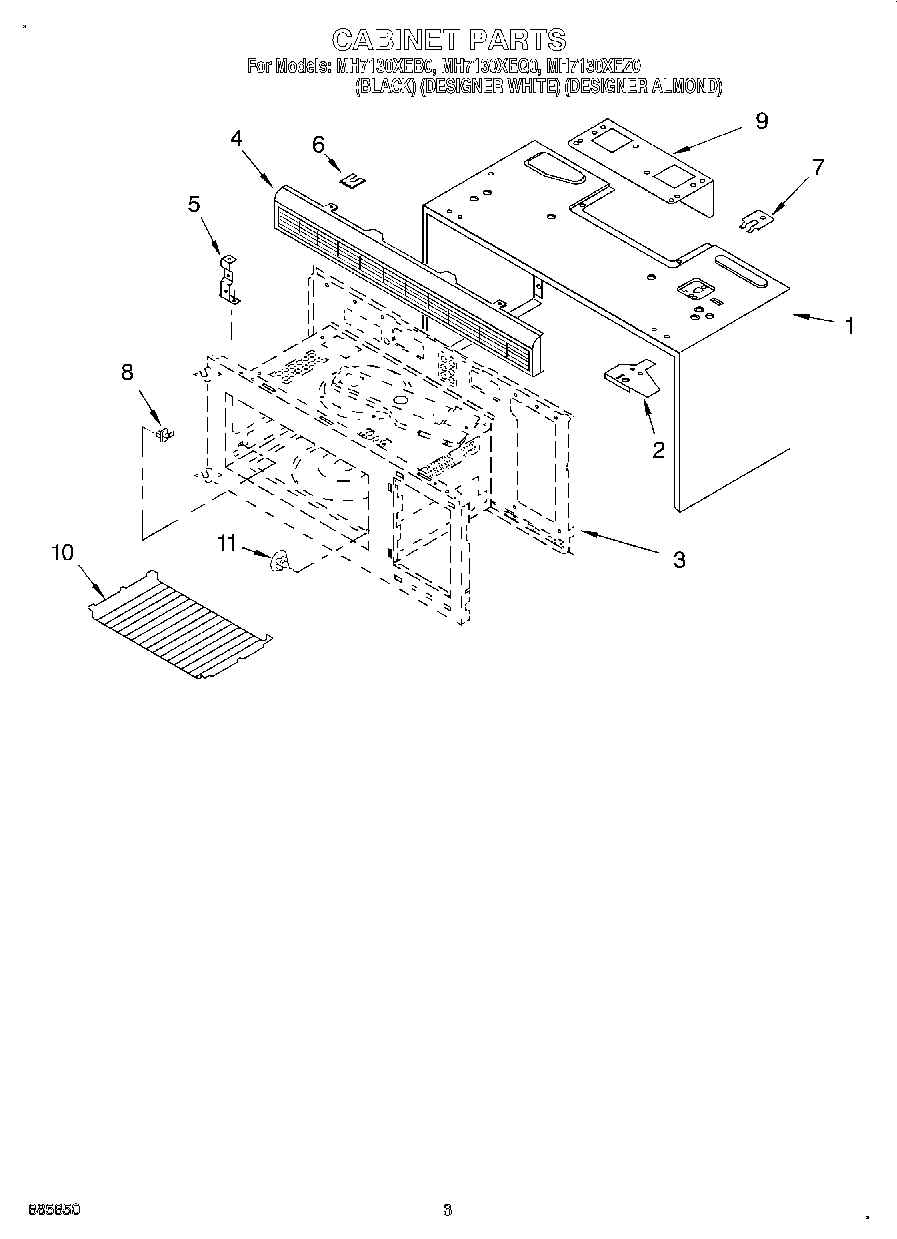

MH7130XEQ0 03 – CABINET

Products

PositionProduct
1Outer Case (White Model)
1Outer Case (Almond Model)
1Outer Case (Black Model)
1Screw
2Mounting Bracket
3Cavity Assembly (Not Serviceable)
4Screw (White Model)
4Grille Vent (Black Model)
4Screw (Black Model)
4Grille Vent (Almond Model)
4Grille Vent (White Model)
5Bracket, Front
6Bracket, Grille
7Cover, Power Cord
8Shelf Holder
9Blower Plate
9W11380570 Whirlpool Microwave Screw
10Rack, Grill
11Temp. Hole Cap
