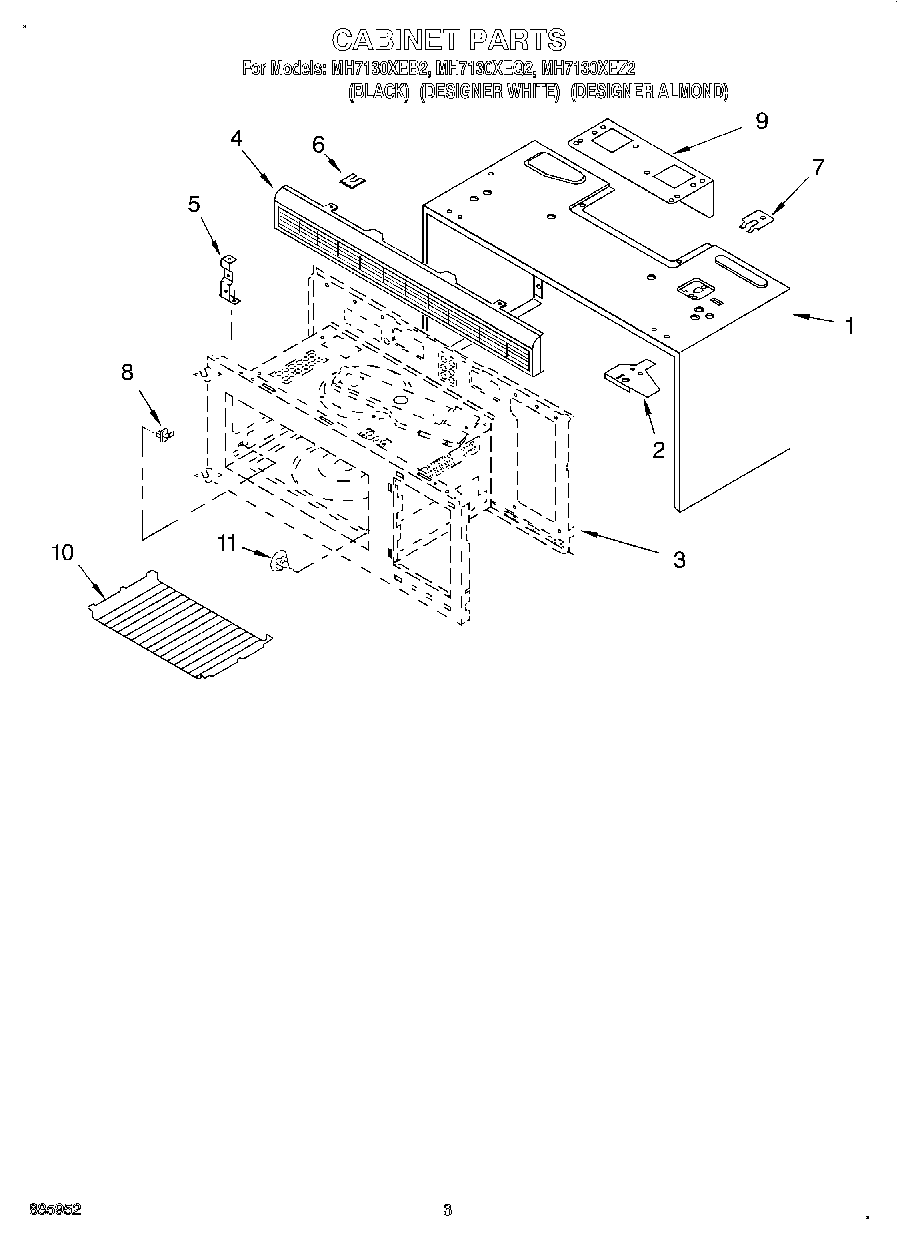

MH7130XEQ2 03 – CABINET

Products

Position	Product
1	Outer Case (White Model)
1	Outer Case (Almond Model)
1	Outer Case (Black Model)
1	Screw
2	Mounting Bracket
3	Cavity Assembly (Not Serviceable)
4	Screw (Black Model)
4	Grille Vent (Almond Model)
4	Grille Vent (Black Model)
4	Grille Vent (White Model)
4	Screw (White Model)
5	Bracket, Front
6	Bracket, Grille
7	Cover, Power Cord
8	Shelf Holder
9	W11380570 Whirlpool Microwave Screw
9	Blower Plate
10	Rack, Grill
11	Temp. Hole Cap
