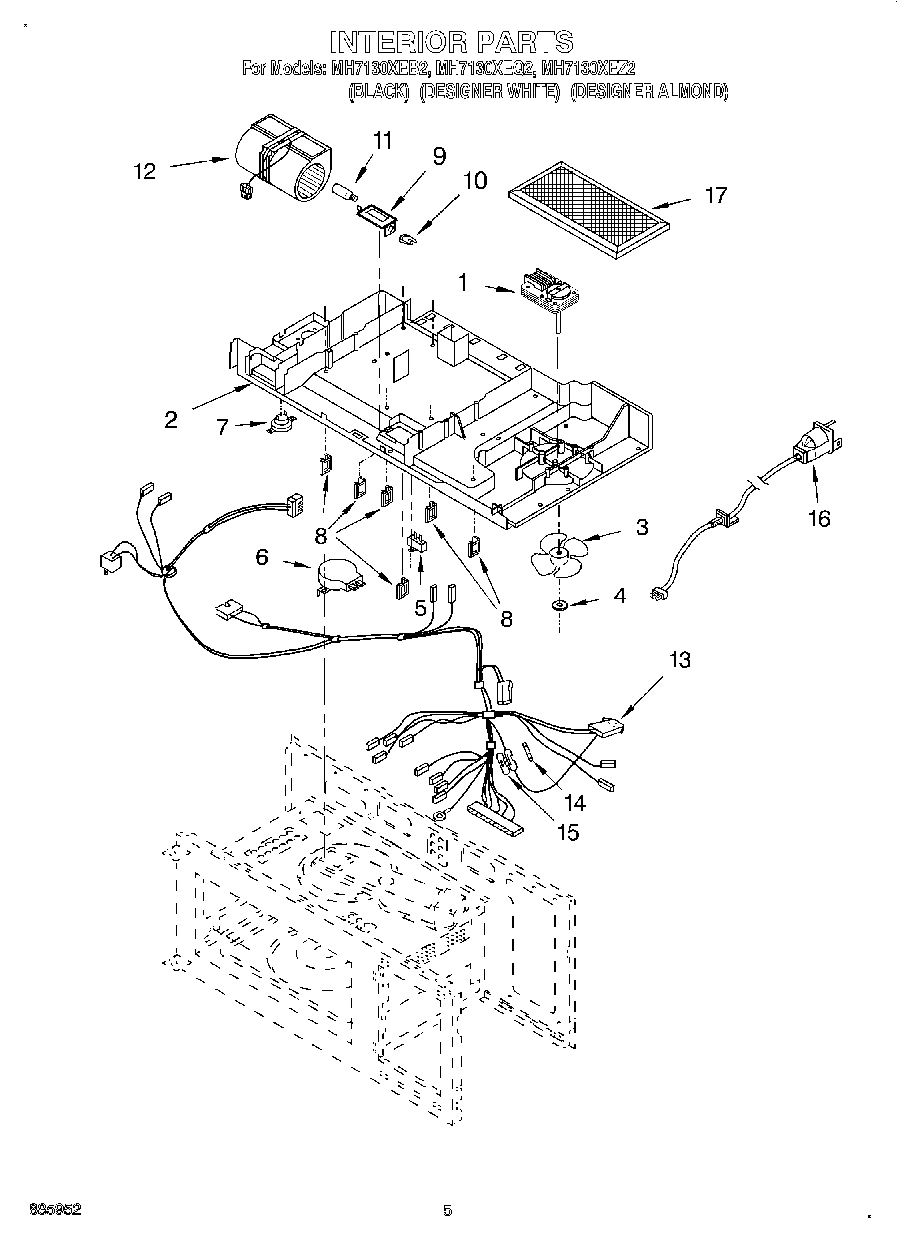

MH7130XEQ2 05 – INTERIOR

Products

Position	Product
1	Motor, Fan
1	W10815455 Whirlpool Screw
2	Air Duct
2	Screw
3	8184292 Whirlpool Microwave Fan Blade
4	Push Nut
5	Screw
5	Fuse
6	Motor, Synchronous
7	W10864742 Whirlpool Microwave Thermostat Fix
8	Wire Holder (4)
9	Cover
9	Screw (Black Model)
10	Lamp Holder
11	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
12	Motor, Ventilation
13	Lead, Wire
13	4344826 Whirlpool Refrigerator Screw
14	WP8183507 Whirlpool Microwave Fuse
15	Fuse Cap
16	Power Cord
17	WP482338 Whirlpool Refrigerator Adhesive
17	Installation Hardware
17	Filler Kit
17	Charcoal Filter
