MH7130XEQ3 03 – CABINET

MH7130XEQ3 03 – CABINET

Written by

in

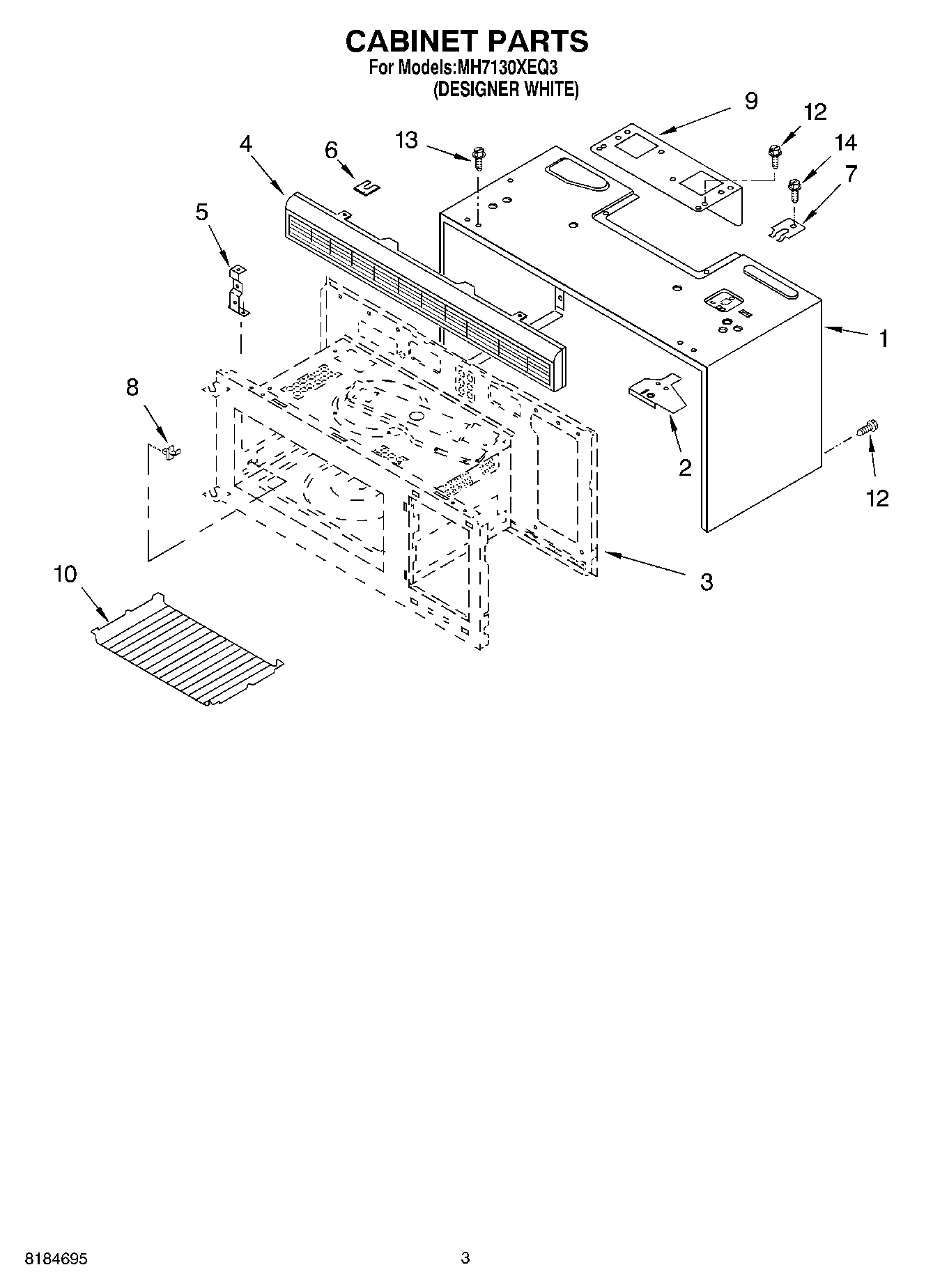

MH7130XEQ3 03 – CABINET

Products

PositionProduct
1Outer Case (White Model)
2Mounting Bracket
3Cavity Assy Not Serviceable
4Grille Vent
5Bracket, Front
6Bracket, Grille
7Cover, Power Cord
8Shelf Holder
9Blower Plate
10Rack, Grill
12Screw
13Screw (White Model)
14W11380570 Whirlpool Microwave Screw
