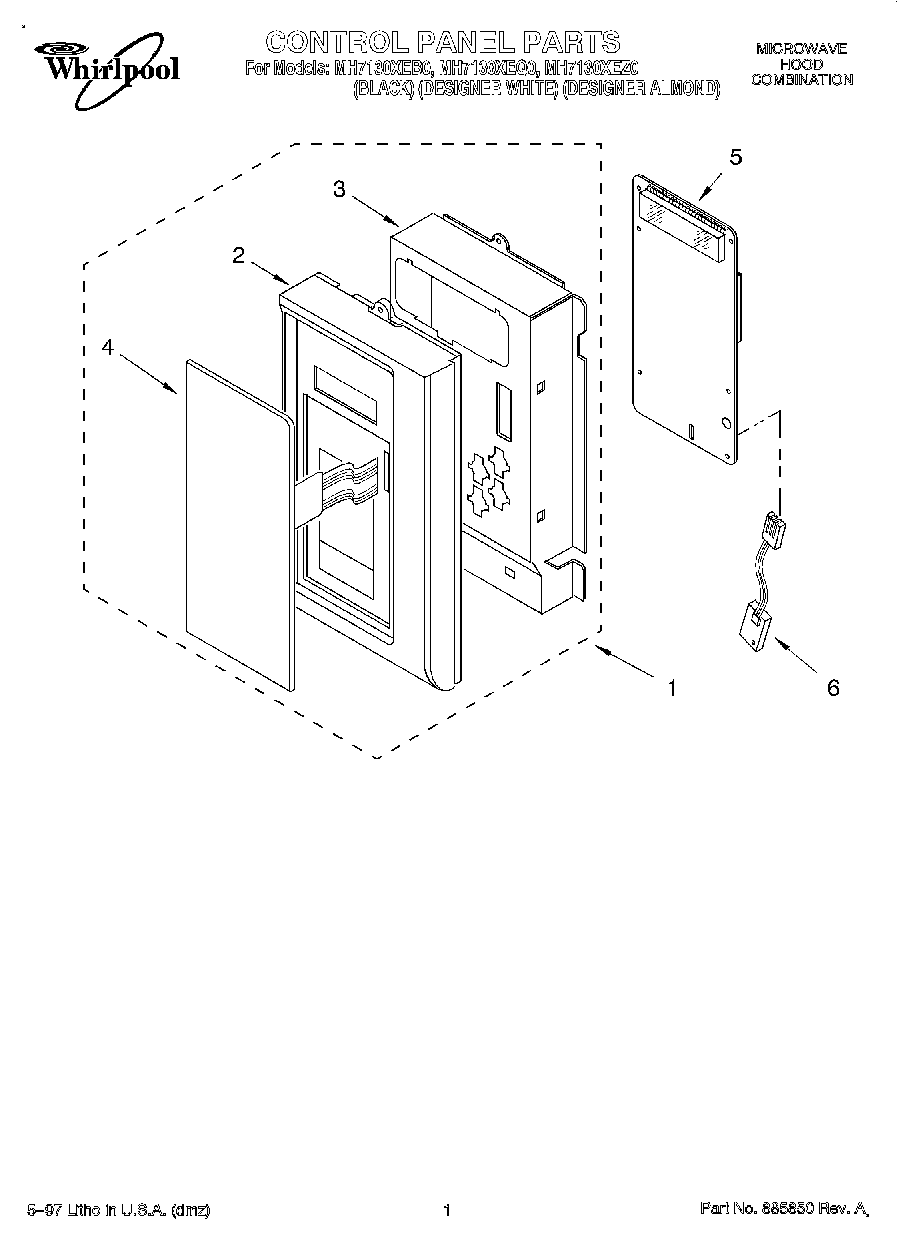

MH7130XEZ0 01 – CONTROL PANEL

Products

Position	Product
1	Controller Sub Assy. (Almond)
1	Controller Sub Assy. (Black Model)
1	Controller Sub Assy. (White Model)
2	Screw (White Model)
2	Control Panel (Almond)
2	Screw (Black Model)
2	Control Panel (Black Model)
2	Control Panel (White Model)
3	Bracket, Control
4	Key Membrane (Black Model)
4	Key Membrane (Almond)
4	Key Membrane (White Model)
5	PCB Sub Assy.
5	Screw
6	PWB Sub, Assy
