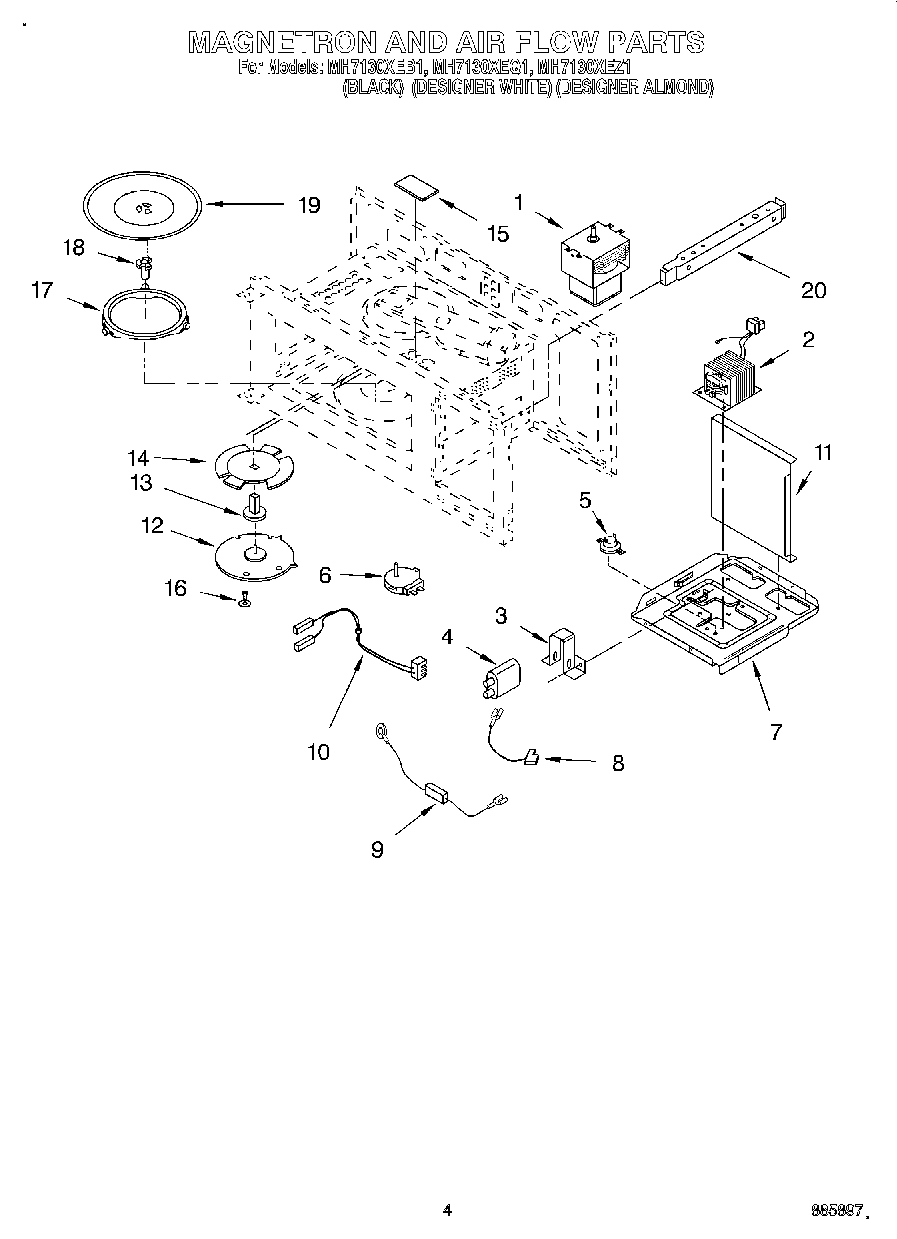

MH7130XEZ1 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
1	4344826 Whirlpool Refrigerator Screw
2	WP3400094 Whirlpool Screw
2	H.V. Transformer
3	Bracket, H.V.
4	Capacitor, H.V.
5	Screw
5	Base Thermostat
6	Screw
6	Motor, Turntable
7	Plate
8	H.V. Cable Ass`y
9	WP8205489 Whirlpool Microwave Voltage Wire
10	Lead Wire
11	Guide
12	Cover
13	Holder
14	Stirrer Fan
15	Tape
16	WP4359508 Whirlpool Microwave Stir Rivet
17	Rotating Ring
18	Turntable Shaft
19	WP8172138 Whirlpool Microwave Cook Tray
20	Plate
20	W11380570 Whirlpool Microwave Screw
