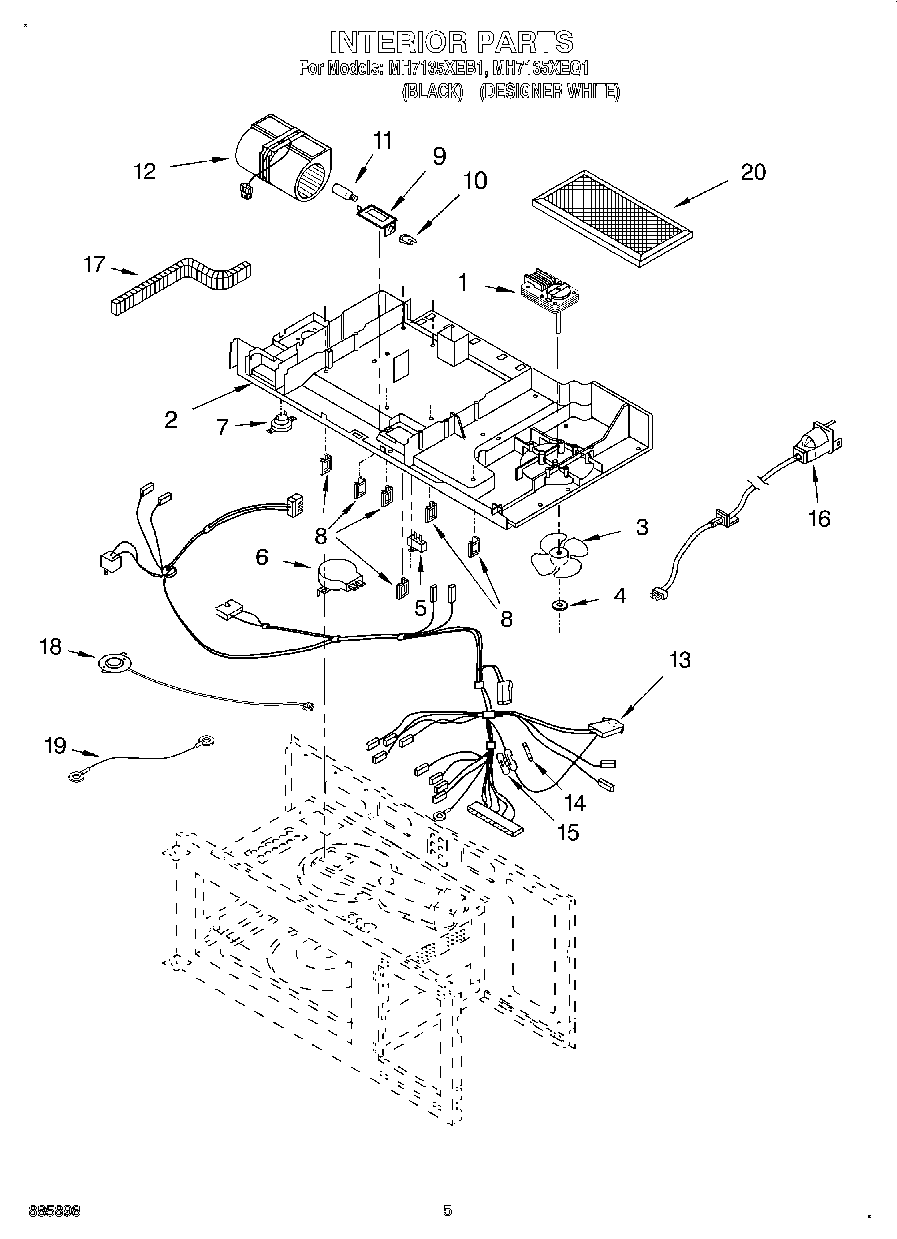

MH7135XEB1 05 – INTERIOR, LIT/OPTIONAL

Products

Position	Product
	Literature Parts (Guide, U & C)
	Instructions, Installation
	Tech Sheet
	Literature Parts (Guide, Cooking)
1	W10815455 Whirlpool Screw
1	Motor, Fan
2	Screw
2	Air Duct
3	8184292 Whirlpool Microwave Fan Blade
4	Push Nut
5	Screw
5	Fuse
6	Motor, Synchronous
7	W10864742 Whirlpool Microwave Thermostat Fix
8	Wire Holder (4)
9	Cover
9	Screw (Black Model)
10	Lamp Holder
11	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
12	Motor, Ventilation
13	Lead, Wire
14	WP8183507 Whirlpool Microwave Fuse
15	Fuse Cap
16	Power Cord
17	Cushion
18	Sensor
19	Wire, Ground
19	Screw
19	4344826 Whirlpool Refrigerator Screw
20	Charcoal Filter
20	Installation Hardware
20	Filler Kit
20	WP482338 Whirlpool Refrigerator Adhesive
