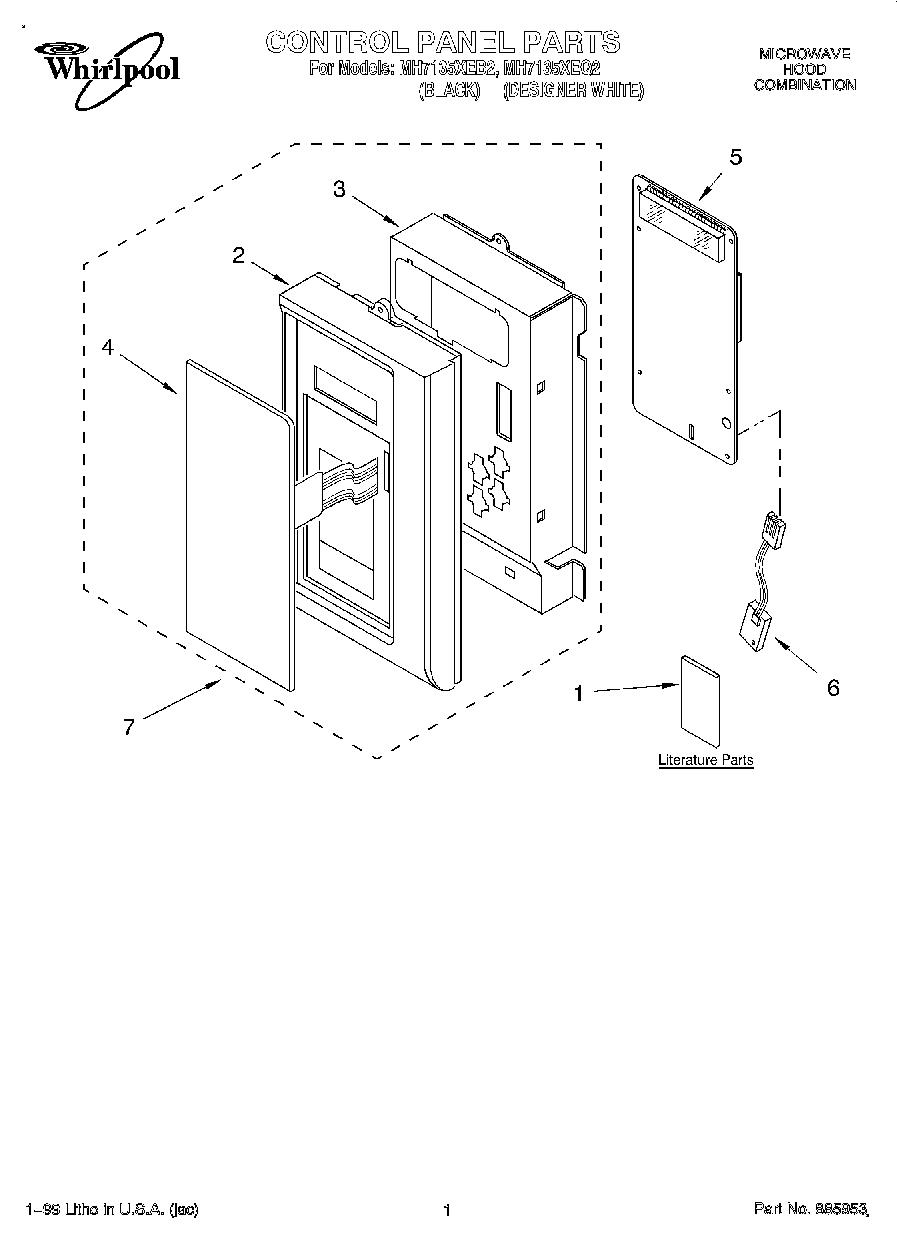

MH7135XEQ2 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
1	Instructions, Installation
1	Literature Parts (Guide, U & C)
1	Literature Parts (Guide, Cooking)
1	Tech Sheet
2	Screw (White Model)
2	Screw (Black Model)
2	Control Panel (Black Model)
2	Control Panel (White Model)
3	Bracket, Control
4	Key Membrane (White Model)
4	Key Membrane (Black Model)
5	Screw
5	PCB Sub Assy.
6	PWB Sub, Assy
7	Controller Sub Assy. (White Model)
7	Controller Sub Assy. (Black Model)
