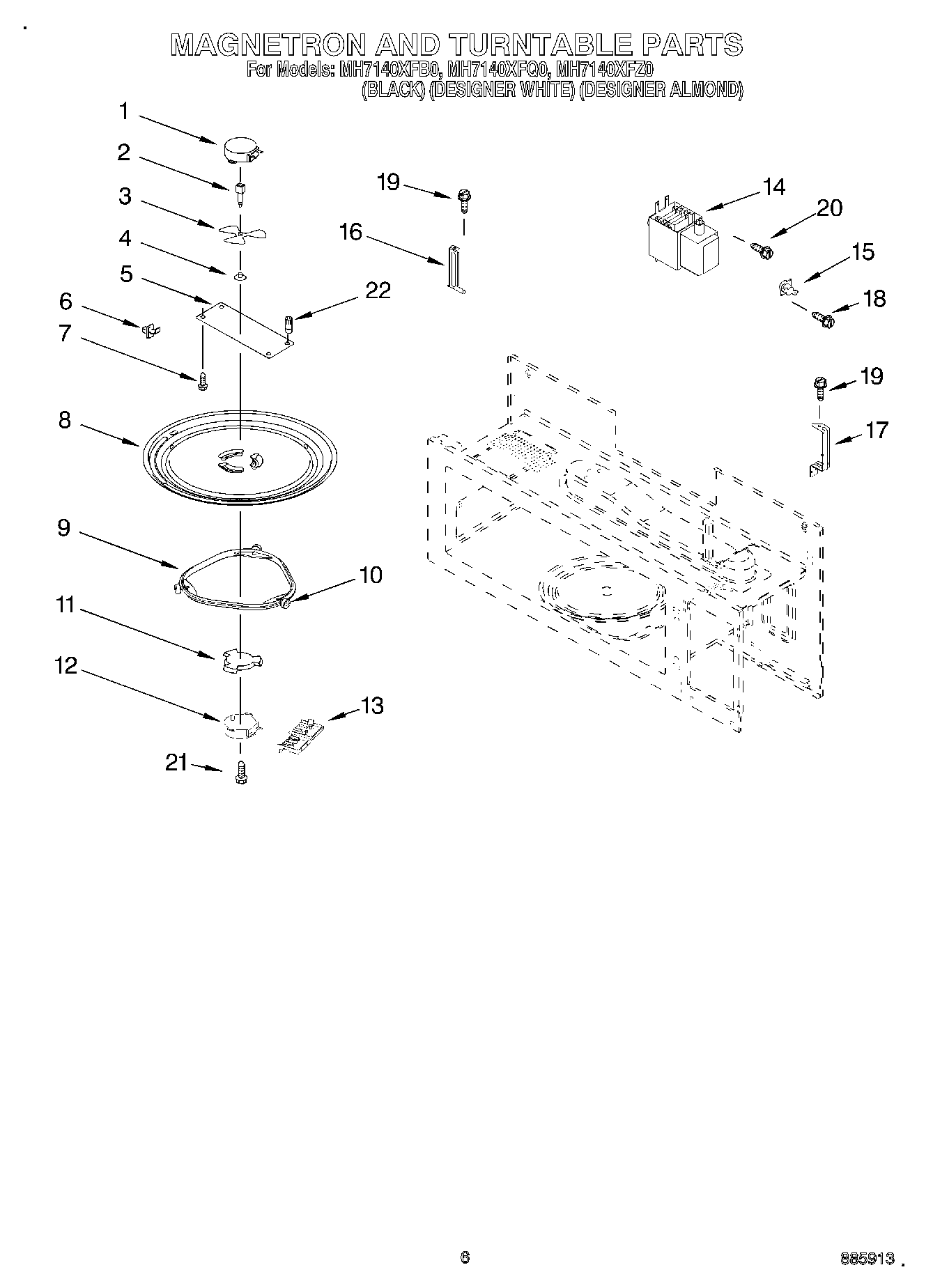

MH7140XFB0 05 – MAGNETRON AND TURNTABLEadmin2025-04-26T10:34:25+00:00MH7140XFB0 05 – MAGNETRON AND TURNTABLE
Products
| Position | Product |
|---|
| 1 | Motor, Stirrer |
| 2 | Shaft, Stirrer |
| 3 | Stirrer |
| 4 | Guide, Stirrer |
| 5 | Cover, Inlet |
| 6 | W10315274 Whirlpool Microwave Meal Rack |
| 7 | Nail, Plastic |
| 8 | 4393799 Whirlpool Microwave Glass Tray |
| 9 | W11252182 Whirlpool Glass Tray Support |
| 10 | Wheel, Plastic |
| 11 | W10435116 Whirlpool Microwave Turntable Roller Drive Coupling |
| 12 | W10642989 Whirlpool Microwave Oven Turntable Motor |
| 13 | Cover, Terminal |
| 14 | W10245183 Whirlpool Microwave Magnetron |
| 15 | Thermostat |
| 16 | Holder, Connector (L) |
| 17 | Holder, Connector (R) |
| 18 | Screw |
| 19 | Screw |
| 20 | WP8181660 Whirlpool Screw |
| 21 | 4393832 Whirlpool Microwave Screw |
| 22 | Bushing, Nail |
