MH7140XFZ0 06 – CABINET AND INSTALLATION

MH7140XFZ0 06 – CABINET AND INSTALLATION

Written by

in

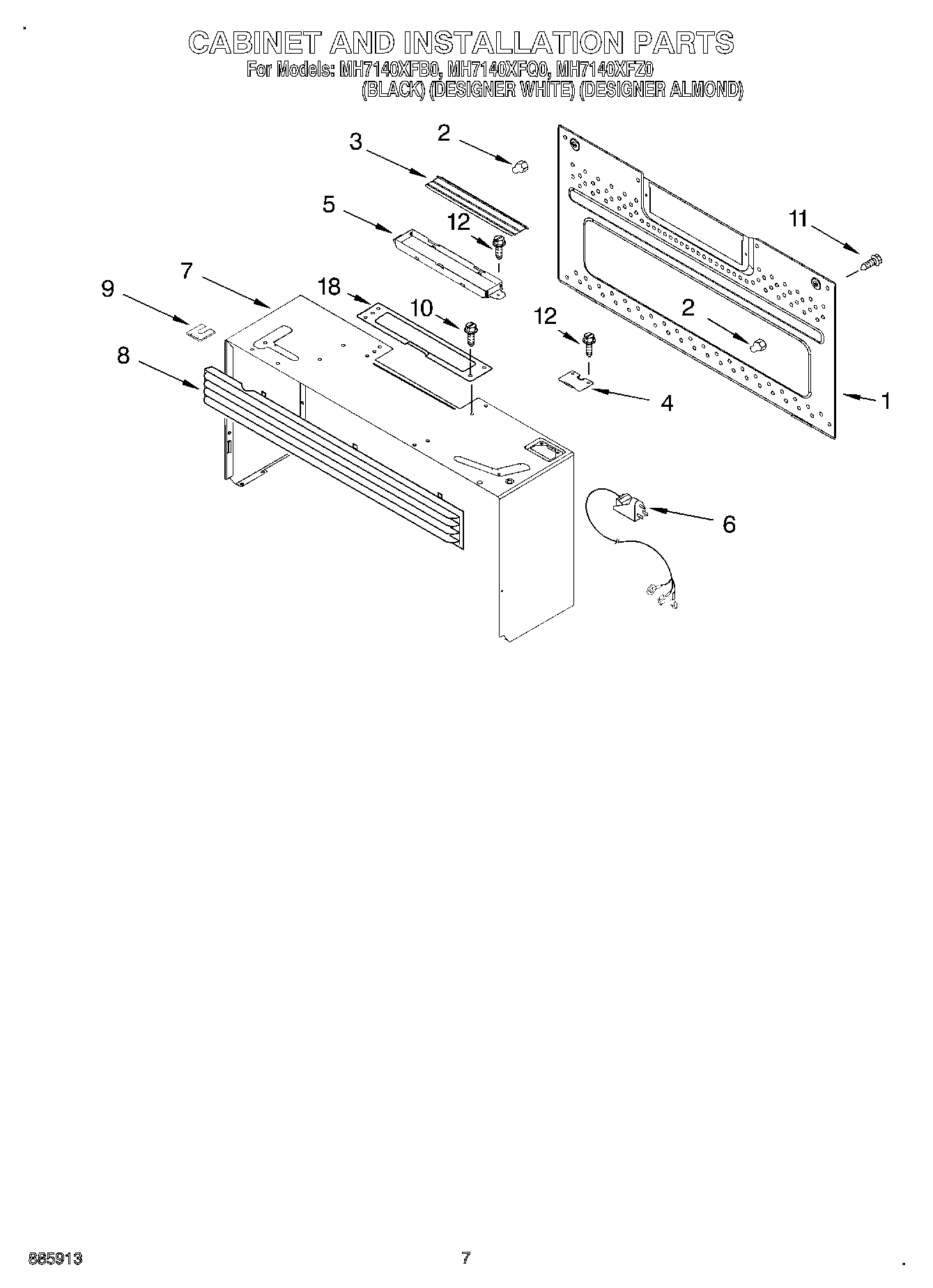

MH7140XFZ0 06 – CABINET AND INSTALLATION

Products

PositionProduct
Installation, Hardware
1WP8206174 Whirlpool Microwave Mounting Bracket
2Stud, Ball
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (Almond)
7Case, Outer (Black)
7Case, Outer (White)
88183851 Whirlpool Microwave Oven Vent Grille Black
8Grille, Vent (Almond)
88183948 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
11Screw
12Screw
18Rack
18Plate, Damper
18Filler Kit
18Filler Kit (Almond)
18White Model
18Miscellaneous
