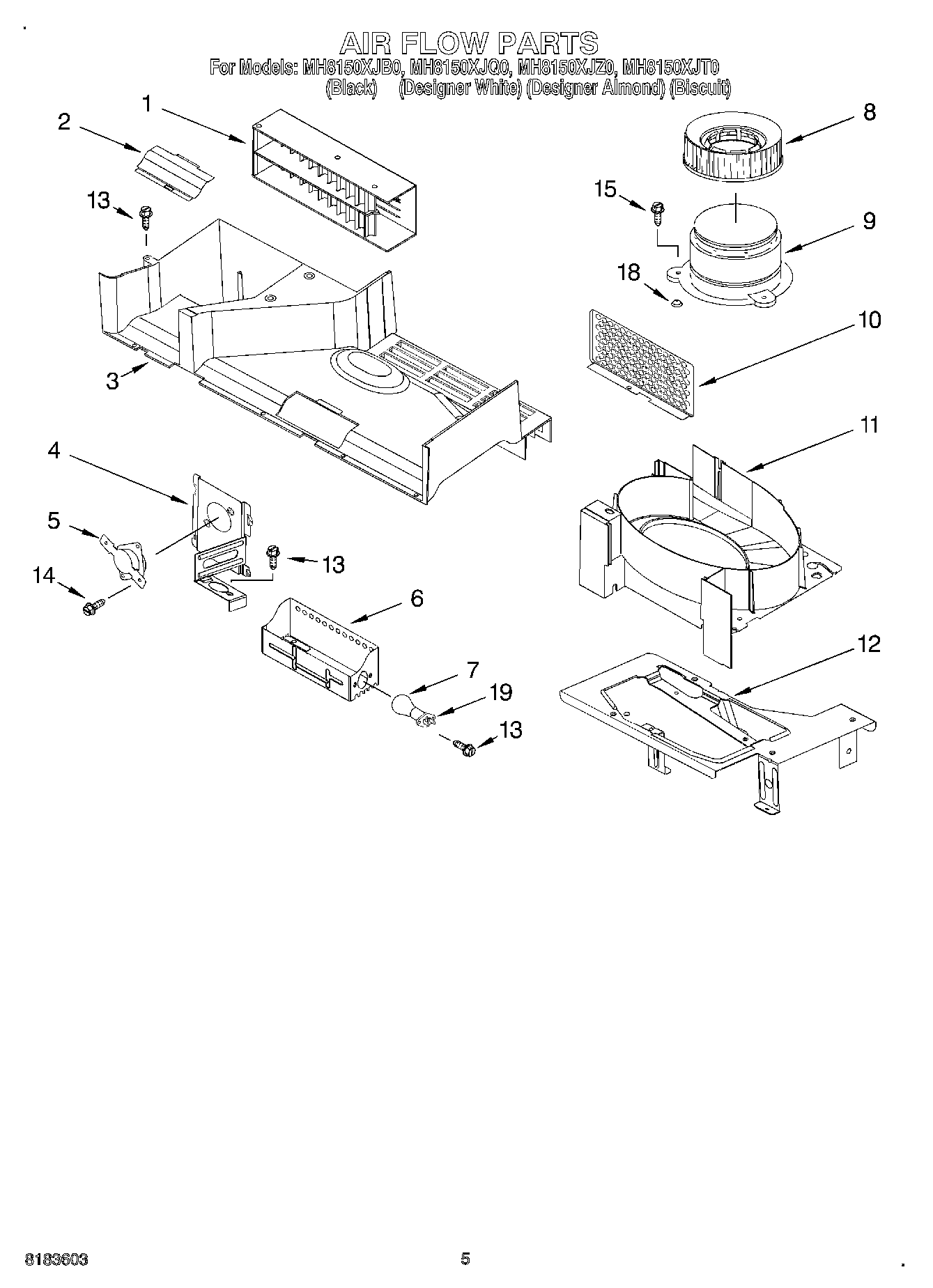

MH8150XJB0 04 – AIR FLOW

Products

Position	Product
1	Deflector, Air
2	Reflector, Air
3	Duct, Air
4	Bracket, Thermostat
5	Thermostat
6	Housing, Lamp
7	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
8	Wheel, Fan
9	Motor, Fan
10	Shield
11	Housing, Fan
12	Bracket, Fan (Not Serviceable)
13	Screw
14	Screw
15	Screw
18	Cushion, Mtr
19	8169539 Whirlpool Microwave Light Bulb Socket and Housing
