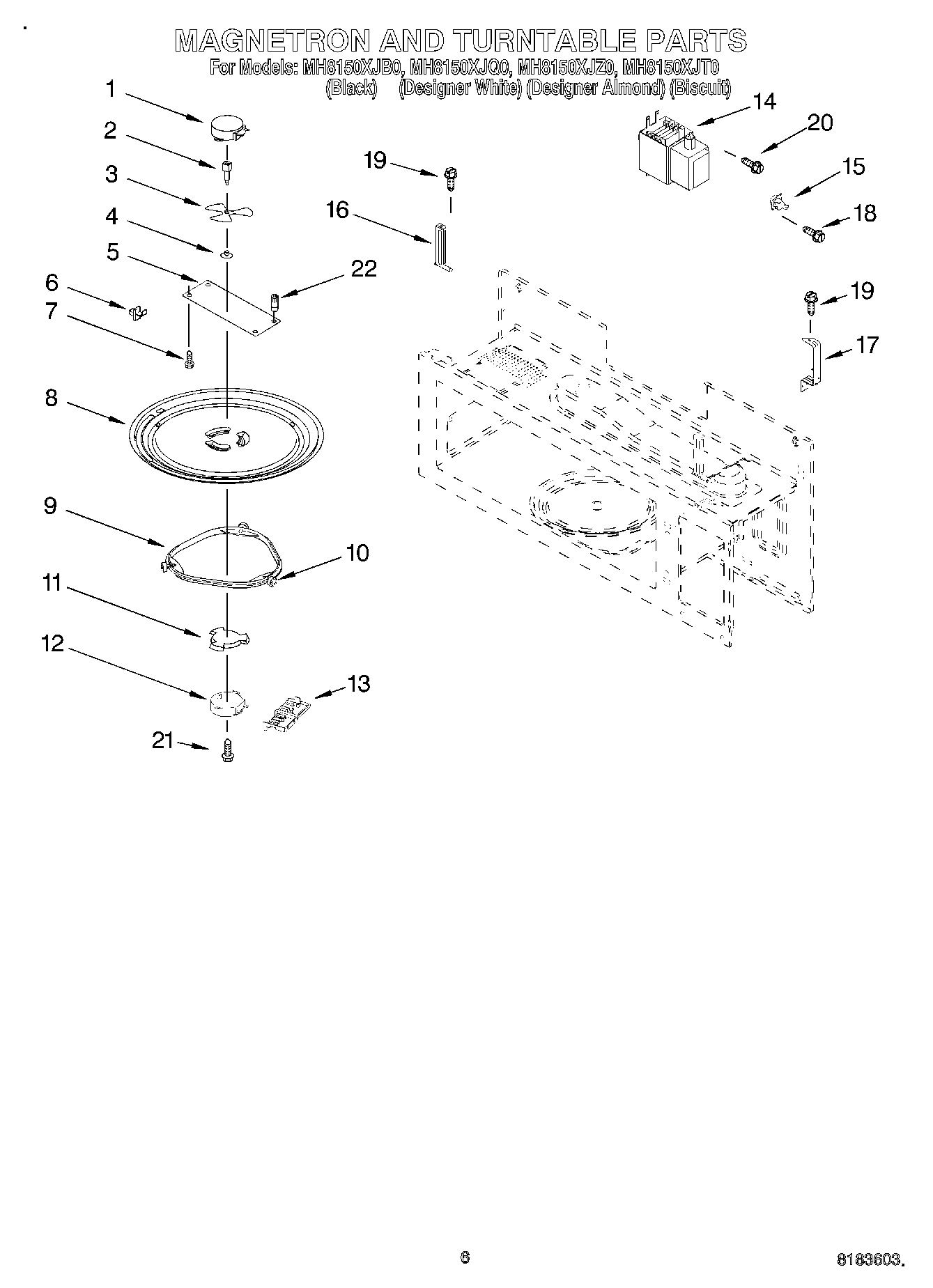

MH8150XJB0 05 – MAGNETRON & TURNTABLE

MH8150XJB0 05 – MAGNETRON & TURNTABLE

Written by

in

MH8150XJB0 05 – MAGNETRON & TURNTABLE

Products

PositionProduct
1Motor, Stirrer
2Shaft, Stirrer
3Stirrer
4Guide, Stirrer
5Cover, Inlet
6W10315274 Whirlpool Microwave Meal Rack
7Nail, Plastic
84393799 Whirlpool Microwave Glass Tray
10W11252182 Whirlpool Glass Tray Support
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
14W10245183 Whirlpool Microwave Magnetron
15Thermostat
16Holder, Connector (L)
17Holder, Connector (R)
18Screw
19Screw
20WP8181660 Whirlpool Screw
214393832 Whirlpool Microwave Screw
22Bushing, Nail
