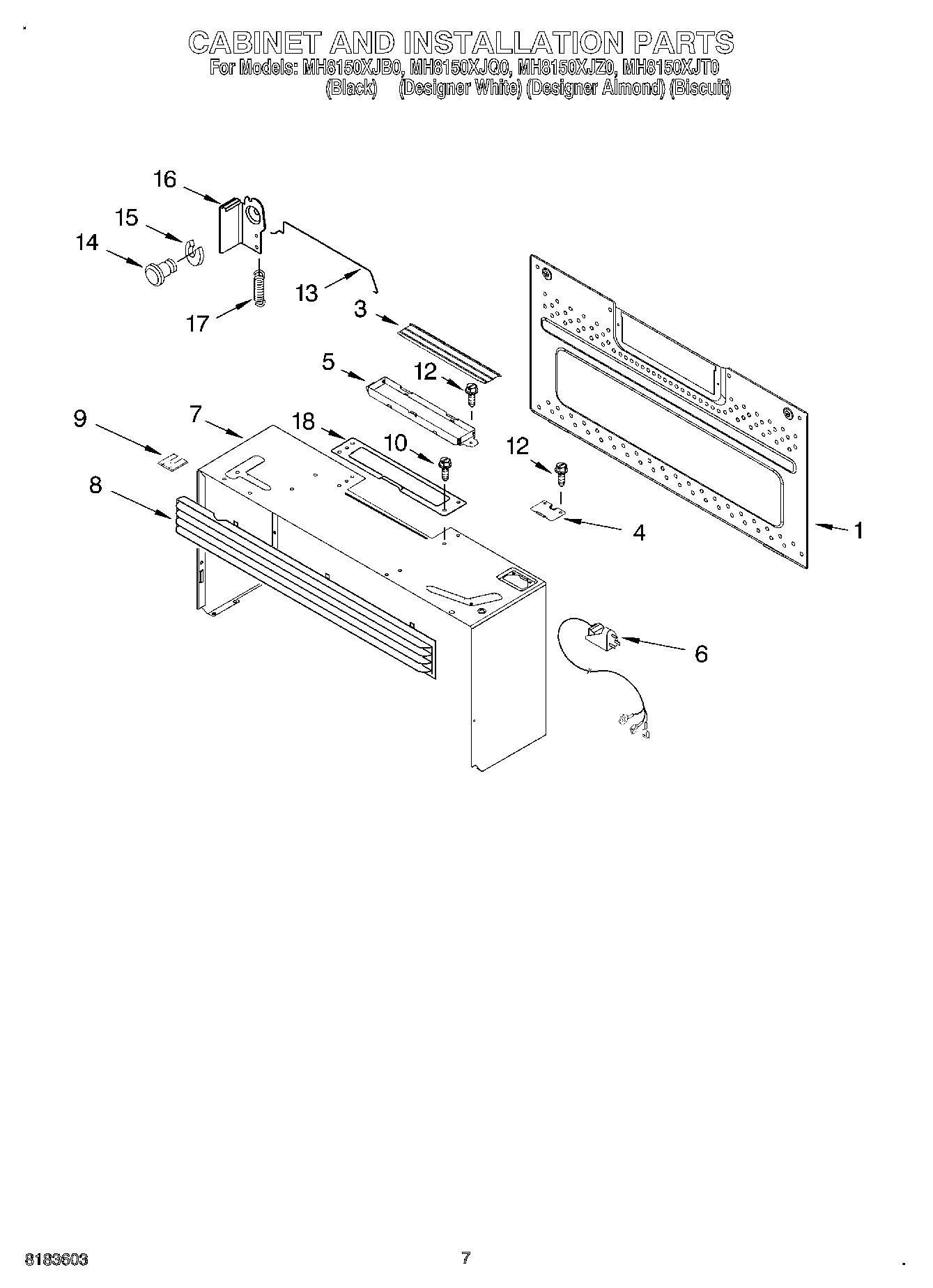

MH8150XJB0 06 – CABINET AND INSTALLATION, OPTIONAL

MH8150XJB0 06 – CABINET AND INSTALLATION, OPTIONAL

Written by

in

MH8150XJB0 06 – CABINET AND INSTALLATION, OPTIONAL

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
4Lid, Power Cord
6Cord, Power
7Case, Outer (White)
7Case, Outer (Black)
7Case, Outer (Biscuit)
7Case, Outer (Almond)
8Grille, Vent (Almond)
88183851 Whirlpool Microwave Oven Vent Grille Black
88183852 Whirlpool Microwave Primary Vent Grille
88183948 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12Screw
13Rod
14Latch, Pivot
15E-Ring
16Catch
17Spring
18Upper Template
18Hardware, Installation
18Rack
18Wall Template
18Filler Kit (Almond)
18Filler Kit (Biscut)
18Filler Kit (Black)
18Filler Kit (White)
18Plate, Damper
18WP8169704 Whirlpool Screw
