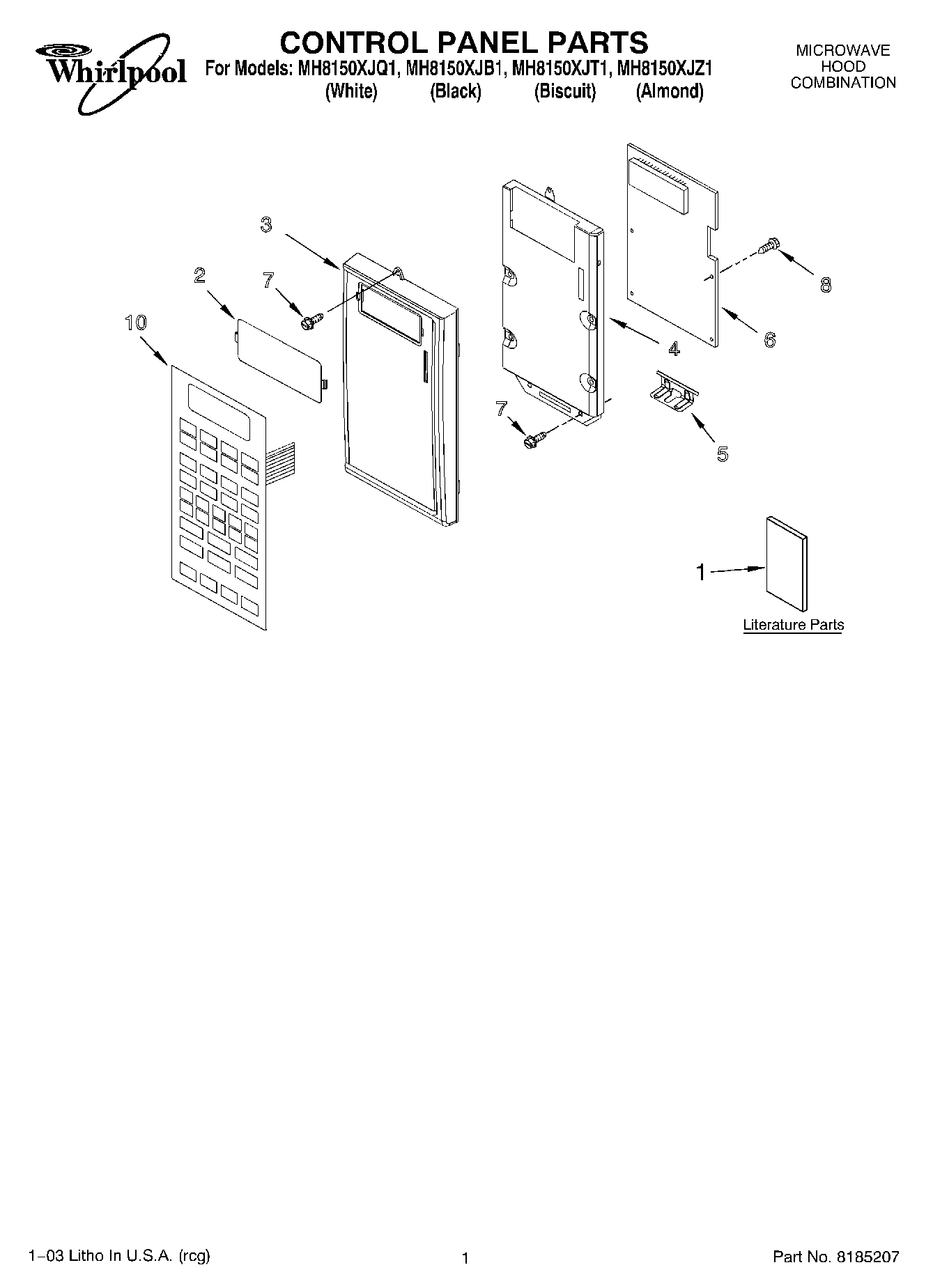

MH8150XJQ1 01 – CONTROL PANEL PARTS

MH8150XJQ1 01 – CONTROL PANEL PARTS

Written by

in

MH8150XJQ1 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Guide, Cooking (Label))
1Literature Parts (Guide, U & C)
1Literature Parts (Tech Sheet)
2Lens (B/Q Models)
2Lens (Biscuit Model)
3Panel, Control (Almond)
3Panel, Control (Biscuit)
3Panel, Control (White)
3Panel, Control (Black)
4Bracket, Control
5Plate, Hinge
6Microcomputer
7Screw
8Screw
10Switch, Membrane (White)
10Switch, Membrane (Almond)
10Switch, Membrane (Biscuit)
10Switch, Membrane (Black)
