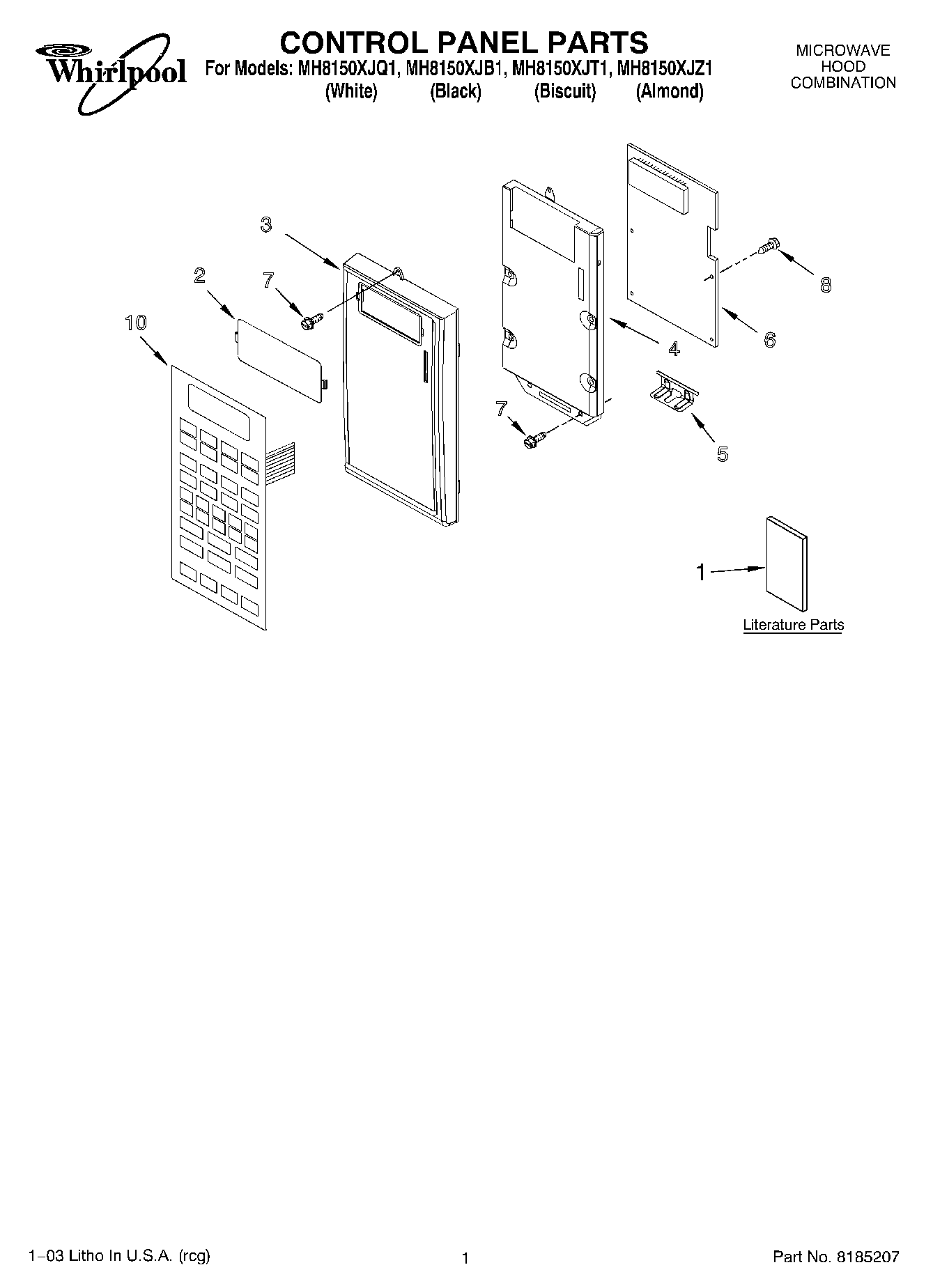

MH8150XJT1 01 – CONTROL PANEL PARTSadmin2025-04-26T10:35:04+00:00MH8150XJT1 01 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Guide, Cooking (Label)) |
| 1 | Literature Parts (Guide, U & C) |
| 1 | Literature Parts (Tech Sheet) |
| 2 | Lens (B/Q Models) |
| 2 | Lens (Biscuit Model) |
| 3 | Panel, Control (Almond) |
| 3 | Panel, Control (Biscuit) |
| 3 | Panel, Control (White) |
| 3 | Panel, Control (Black) |
| 4 | Bracket, Control |
| 5 | Plate, Hinge |
| 6 | Microcomputer |
| 7 | Screw |
| 8 | Screw |
| 10 | Switch, Membrane (White) |
| 10 | Switch, Membrane (Almond) |
| 10 | Switch, Membrane (Biscuit) |
| 10 | Switch, Membrane (Black) |
