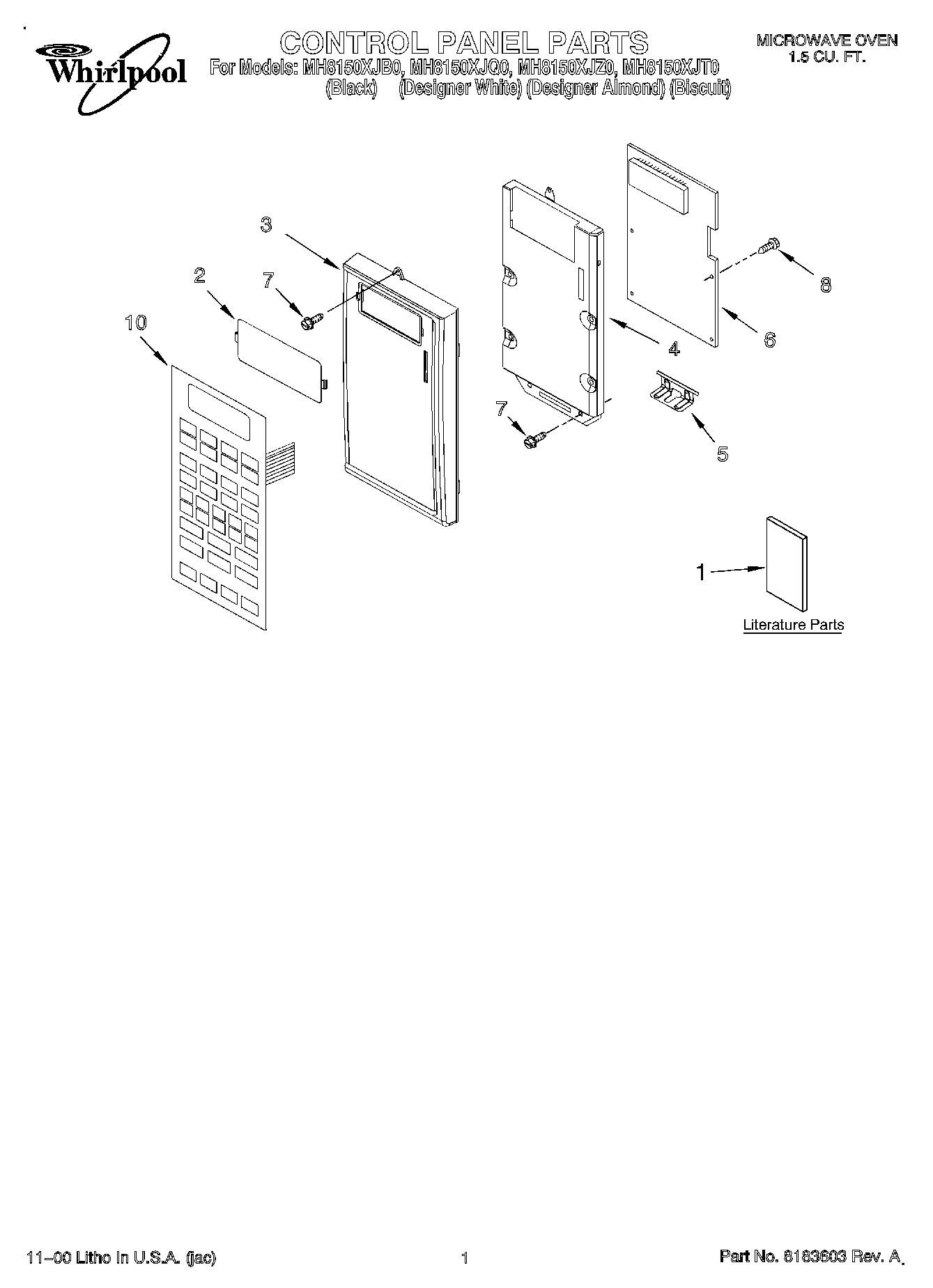

MH8150XJZ0 01 – CONTROL PANEL, LITERATURE

MH8150XJZ0 01 – CONTROL PANEL, LITERATURE

Written by

in

MH8150XJZ0 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Cooking (Label))
1Literature Parts (Instructions, Installation)
1Literature Parts (Tech Sheet)
1Literature Parts (Guide, U & C)
2Lens (B/Q Models)
2Lens (Biscuit Model)
3Panel, Control (Almond)
3Panel, Control (Biscuit)
3Panel, Control (White)
3Panel, Control (Black)
4Bracket, Control
5Plate, Hinge
6Microcomputer
7Screw
8Screw
10Switch, Membrane (Black)
10Switch, Membrane (White)
10Switch, Membrane (Almond)
10Switch, Membrane (Biscuit)
