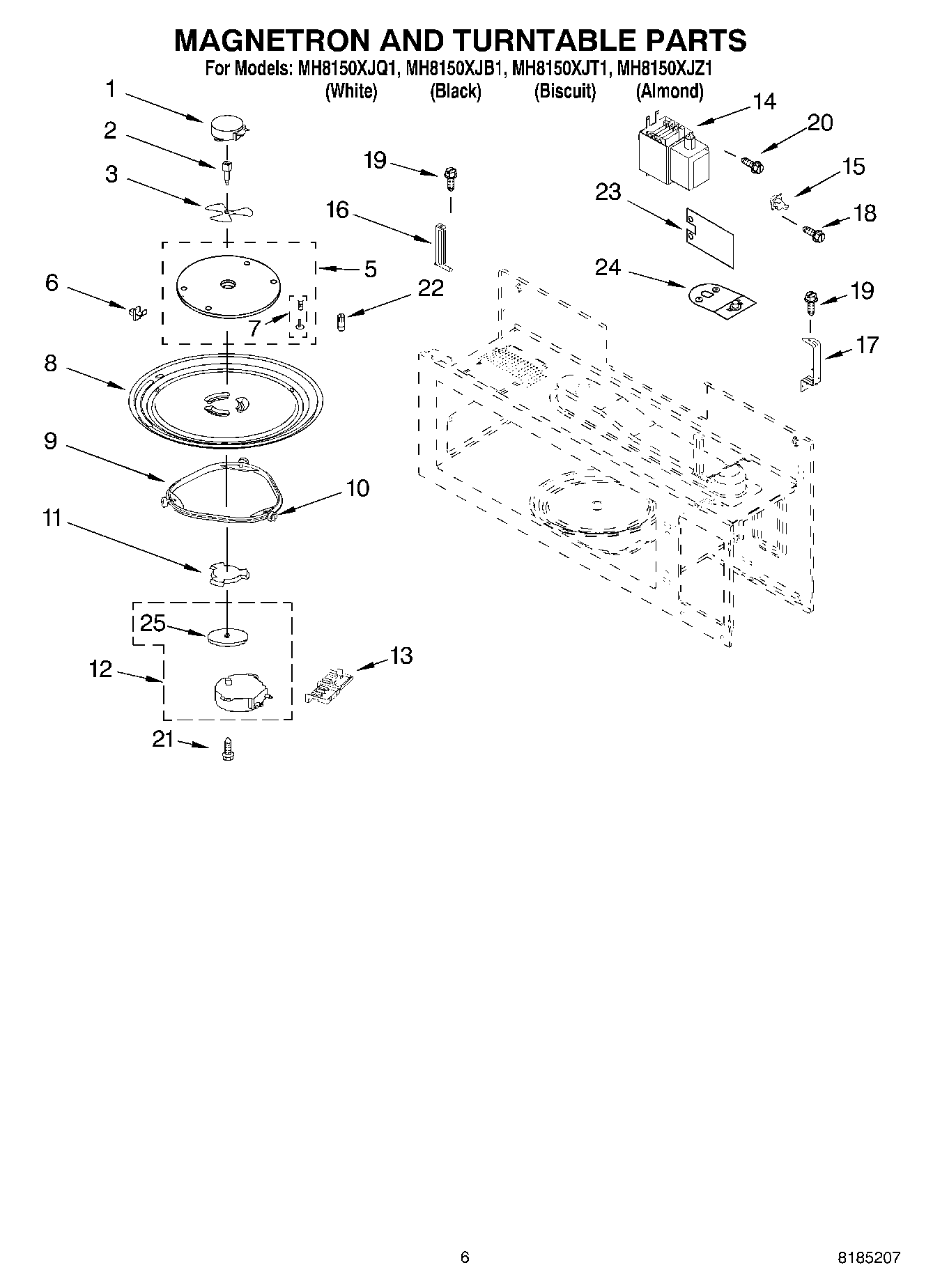

MH8150XJZ1 05 – MAGNETRON AND TURNTABLE PARTS

MH8150XJZ1 05 – MAGNETRON AND TURNTABLE PARTS

Written by

in

MH8150XJZ1 05 – MAGNETRON AND TURNTABLE PARTS

Products

PositionProduct
1Motor, Stirrer
2Shaft, Stirrer
3Stirrer
5Cover, Inlet
6W10315274 Whirlpool Microwave Meal Rack
7Nail, Plastic
84393799 Whirlpool Microwave Glass Tray
9W11252182 Whirlpool Glass Tray Support
10Wheel, Plastic
11W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12W10642989 Whirlpool Microwave Oven Turntable Motor
13Cover, Terminal
14W10245183 Whirlpool Microwave Magnetron
15Thermostat
16Holder, Connector (L)
17Holder, Connector (R)
18Screw
19Screw
20WP8181660 Whirlpool Screw
214393832 Whirlpool Microwave Screw
22Bushing, Nail
23WP8184485 Whirlpool Microwave Shield
24Thermostat And Bracket
258184109 Whirlpool Microwave Spacer
