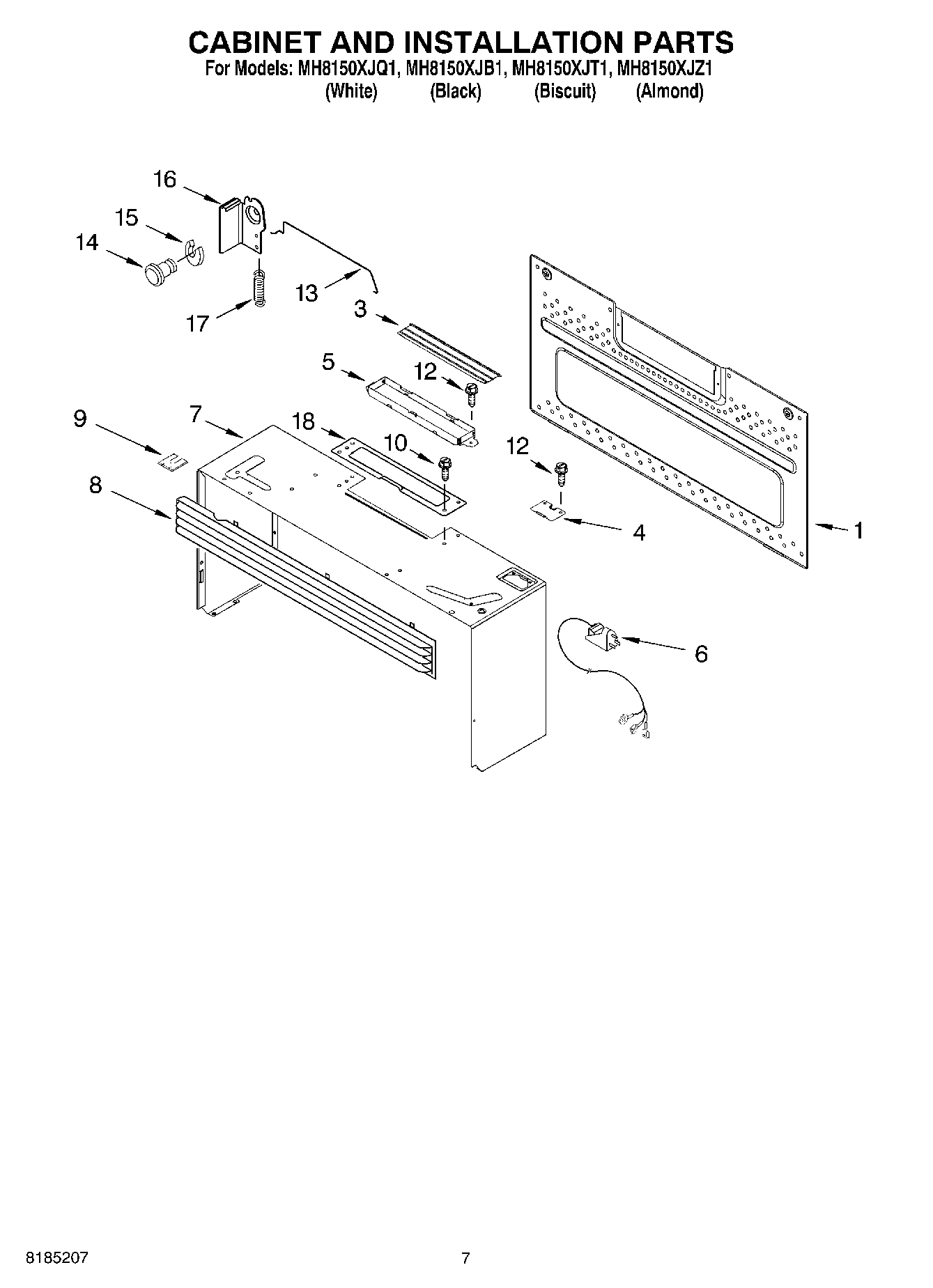

MH8150XJZ1 06 – CABINET AND INSTALLATION PARTSadmin2025-04-26T10:35:06+00:00MH8150XJZ1 06 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| 1 | WP8206174 Whirlpool Microwave Mounting Bracket |
| 3 | W10843943 Whirlpool Microwave Vent Damper |
| 4 | Lid, Power Cord |
| 6 | Cord, Power |
| 7 | Case, Outer (Biscuit) |
| 7 | Case, Outer (Almond) |
| 7 | Case, Outer (White) |
| 7 | Case, Outer (Black) |
| 8 | Grille, Vent (Almond) |
| 8 | 8183948 Whirlpool Microwave Oven Vent Grille |
| 8 | 8183852 Whirlpool Microwave Primary Vent Grille |
| 8 | 8183851 Whirlpool Microwave Oven Vent Grille Black |
| 9 | 8206334 Whirlpool Microwave Mounting Bracket |
| 10 | WP4393834 Whirlpool Microwave Screw |
| 12 | Screw |
| 13 | Rod |
| 14 | Latch, Pivot |
| 15 | E-Ring |
| 16 | Catch |
| 17 | Spring |
| 18 | Rack |
| 18 | Hardware, Installation |
| 18 | Miscellaneous |
| 18 | ACCESSORY PARTS |
| 18 | Upper Template |
| 18 | Wall Template |
| 18 | Filler Kit (Almond) |
| 18 | Filler Kit (Biscut) |
| 18 | Filler Kit (Black) |
| 18 | Filler Kit (White) |
| 18 | Plate, Damper |
| 18 | WP8169704 Whirlpool Screw |
