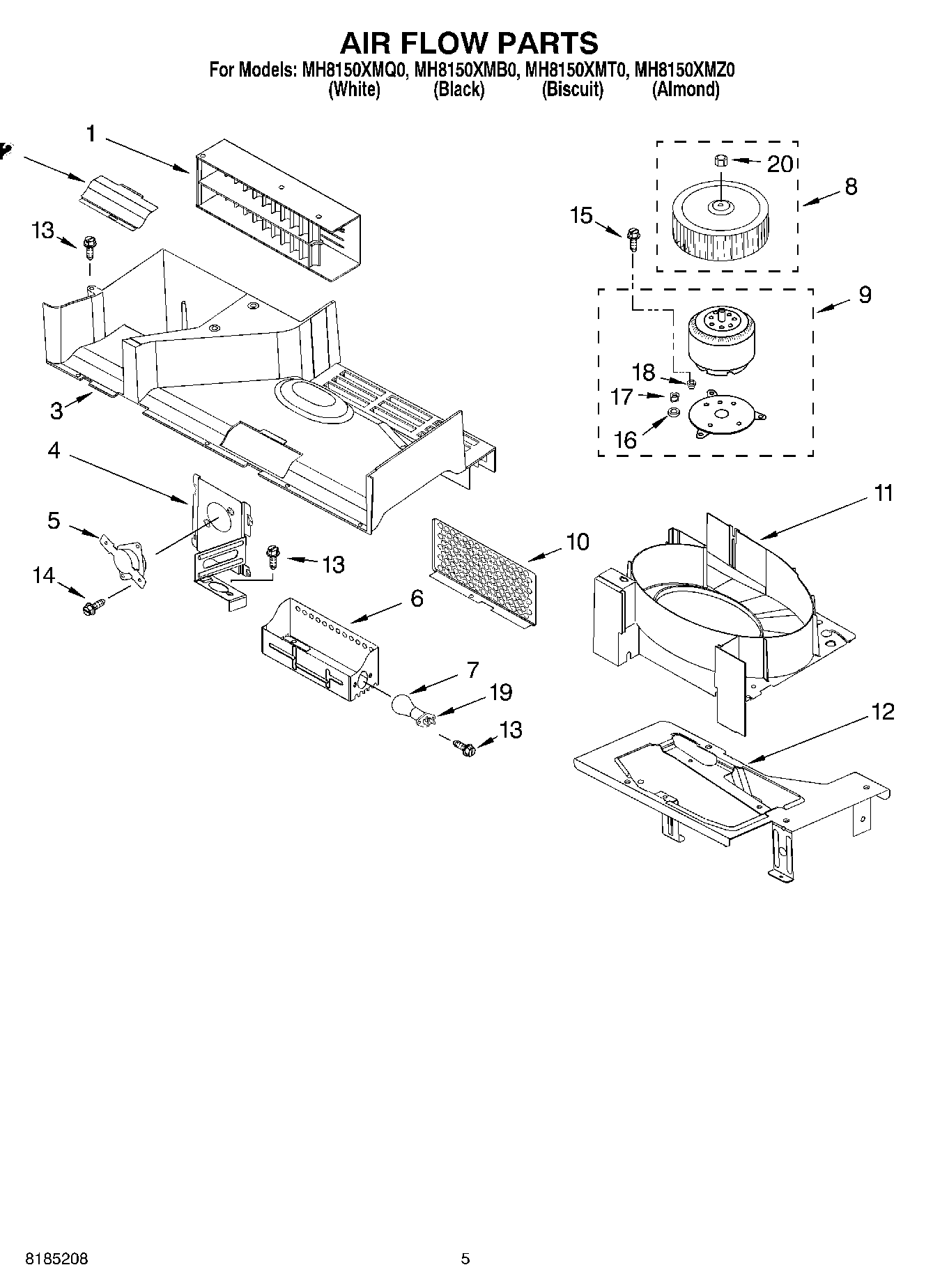

MH8150XMB0 04 – AIR FLOW PARTSadmin2025-04-26T10:35:36+00:00MH8150XMB0 04 – AIR FLOW PARTS
Products
| Position | Product |
|---|
| 1 | Deflector, Air |
| 2 | Reflector, Air |
| 3 | Duct, Air |
| 4 | Bracket, Thermostat |
| 5 | Thermostat |
| 6 | Housing, Lamp |
| 7 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 8 | Wheel, Fan |
| 9 | Motor, Fan |
| 10 | Shield |
| 11 | Housing, Fan |
| 12 | Bracket, Fan (Not Serviced) |
| 13 | Screw |
| 14 | Screw |
| 15 | Screw |
| 16 | Plate, Damper |
| 17 | Spacer, Copper Pipe |
| 18 | Cushion, Mtr |
| 19 | 8169539 Whirlpool Microwave Light Bulb Socket and Housing |
| 20 | Nut |
