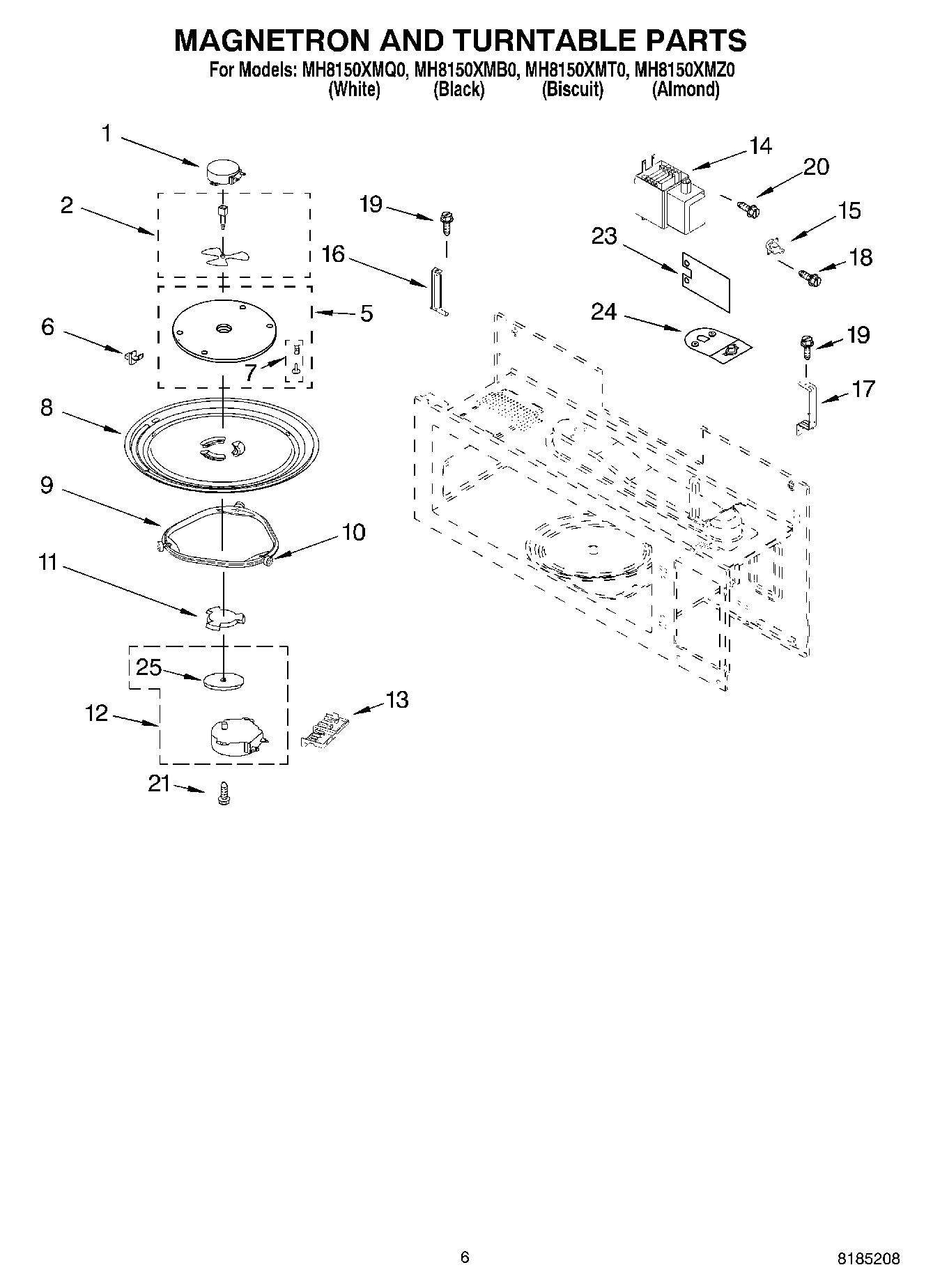

MH8150XMQ0 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
5	Cover, Inlet
6	W10315274 Whirlpool Microwave Meal Rack
7	Nail, Plastic
8	4393799 Whirlpool Microwave Glass Tray
9	W11252182 Whirlpool Glass Tray Support
10	Wheel, Plastic
11	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12	W10642989 Whirlpool Microwave Oven Turntable Motor
13	Cover, Terminal
14	W10245183 Whirlpool Microwave Magnetron
15	Thermostat
16	Holder, Connector (L)
17	Holder, Connector (R)
18	Screw
19	Screw
20	WP8181660 Whirlpool Screw
21	4393832 Whirlpool Microwave Screw
23	WP8184485 Whirlpool Microwave Shield
24	Thermostat And Bracket
25	8184109 Whirlpool Microwave Spacer
