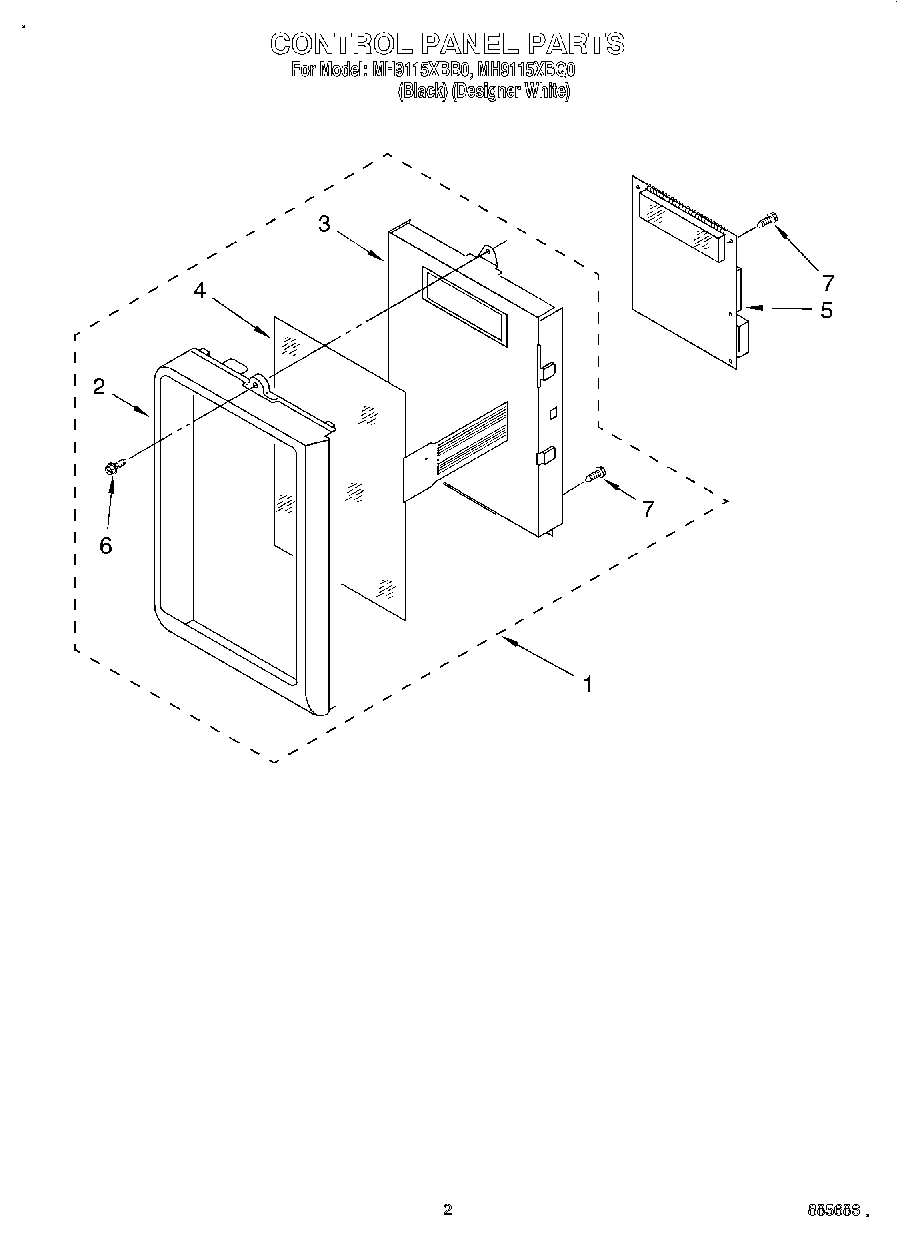

MH9115XBB0 02 – CONTROL PANEL

Written by

Products

Position	Product
1	Controller Sub Assembly (White Model)
1	Controller Sub Assembly (Black Model)
2	Control Panel (Black Model)
2	Control Panel (White Model)
3	Bracket, Control
4	Key Membrane (Black Model)
4	Key Membrane (White Model)
5	PCB Sub Assembly
6	Screw
6	Screw (Black Model)
7	Screw
