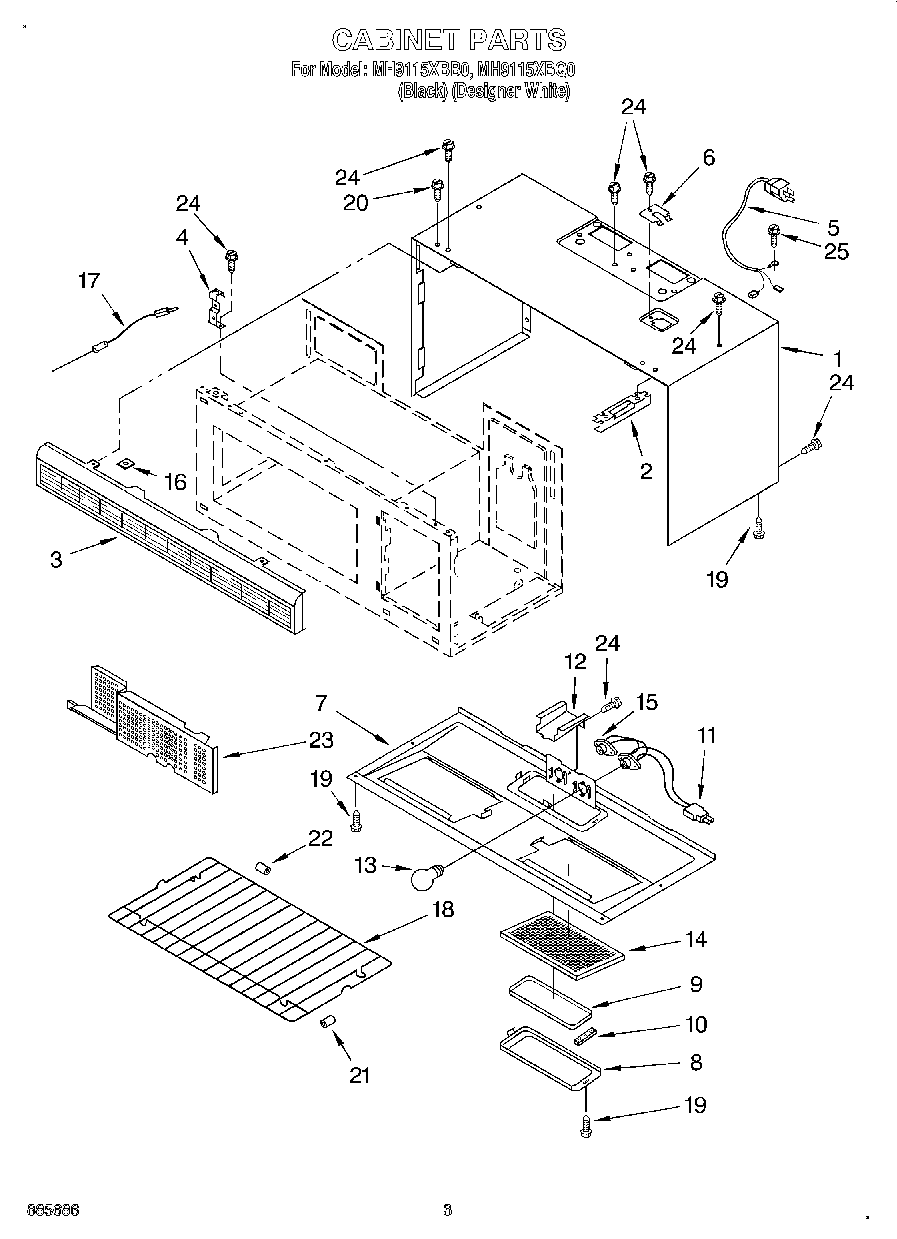

| 1 | Outer Case (White Model) |
| 1 | Outer Case (Black Model) |
| 2 | Mounting Bracket |
| 3 | Grille Vent (White Model) |
| 3 | Grille Vent (Black Model) |
| 4 | Bracket, Front |
| 5 | Power Cord |
| 6 | Cover, Power Cord |
| 7 | Base Plate (Black Model) |
| 7 | Base Plate (White Model) |
| 8 | Cover, Glass (White Model) |
| 8 | Cover, Glass (Black Model) |
| 9 | Glass, Lamp |
| 10 | Cushion, Glass |
| 11 | Lead Wire |
| 12 | Cover, Wire |
| 13 | 8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb |
| 14 | 4358853 Whirlpool Grease Filter |
| 15 | Lamp Holder |
| 16 | Bracket, Grille |
| 17 | Temperature Probe |
| 18 | Shelf Assembly |
| 19 | W11380570 Whirlpool Microwave Screw |
| 19 | Screw |
| 20 | Screw (Black Model) |
| 20 | Screw (White Model) |
| 21 | Bushing Shelf |
| 22 | Bushing Shelf |
| 23 | Bracket, Inlet |
| 24 | Screw |
| 25 | 4344826 Whirlpool Refrigerator Screw |
| 25 | Blower Plate |
