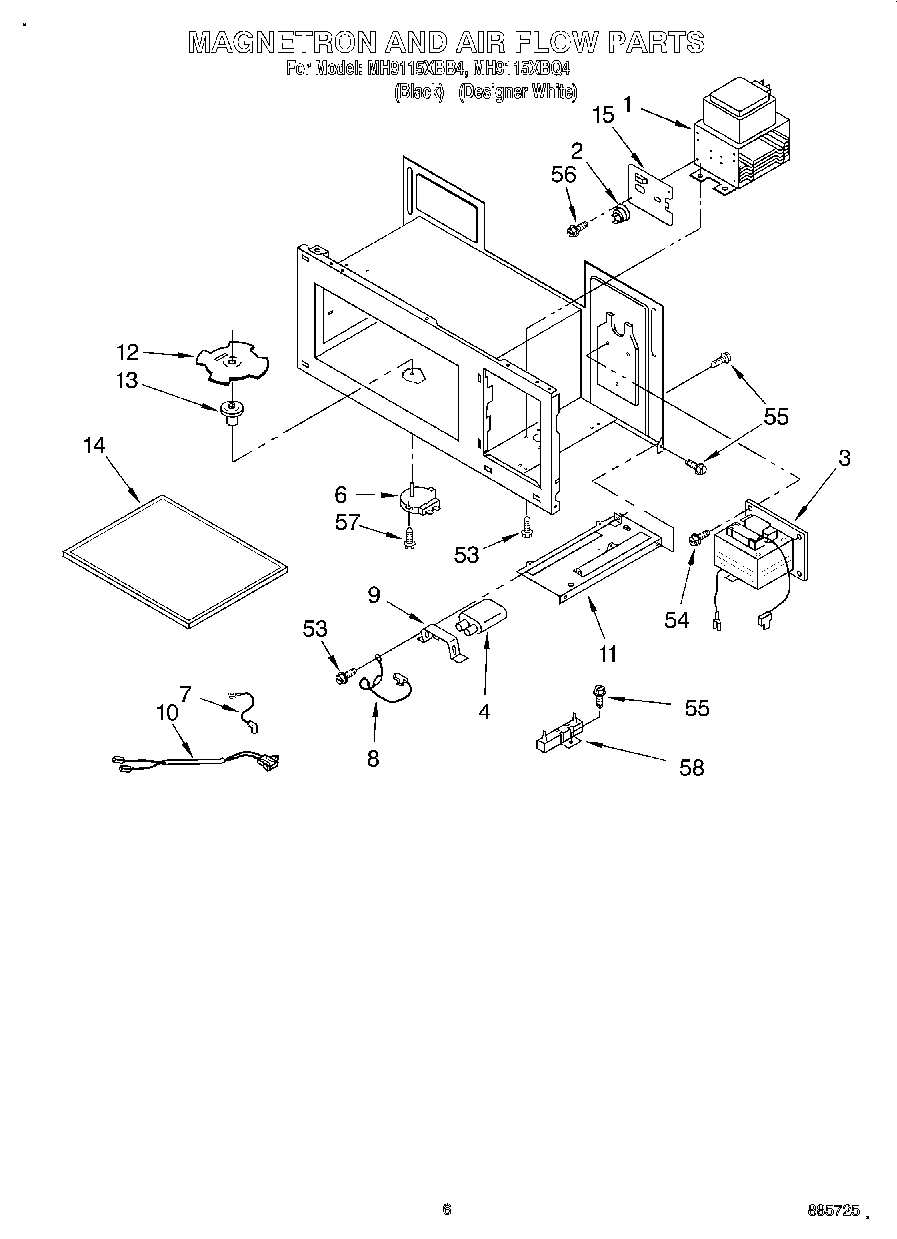

MH9115XBB4 05 – MAGNETRON AND AIR FLOW

MH9115XBB4 05 – MAGNETRON AND AIR FLOW

Written by

in

MH9115XBB4 05 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Magnetron
2Thermostat
3Transformer
4Capacitor
6Motor, Synchronous
7H.V. Cable
8H.V. Diode-Cable
9Bracket, H.V.C.
10Lead Wire
11Plate, Bottom
12Stirrer Fan Disk
13Holder Disk
14Ceramic Plate
15Bracket, Thermostat
534344826 Whirlpool Refrigerator Screw
54WP3400094 Whirlpool Screw
55W11380570 Whirlpool Microwave Screw
56Screw
57Screw
58Resistor, Monitor
