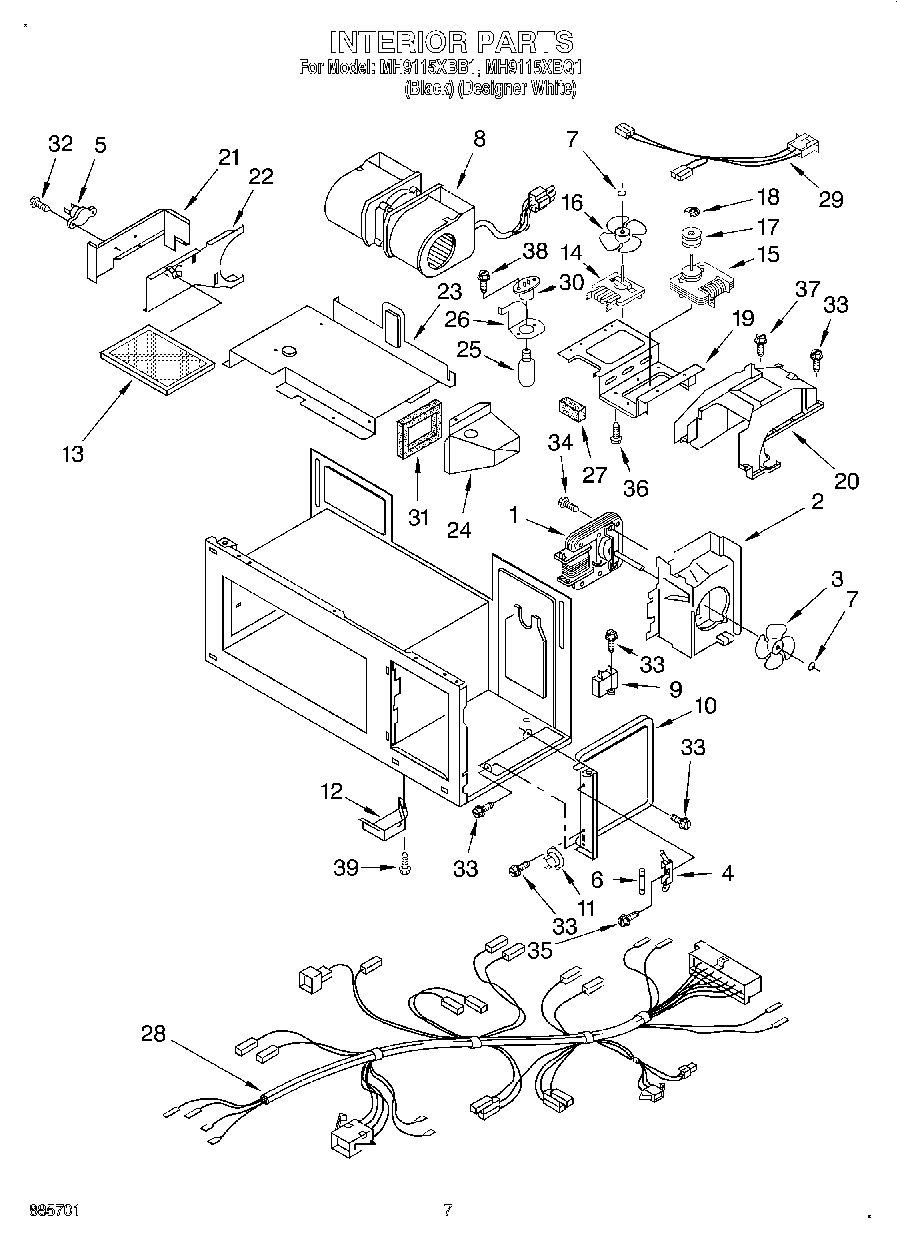

MH9115XBQ1 06 – INTERIOR

Products

Position	Product
1	Motor, Fan
2	Guide Suction
3	Blower Fan
4	Holder, Fuse
5	Thermostat
6	Fuse
7	Push Nut
8	Motor, Ventilation
9	Motor Condenser
10	Guide Air
11	Base Thermostat
12	Cover, Connector
13	Charcoal Filter
14	Motor, Tower
15	Motor, Circulation
16	8184292 Whirlpool Microwave Fan Blade
17	Pulley, Motor
18	E-Ring
19	Bracket, C-Motor
20	Air Duct
21	Guide, Chamber-A
22	Guide, Chamber-B
23	Guide, Chamber
24	Guide, Air Duct
25	WPA3073101 Whirlpool Light Bulb
26	Cover, Oven Lamp
27	Cushion
28	Lead Wire
29	Lead Wire
30	Lamp Holder
31	Cushion
32	Screw
33	W11380570 Whirlpool Microwave Screw
34	Screw
35	W10815455 Whirlpool Screw
36	4344826 Whirlpool Refrigerator Screw
37	Screw
38	Screw
39	Screw
