MH9115XBQ1 07 – INSTALLATION – Aparts

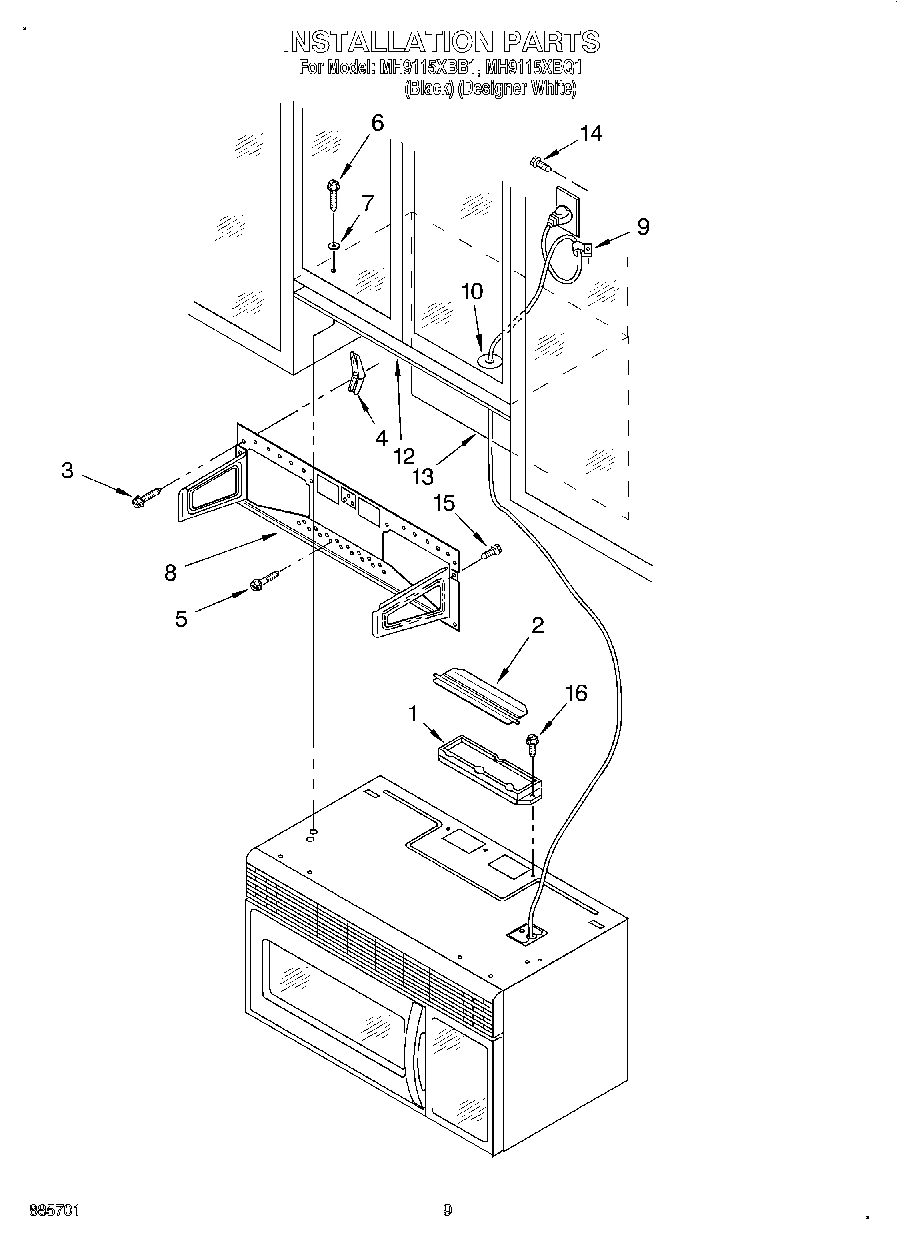

MH9115XBQ1 07 – INSTALLATION

Products

Position	Product
1	Exhaust Adapter
2	Exhaust Damper
3	WP8169704 Whirlpool Screw
4	Toggle Bolt
5	Lag Screw
6	Screw
7	Washer
8	Plate, Mounting
9	8534021 Whirlpool Clamp
10	Bushing
12	Template, Cabinet
13	Template, Wall
14	WP98008545 Whirlpool Screw
15	W11380570 Whirlpool Microwave Screw
16	Screw
