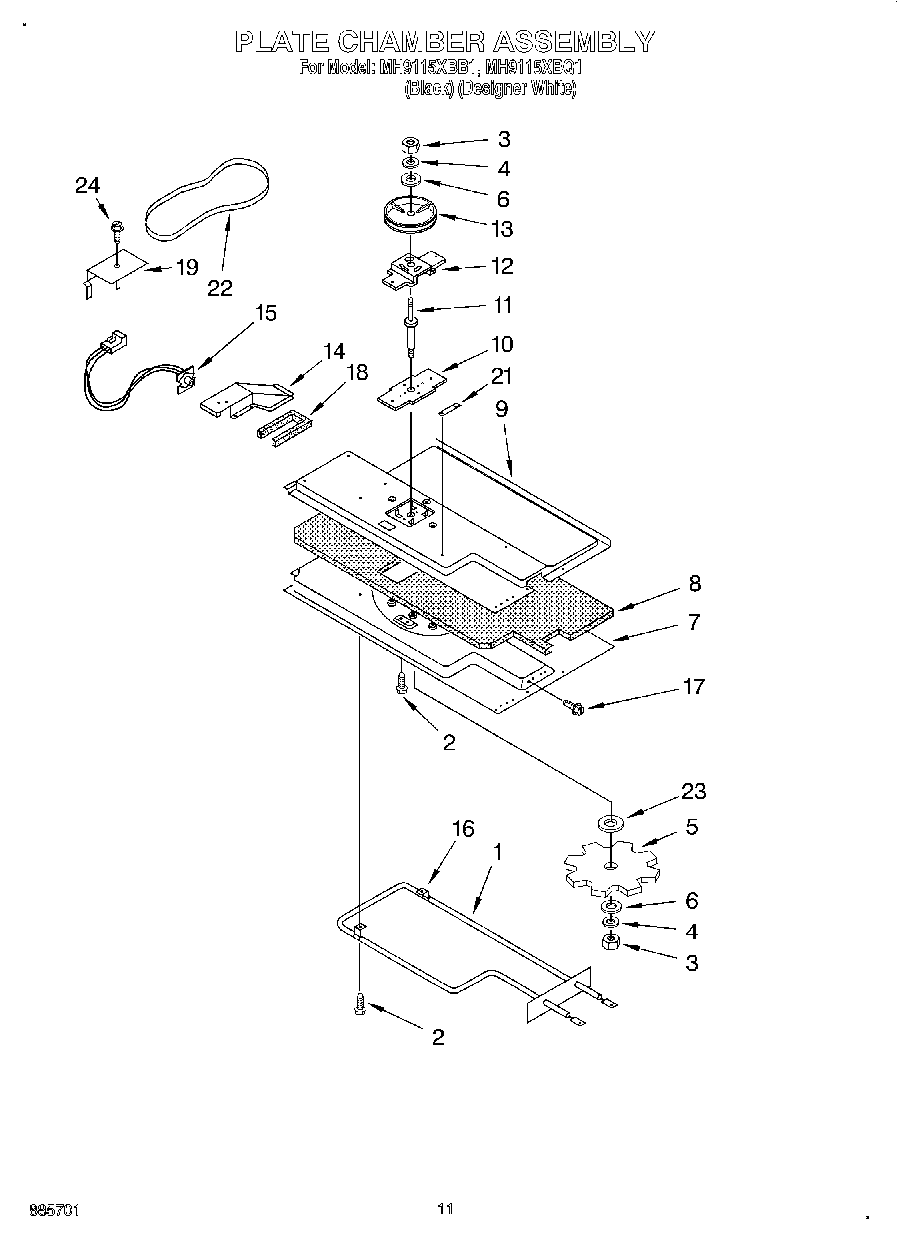

MH9115XBQ1 08 – PLATE CHAMBER ASSEMBLY

Products

Position	Product
1	Element
2	WP3196557 Whirlpool Screw
3	Nut
4	WP8533914 Whirlpool Lock
5	Fan
6	Washer
7	Plate, Chamber
8	Insulation
9	Plate, Outer
10	Plate, Bearing
11	Bearing Assembly
12	Holder, Bearing
13	Pulley
14	Air Tunnel
15	Sensor
16	Hanger, Element
17	4344826 Whirlpool Refrigerator Screw
18	Cushion
19	Bracket, Sensor
21	Lug
22	Belt
23	Plate, Fan
24	Screw
