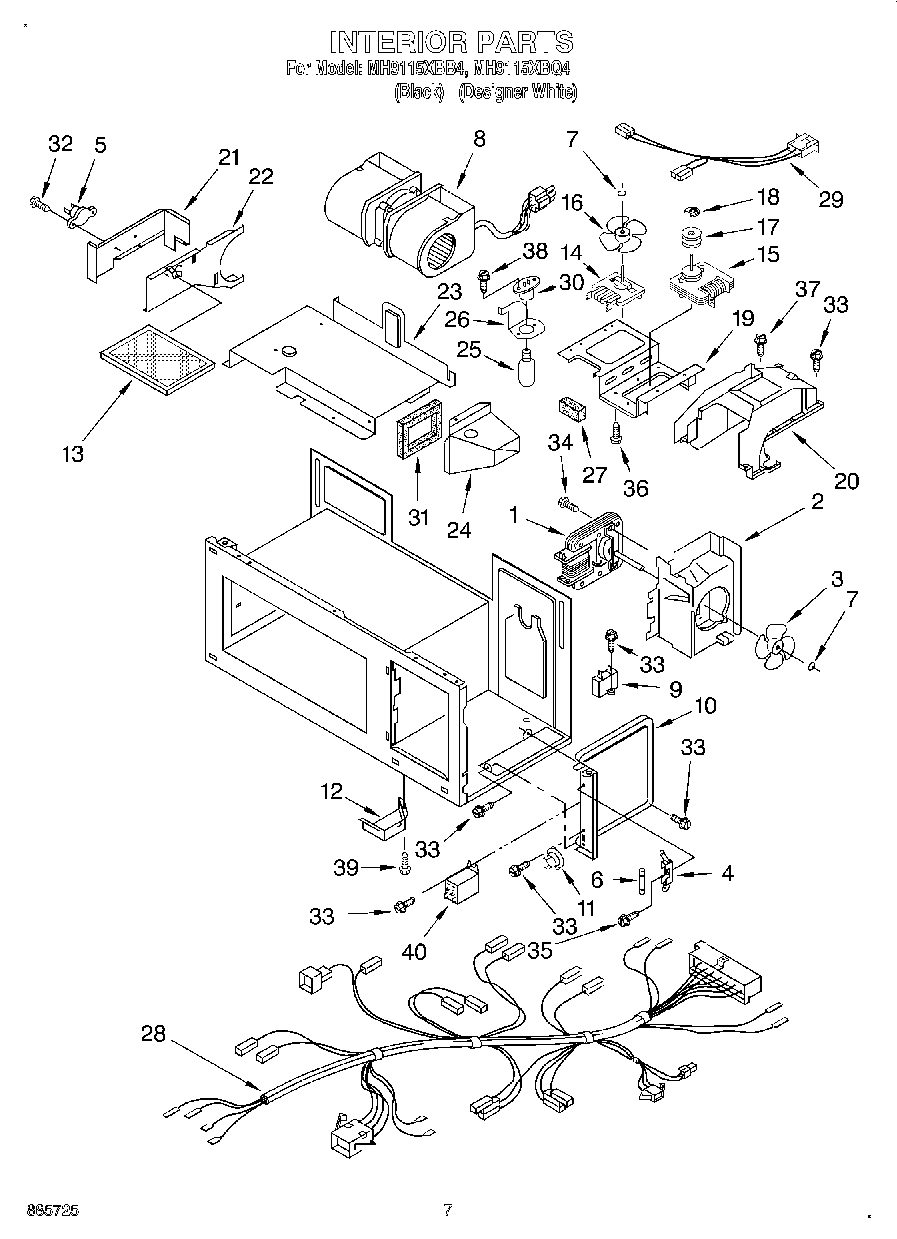

| 1 | Motor, Fan |
| 2 | Guide Suction |
| 3 | Blower Fan |
| 4 | Holder, Fuse |
| 5 | Thermostat |
| 6 | Fuse |
| 7 | Push Nut |
| 8 | Motor, Ventilation |
| 9 | Motor Condenser |
| 10 | Guide Air |
| 11 | Base Thermostat |
| 12 | Cover, Connector |
| 13 | Charcoal Filter |
| 14 | Motor, Tower |
| 15 | Motor, Circulation |
| 16 | 8184292 Whirlpool Microwave Fan Blade |
| 17 | Pulley, Motor |
| 18 | E-Ring |
| 19 | Bracket, C-Motor |
| 20 | Air Duct |
| 21 | Guide, Chamber-A |
| 22 | Guide, Chamber-B |
| 23 | Guide, Chamber |
| 24 | Guide, Air Duct |
| 25 | WPA3073101 Whirlpool Light Bulb |
| 26 | Cover, Oven Lamp |
| 27 | Cushion |
| 28 | Lead Wire |
| 29 | Lead Wire |
| 30 | Lamp Holder |
| 31 | Cushion |
| 32 | Screw |
| 33 | W11380570 Whirlpool Microwave Screw |
| 34 | Screw |
| 35 | W10815455 Whirlpool Screw |
| 36 | 4344826 Whirlpool Refrigerator Screw |
| 37 | Screw |
| 38 | Screw |
| 39 | Screw |
| 40 | A.C. Relay |
