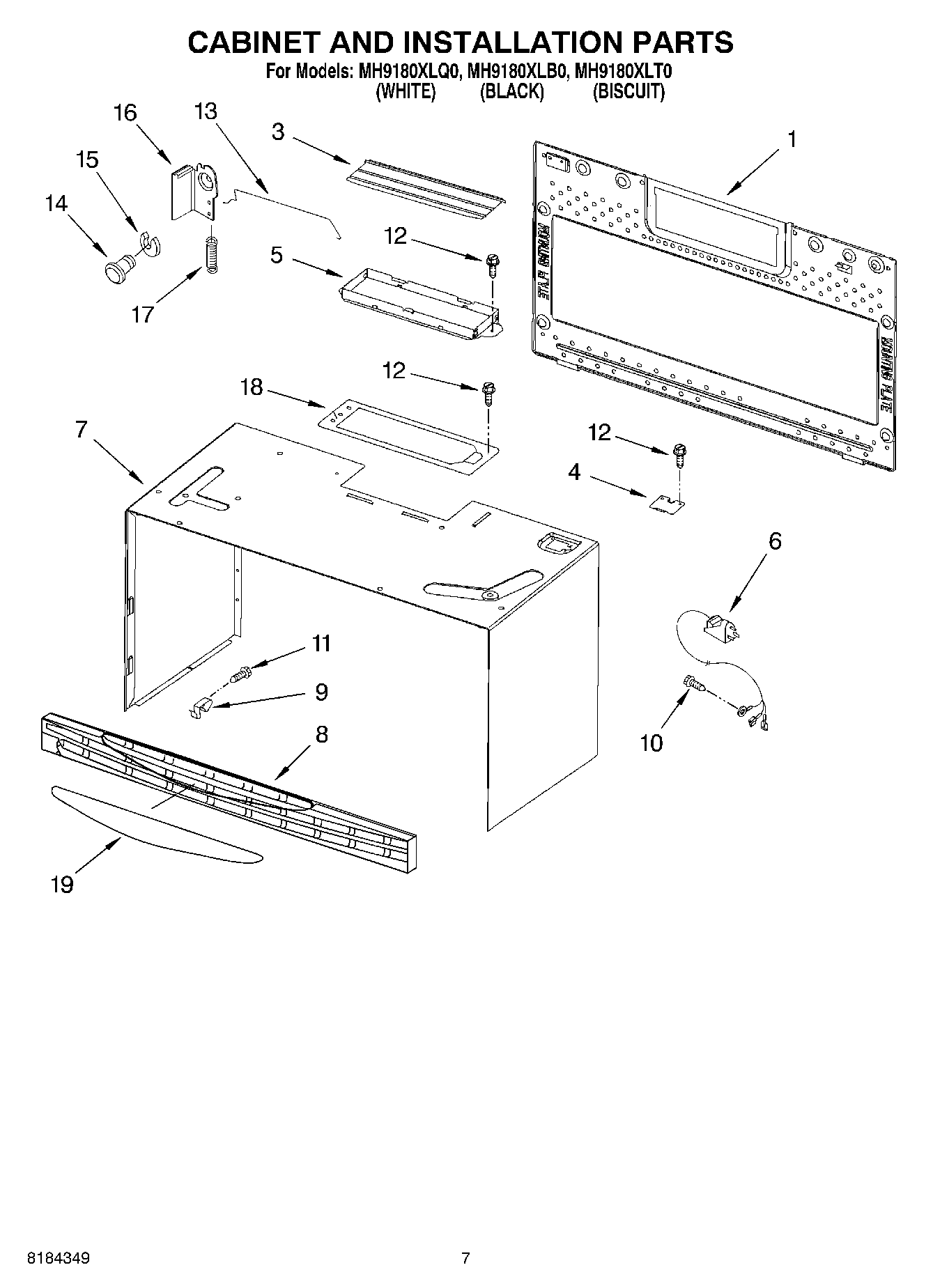

MH9180XLQ0 06 – CABINET AND INSTALLATIONadmin2025-04-26T10:35:03+00:00MH9180XLQ0 06 – CABINET AND INSTALLATION
Products
| Position | Product |
|---|
| 1 | Plate, Mounting |
| 3 | W10843943 Whirlpool Microwave Vent Damper |
| 4 | Lid, Power Cord |
| 6 | Cord, Power |
| 7 | Case, Outer (Black) |
| 7 | Case, Outer (Biscuit) |
| 7 | Case, Outer (White) |
| 8 | Grille, Vent (Biscuit) |
| 8 | Grille, Vent (White) |
| 8 | Grille, Vent (Black) |
| 9 | W10615742 Whirlpool Microwave Clip |
| 10 | 4393836 Whirlpool Microwave Screw |
| 11 | Screw |
| 12 | W11380570 Whirlpool Microwave Screw |
| 13 | Rod |
| 14 | Latch, Pivot |
| 15 | E-Ring |
| 16 | Catch |
| 17 | Spring |
| 18 | Plate, Damper |
| 19 | Plate, Grille (Biscuit Miscellaneous) |
| 19 | Plate, Grille (White) |
| 19 | WP8169704 Whirlpool Screw |
| 19 | Upper Template |
| 19 | Hardware, Installation |
| 19 | Template, Wall |
| 19 | Plate, Grille (Black) |
