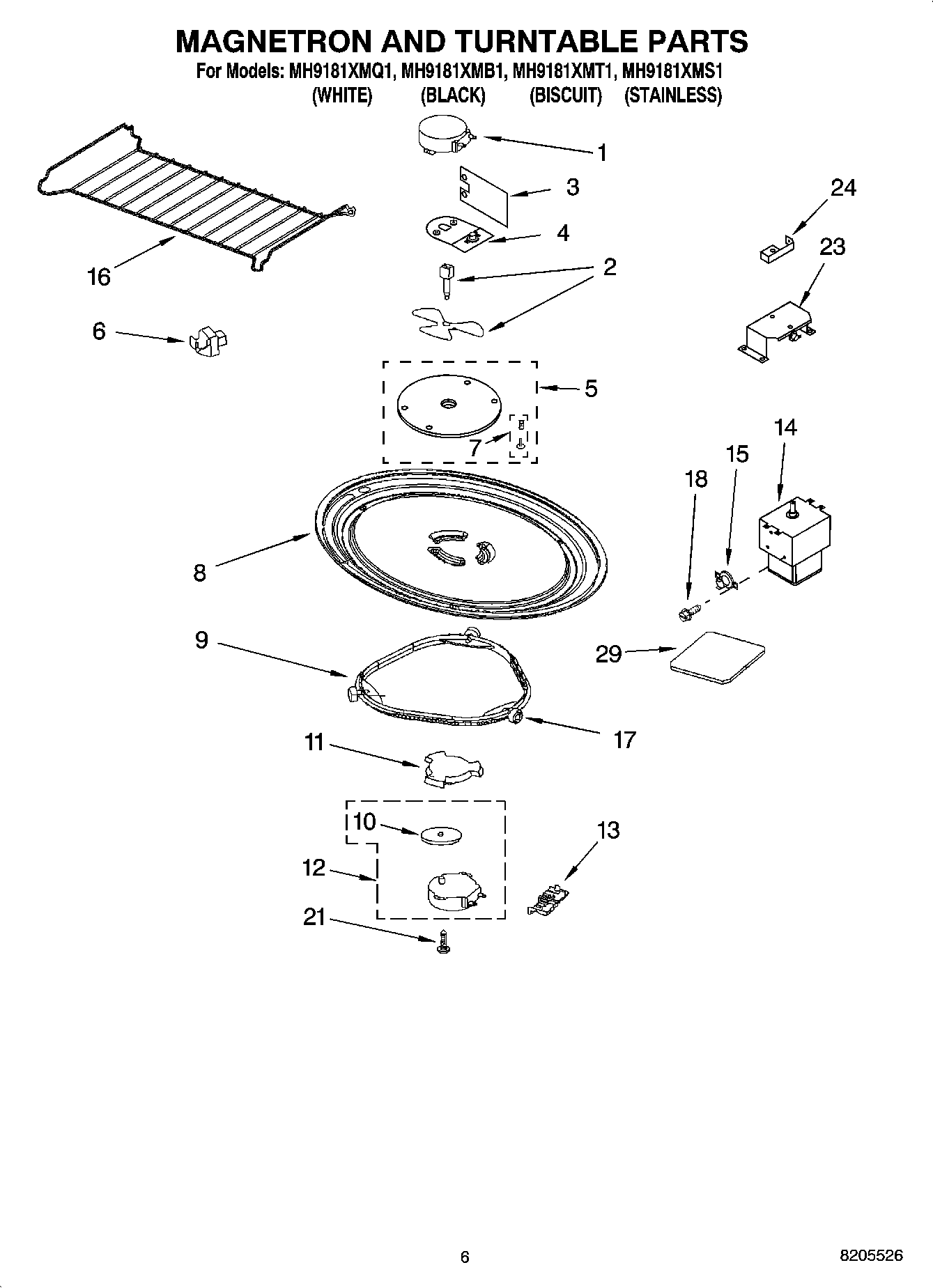

MH9181XMQ1 05 – MAGNETRON AND TURNTABLE PARTS

Products

Position	Product
1	Motor, Stirrer
2	Stirrer Shaft/Blade
3	WP8184485 Whirlpool Microwave Shield
4	Thermostat And Bracket
5	Cover, Inlet Includes Nails and Bushings
6	Hook, Rack (4)
7	Nails/Bushings (4 of each)
8	4393799 Whirlpool Microwave Glass Tray
9	W11252182 Whirlpool Glass Tray Support
10	8184109 Whirlpool Microwave Spacer
11	W10435116 Whirlpool Microwave Turntable Roller Drive Coupling
12	W10642989 Whirlpool Microwave Oven Turntable Motor
13	Cover, Terminal
14	8206317 Whirlpool Microwave Magnetron
15	Thermostat
16	Rack
17	Wheel, Plastic
18	Screw
21	4393832 Whirlpool Microwave Screw
23	Thermostat/Bracket
24	Bracket, Plug
29	Foil, Lamp
