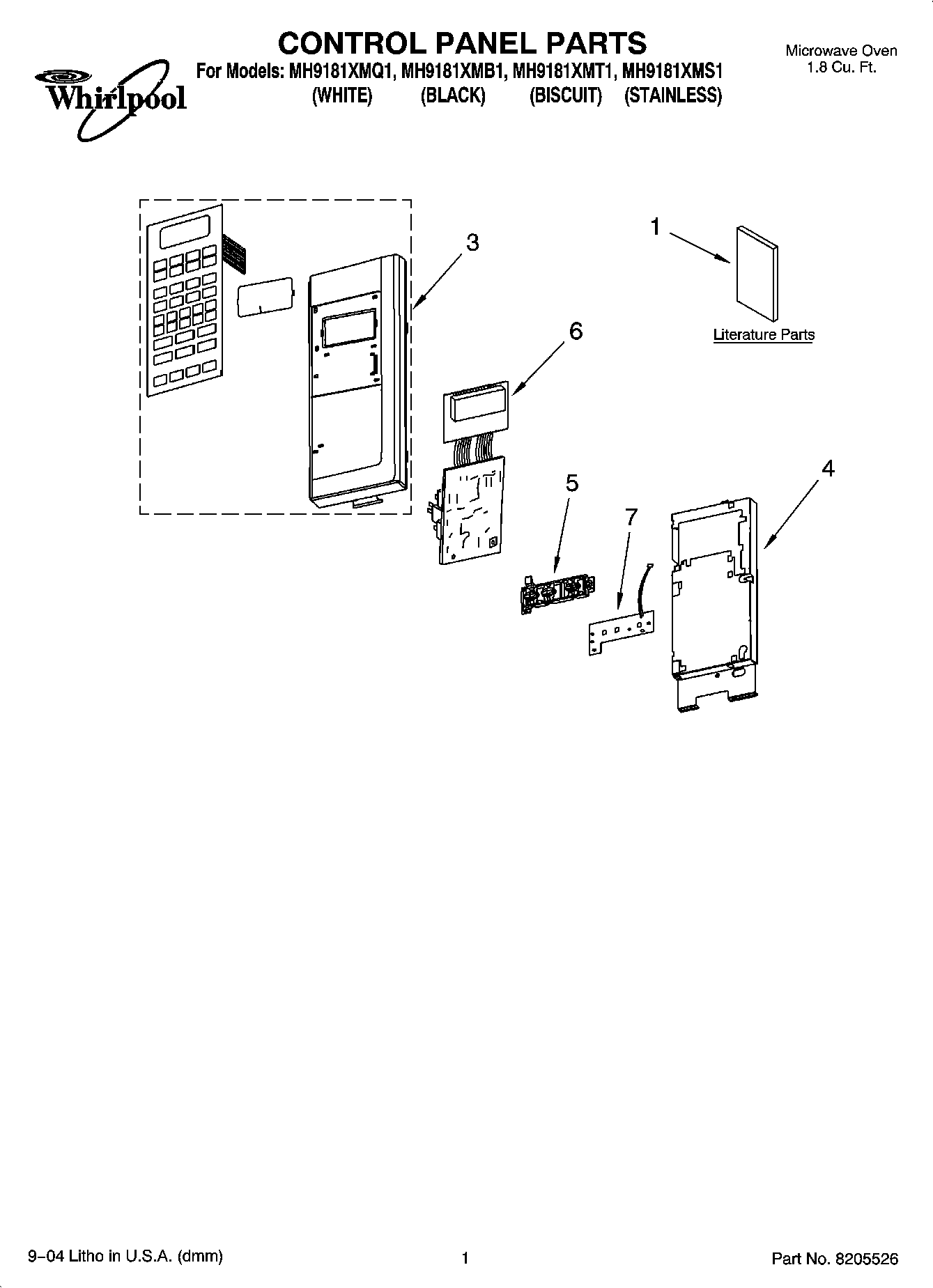

MH9181XMT1 01 – CONTROL PANEL PARTS

MH9181XMT1 01 – CONTROL PANEL PARTS

Written by

in

MH9181XMT1 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Instructn, Install)
1Literature Parts (Cook Guide Label)
1Literature Parts (Tech Sheet)
1Literature Parts (U & C Guide)
3Panel Asy, Control Includes Lens and Membrane Switch (White)
3Panel Asy, Control Includes Lens and Membrane Switch (Black)
3Panel Asy, Control Includes Lens and Membrane Switch (Biscuit)
3Panel Asy, Control Includes Lens and Membrane Switch (Stainless)
4Bracket, Control
5Button, Control (Black/Stainless)
5Pushbutton
5Button, Control (Biscuit)
6Microcomputer
7Keyboard Assy
