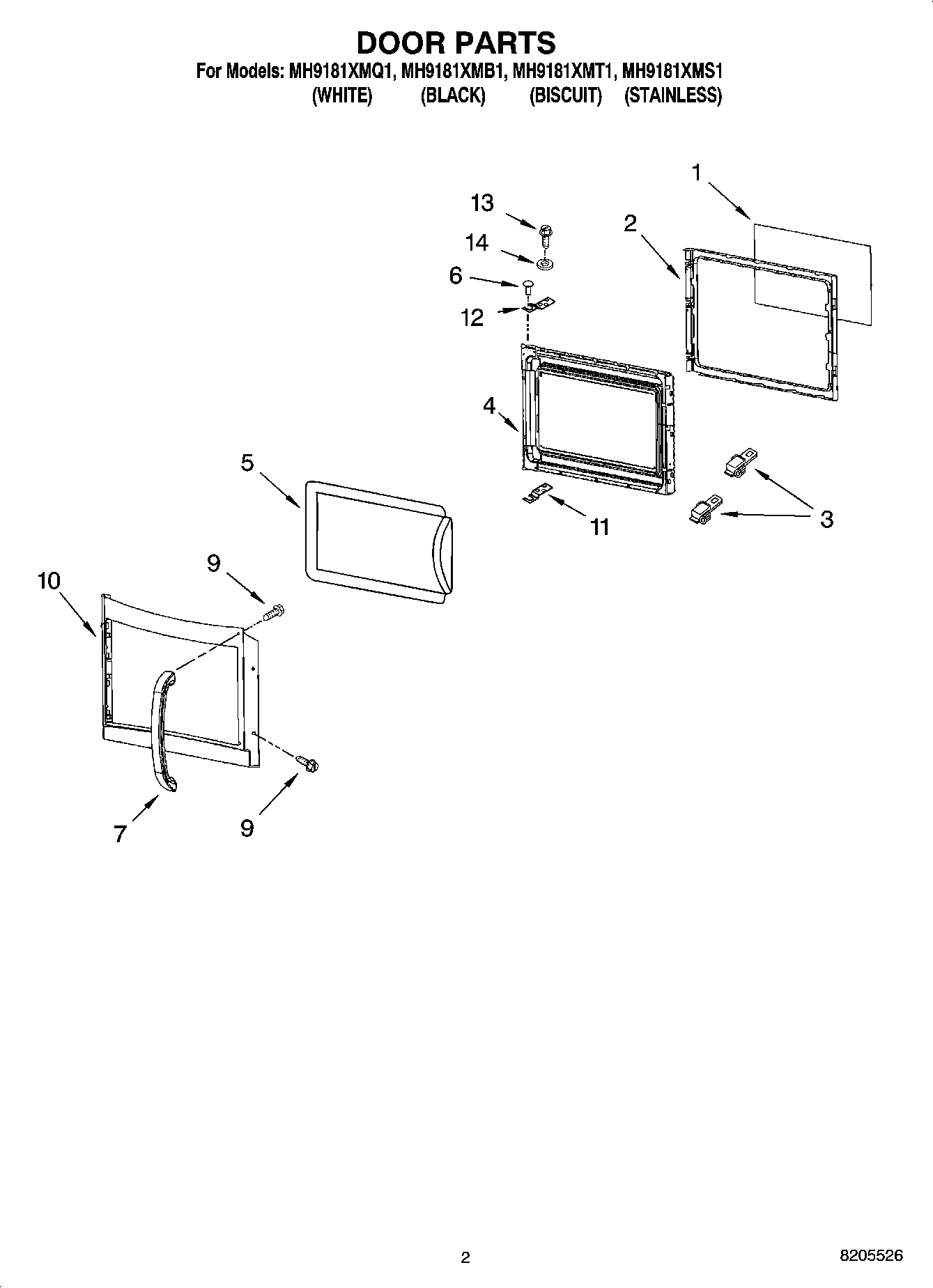

MH9181XMT1 02 – DOOR PARTSadmin2025-04-26T08:39:21+00:00MH9181XMT1 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Film, Back Included with 4 |
| 2 | Frame, Inner |
| 3 | Latch, Door |
| 4 | Body Asy, Door Includes 1 (White) |
| 4 | Body Asy, Door Includes 1 (Biscuit) |
| 4 | Body Asy, Door Includes 1 (Black) |
| 5 | Glass, Outer Plast Included with 10 |
| 6 | Pivot, Door |
| 7 | 8206177 Whirlpool Microwave Door Handle |
| 7 | Handle, Door (Stainless) |
| 7 | Handle, Door (White) |
| 7 | Handle, Door (Biscuit) |
| 9 | 8169479 Whirlpool Microwave Screw |
| 10 | Frame Asy, Outer Includes 5 (Biscuit) |
| 10 | Frame Asy, Outer Includes 5 (Stainless) |
| 10 | Frame Asy, Outer Includes 5 (White) |
| 10 | Frame Asy, Outer Includes 5 (Black) |
| 11 | Lower Hinge |
| 12 | Upper Hinge |
| 13 | 8169480 Whirlpool Microwave Screw |
| 14 | WP8533914 Whirlpool Lock |
