MHE10RW0 03 – INSTALLATION
Written by
in

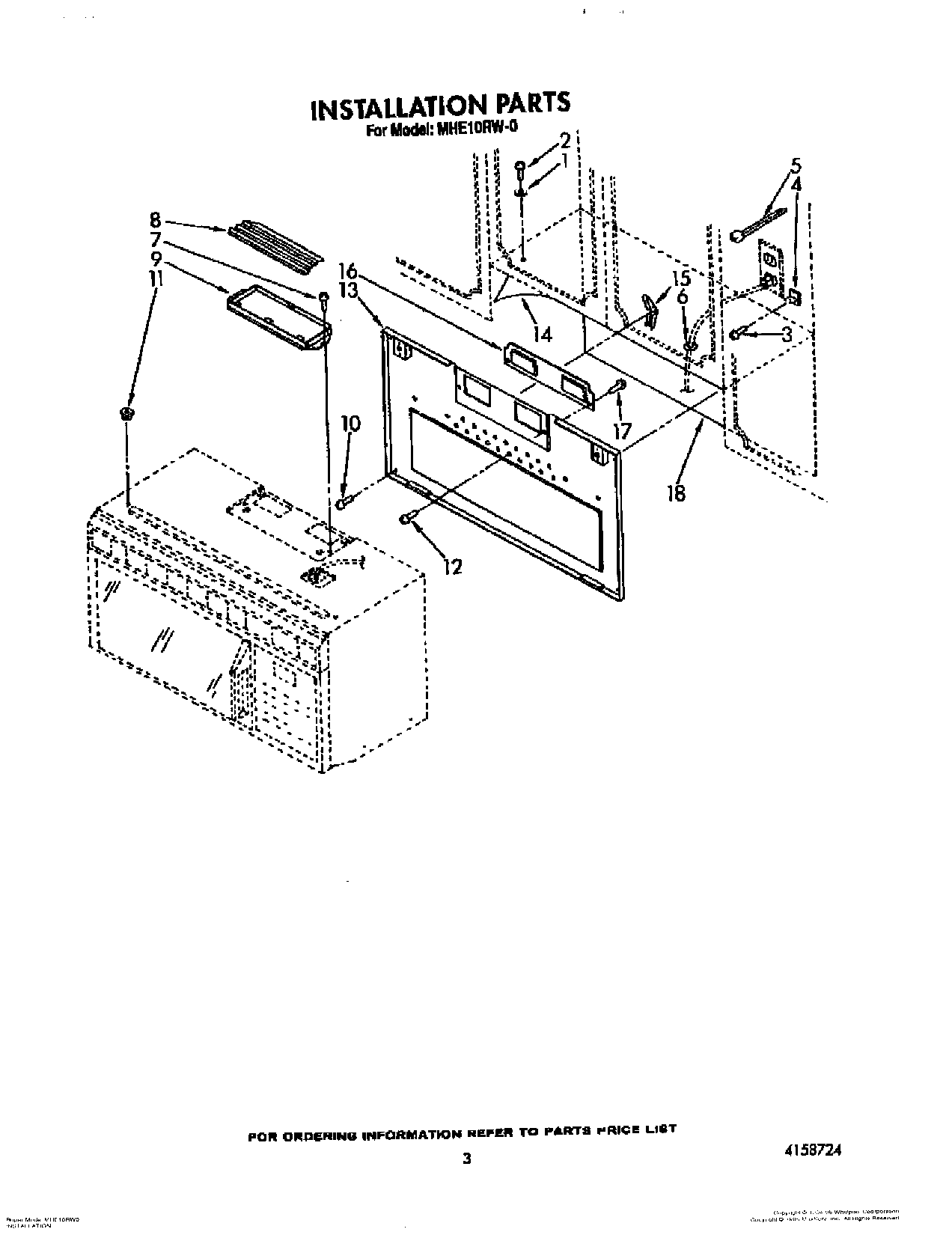

MHE10RW0 03 – INSTALLATION
Products
Position
Product
1
Washer
2
Screw
3
Screw
4
Retainer Holder (2)
5
WPW10339879 Whirlpool Wire Tie
6
Cord Bushing
7
Screw (2)
8
Exhaust Damper
9
Exhaust Adapter
10
WP8169704 Whirlpool Screw
11
Top Cabinet Nut (2)
12
Lag Screw
13
Mounting Plate Assy.
14
Top Cabinet Template
15
Toggle Bolt
16
Vent Cover
17
Screw
18
Wall Template
←
