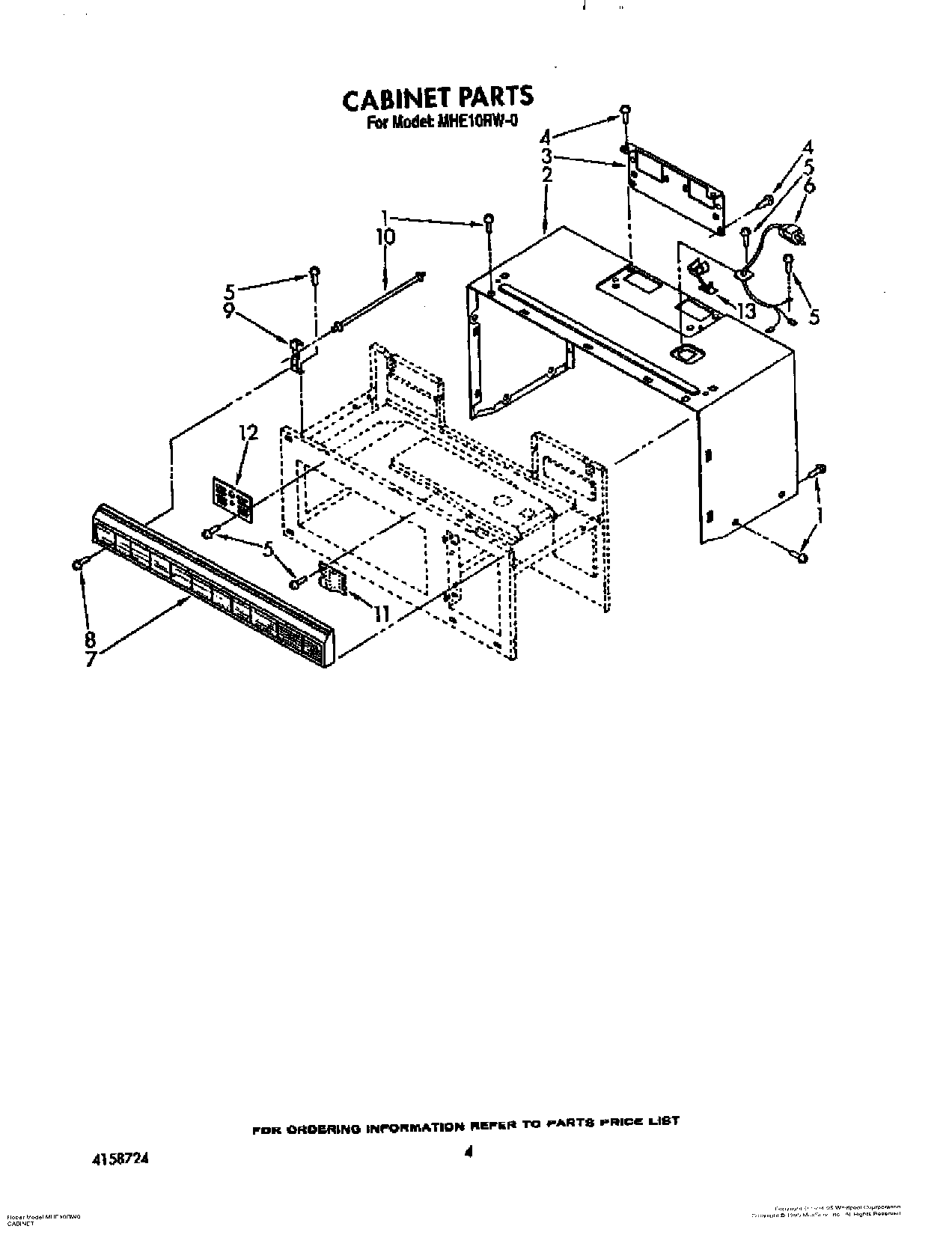

MHE10RW0 04 – CABINET

Products

Position	Product
1	Screw
2	Outer Case
3	Vent Fan Mounting Bracket
4	Screw (3)
5	Screw
6	Power Cord Assy.
7	Vent Grille
8	Screw (3)
9	Front Bracket
10	Mounting Rod
11	Sealed Plate R.H.
12	Sealed Plate L.H.
13	Strain Relief
