MHE10RXB0 02 – INSTALLATION

MHE10RXB0 02 – INSTALLATION

Written by

in

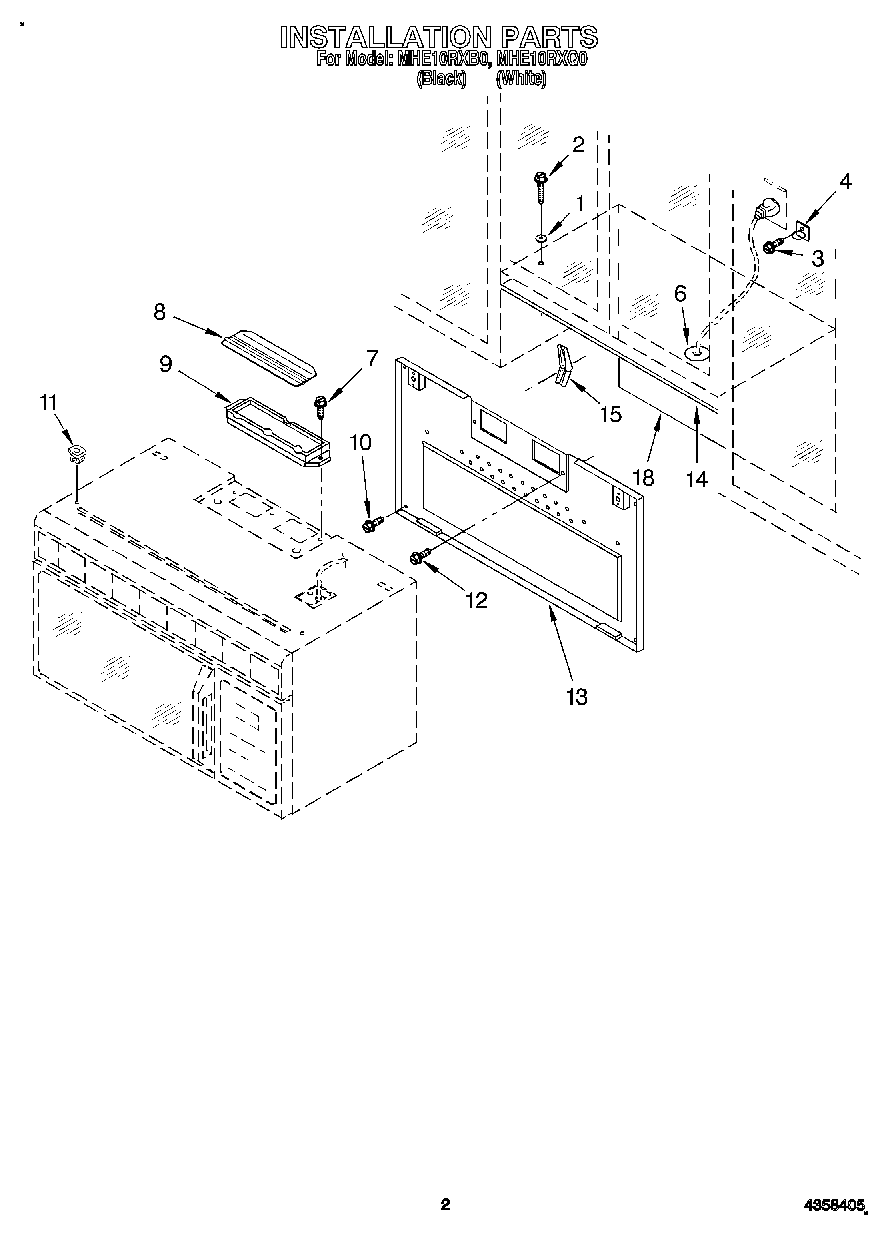

MHE10RXB0 02 – INSTALLATION

Products

PositionProduct
1Washer
2Screw
3WP98008545 Whirlpool Screw
48534021 Whirlpool Clamp
6Bushing
7Screw
8Exhaust Damper
9Exhaust Adapter
10WP8169704 Whirlpool Screw
11Top Cabinet Nut (2)
12Lag Screw
13Mounting Plate Assy.
14Top Cabinet Template
15Toggle Bolt
18Wall Template
