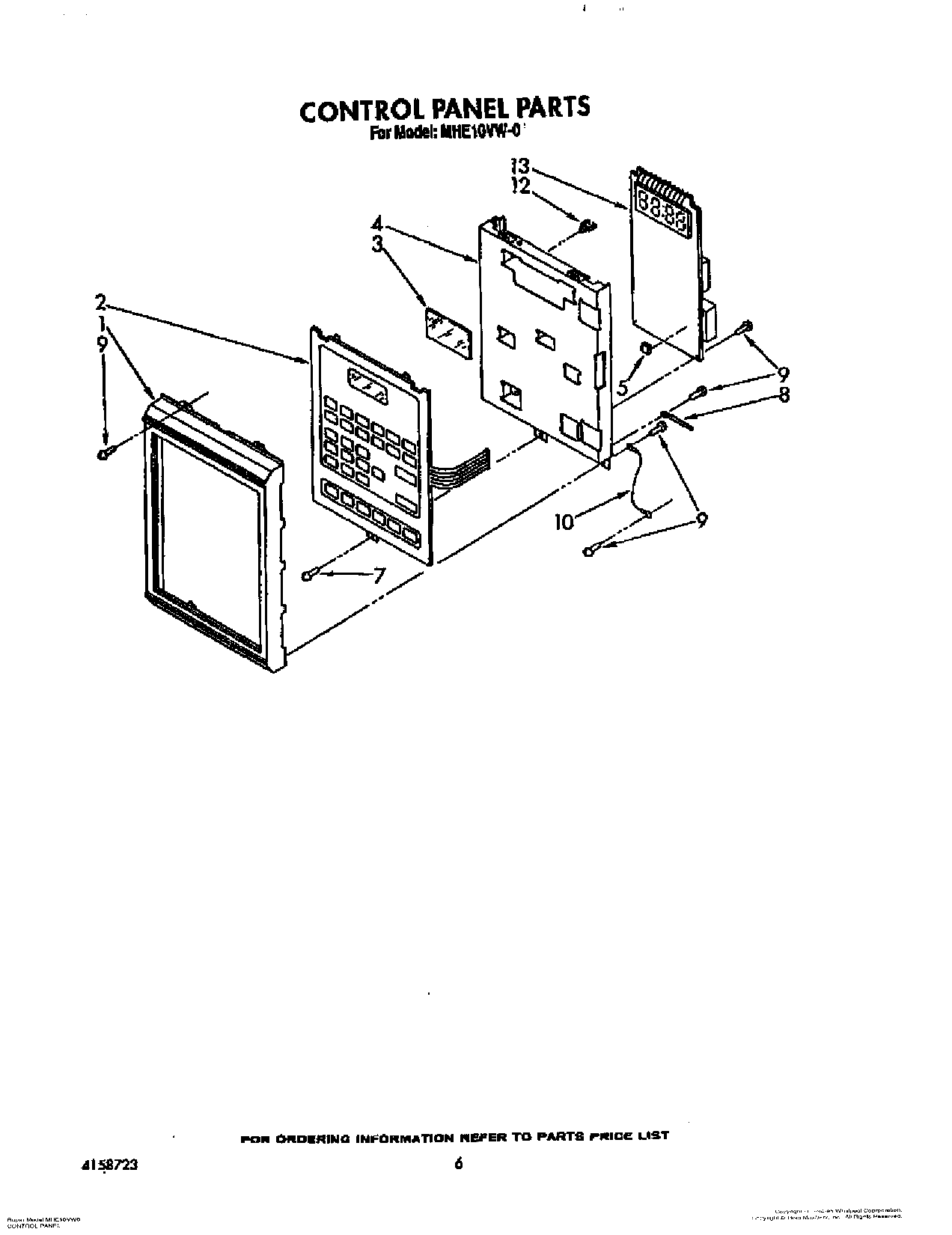

MHE10VW0 06 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Control Panel |
| 2 | Switch, Membrane |
| 3 | Digitron Window |
| 4 | Control Bracket |
| 5 | Digitron Cushion (3) |
| 7 | Screw (2) |
| 9 | Screw |
| 10 | Lead Wire |
| 12 | Holder, Wire |
| 13 | Microcomputer |
