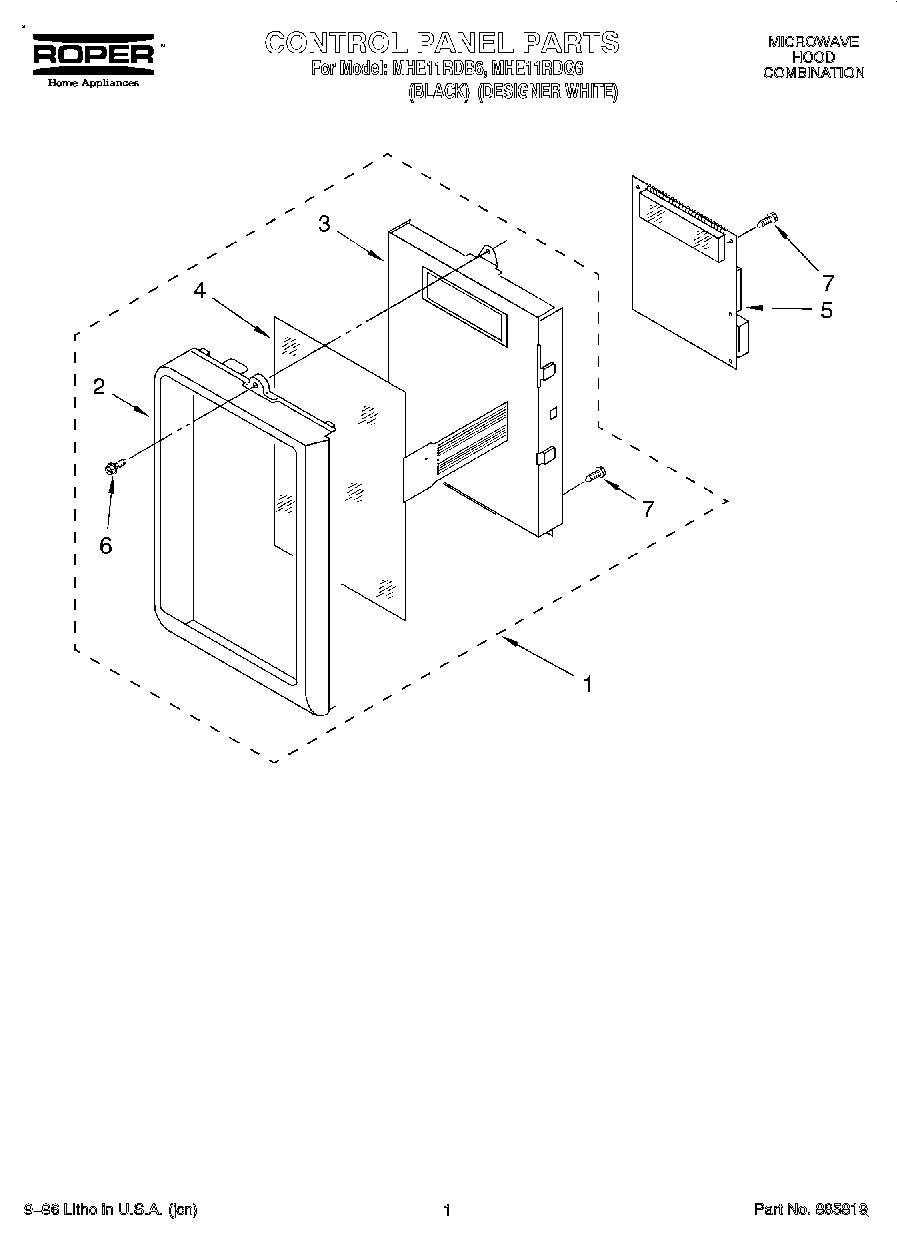

MHE11RDB6 01 – CONTROL PANEL

Written by

Products

Position	Product
1	Controller Sub Assy. (Black Model)
1	Controller Sub Assy. (White Model)
2	Control Panel (White Model)
2	Control Panel (Black Model)
3	Bracket, Control
4	Key Membrane (White Model)
4	Key Membrane (Black Model)
5	PCB Sub Assy.
6	Screw (Black Model)
6	Screw
7	W11380570 Whirlpool Microwave Screw
