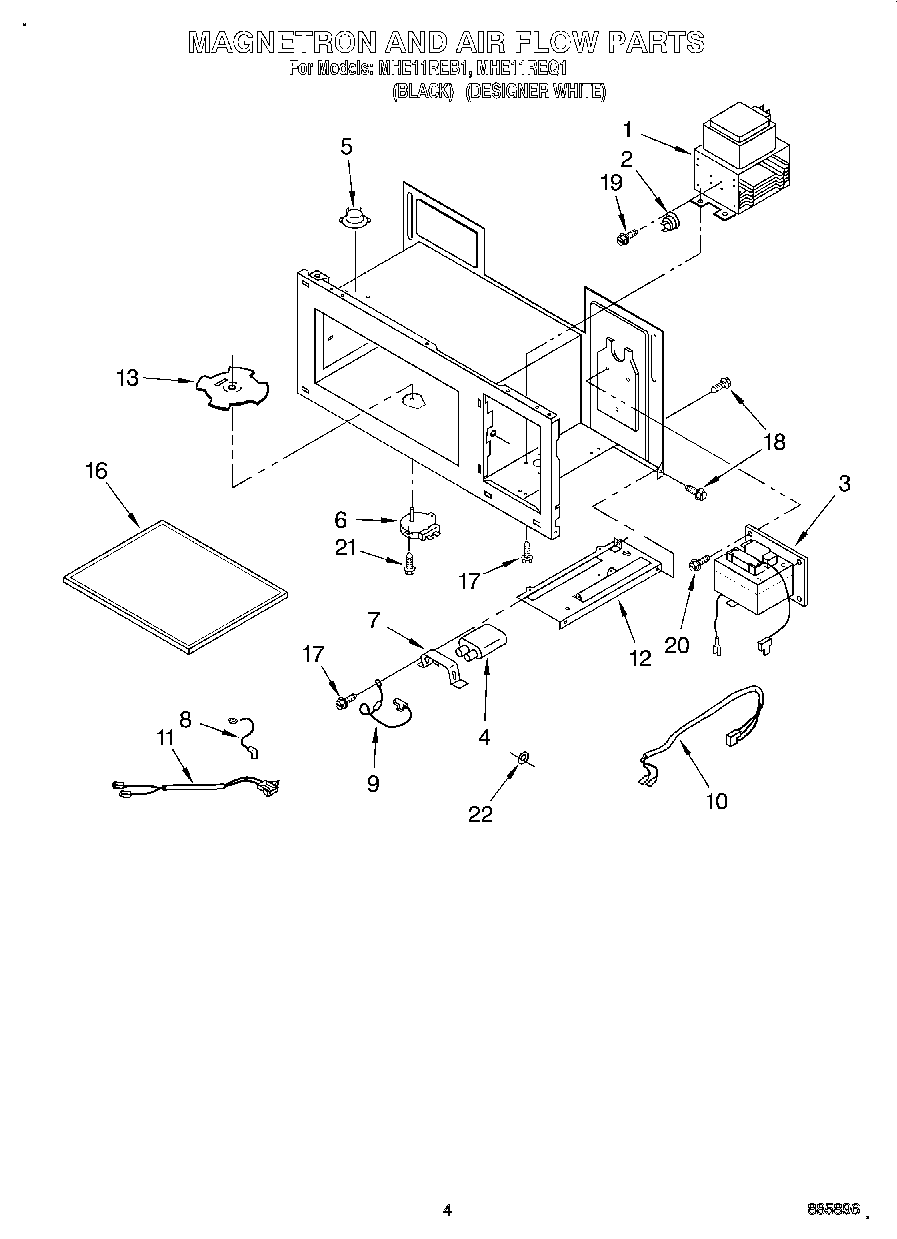

MHE11REQ1 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnatron
2	Thermostat
3	Transformer
4	Capacitor
5	W10864742 Whirlpool Microwave Thermostat Fix
6	Motor
7	Bracket, H.V.C.
8	H.V. Cable
9	H.V. Diode-Cable
10	Lead Wire
11	Lead Wire
12	Plate, Bottom
13	Stirrer Fan Disk
16	Ceramic Plate
17	4344826 Whirlpool Refrigerator Screw
18	W11380570 Whirlpool Microwave Screw
19	Screw
20	WP3400094 Whirlpool Screw
21	Screw
22	Temp Hole Cap
