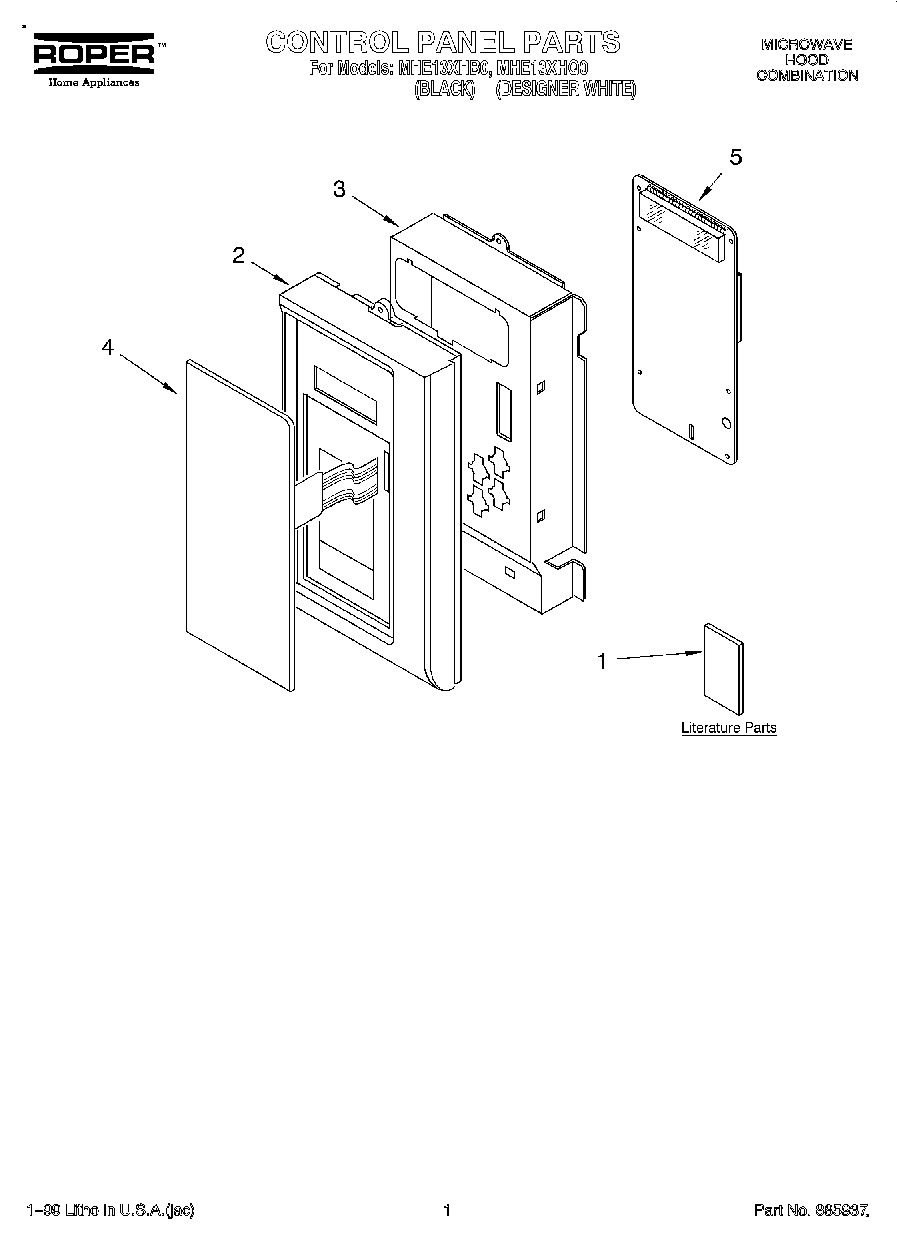

MHE13XHQ0 01 – CONTROL PANEL, LITERATURE

MHE13XHQ0 01 – CONTROL PANEL, LITERATURE

Written by

in

MHE13XHQ0 01 – CONTROL PANEL, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, U&C)
1Literature Parts (Guide, Cooking)
1Literature Parts (Tech Sheet)
1Instructions, Installation
2Control Panel (Black Model)
2Control Panel (White Model)
2Screw (Black Model)
3Bracket, Control
4Key Membrane (Black)
4Key Membrane (White)
5PCB Sub Assy.
5Screw
