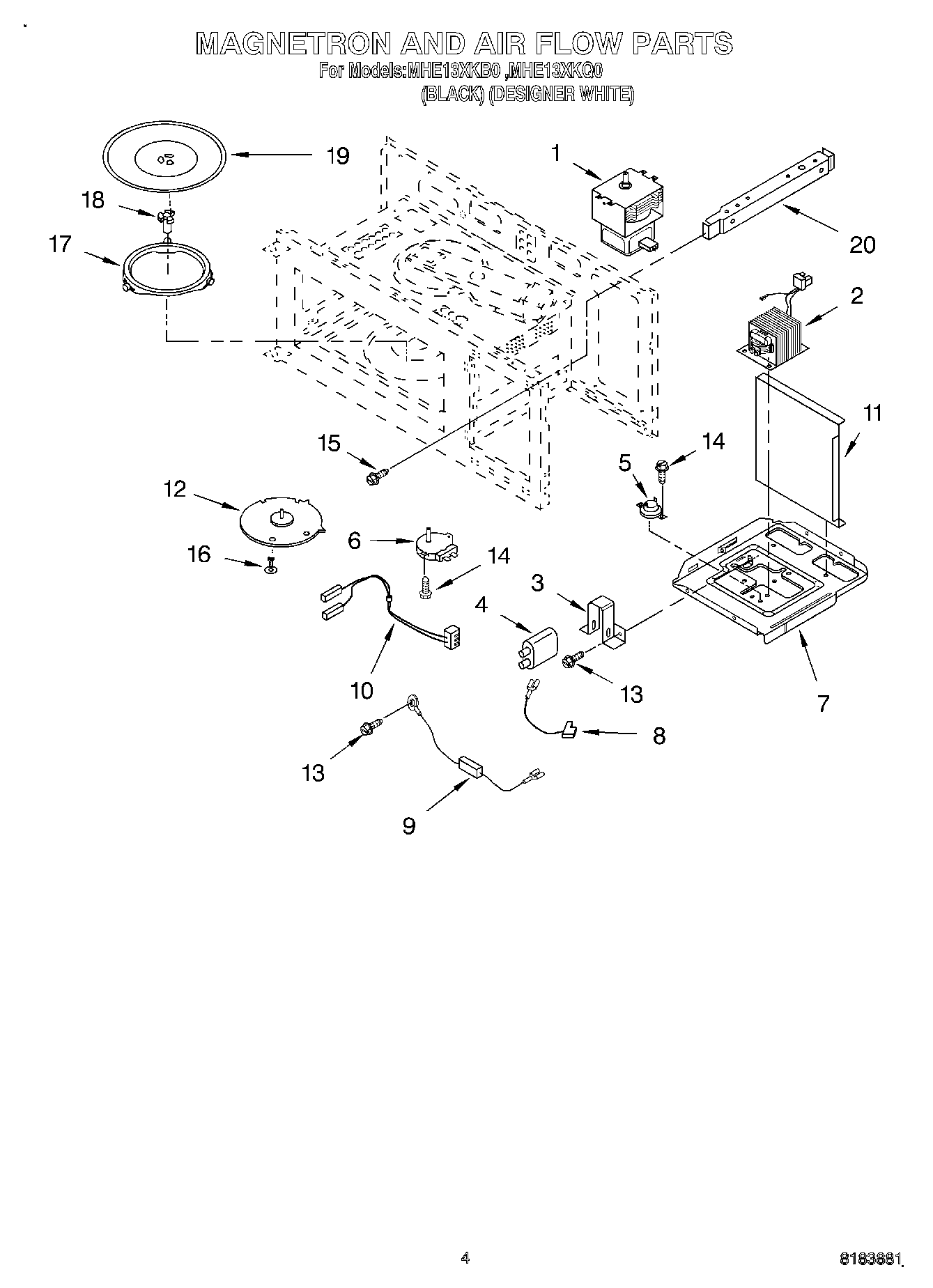

MHE13XKB0 04 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Magnetron
2	Transformer, H.V.
3	Bracket, H.V.
4	Capacitor, H.V.
5	W10864742 Whirlpool Microwave Thermostat Fix
6	Motor, Turntable
7	Plate
8	H.V. Cable Ass`y
9	WP8205489 Whirlpool Microwave Voltage Wire
10	Lead Wire
11	Guide
12	Cover
13	4344826 Whirlpool Refrigerator Screw
14	Screw
15	W11380570 Whirlpool Microwave Screw
16	WP4359508 Whirlpool Microwave Stir Rivet
17	Rotating Ring
18	Turntable Shaft
19	WP8172138 Whirlpool Microwave Cook Tray
20	Plate
20	Installation Hardware
20	WP482338 Whirlpool Refrigerator Adhesive
