MHE14XKQ0 04 – MAGNETRON AND AIR FLOW

MHE14XKQ0 04 – MAGNETRON AND AIR FLOW

Written by

in

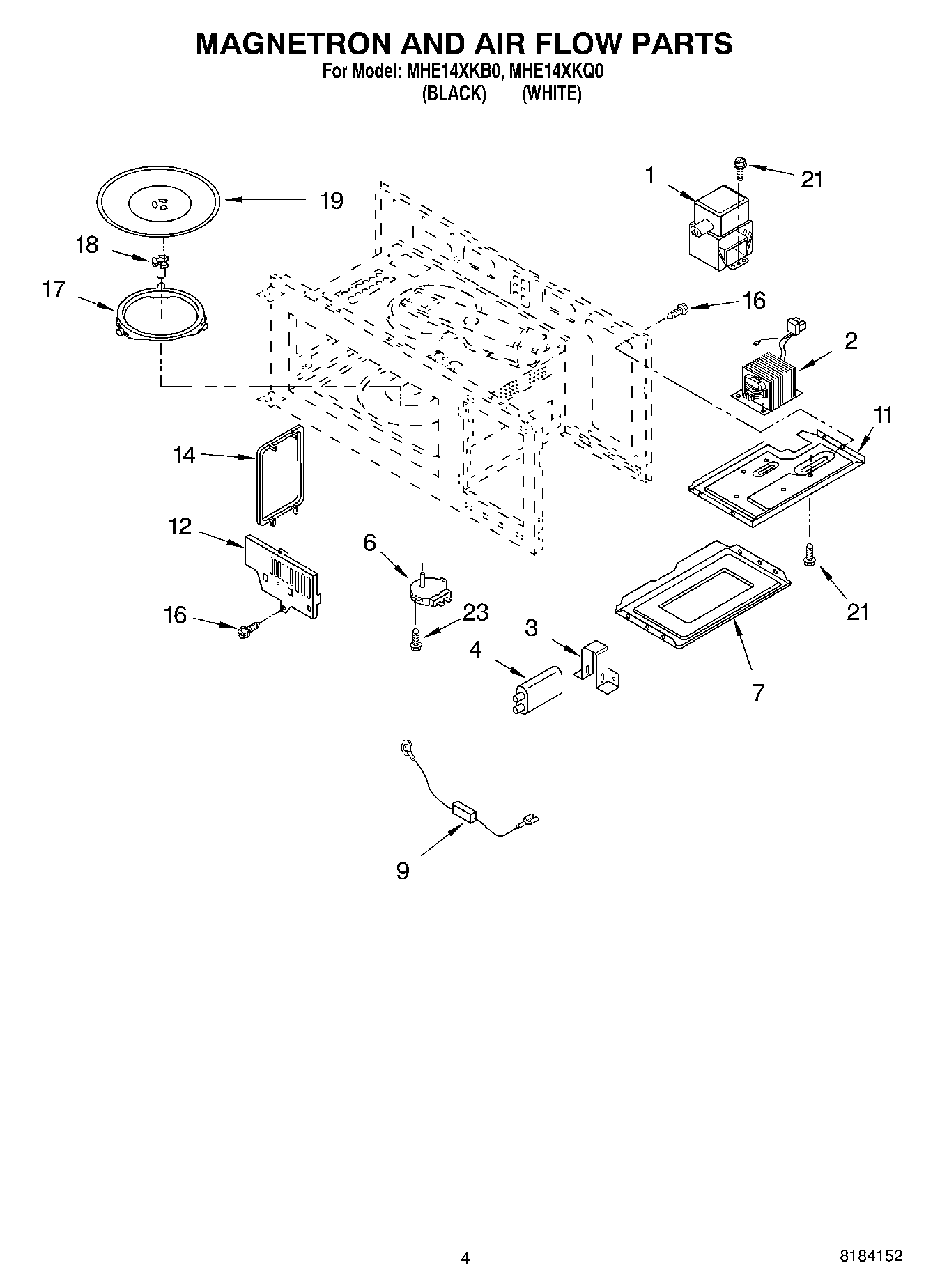

MHE14XKQ0 04 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1WP8205812 Whirlpool Microwave Magnetron
2H.V. Transformer
3Bracket, H.V.
4Capacitor, H.V.
6Motor, Turntable
7Plate
9WP8205489 Whirlpool Microwave Voltage Wire
11Plate
12Shield, Protector
14Canopy
16W11380570 Whirlpool Microwave Screw
17Rotating Ring
18Turntable Shaft
19WP8172138 Whirlpool Microwave Cook Tray
214344826 Whirlpool Refrigerator Screw
23Screw
